Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D
Contact Us
Video

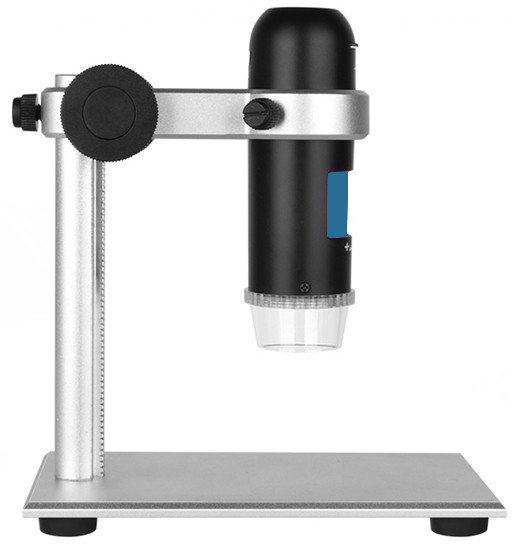

USB Digital Microscope with UV Light for Hair Scalp Analysis
All of Toproview USB digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
USB DIGITAL MICROSCOPE DESCRIPTION
Main Features:
* With UV light especially useful for skin, hair and scalp analyzer
* With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not
* Computer software with measurment function

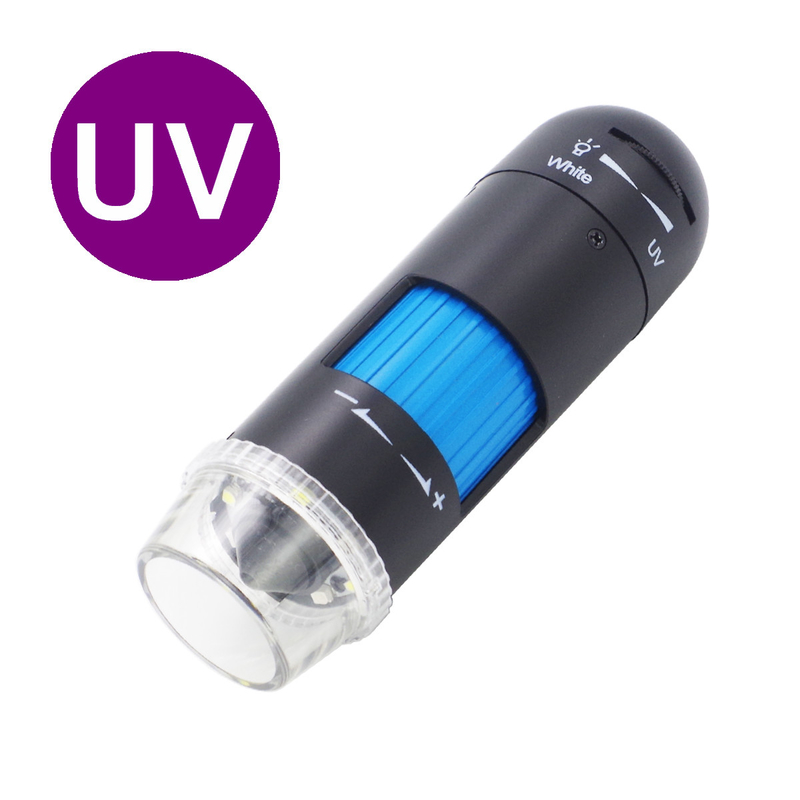

Model DM022D UV/IR Digital Microscope, 2MP, 10x-200x, 4 white LEDs, 4 UV LEDs or 4 IR LEDs light. For scientific and medical applications where UV or IR light is required. From white light to UV/IR light or from UV/IR light to white light, just to turn the LED dimmer and you will get what you want.
The light source of this model is white light+UV light individually, or white light+IR light individually. If there is the requirement of 3 lights(white light+UV light+IR light) together, let us know, we would offer the solution accordingly!
USB DIGITAL MICROSCOPE SPECIFICATIONS
| MODEL | Model Name | DM022D |
| Connection | USB 2.0 to PC | |
| OPTICS | Polarizer | No |
| Magnification | Real 10x~200x(ba |
|
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm | |
| Illumination | Dimmable LED ring illuminator (4pcs white + 4pcs purple 400nm LED) | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max. fr |
25fps@2MP | |
| FEATURES | Software | DigiCapture Pro for Windows/MacOS |
| Measurement function | Yes | |
| Certification | CE/FCC/RoHS | |
| PHYSICAL | Dimensions | 166x45x40mm |
| Gross weight | 0.2kg | |
| Stand | Comes with me |
USB DIGITAL MICROSCOPE APPLICATIONS
Wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
• Crime Investigations
• Graphology
• Mineralogy
• Skin, hair and scalp inspection
• Jewelry and watch repair
• Museums and Restoration
USB Digital Microscope Packing ways:
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
Packing way with customization availble.
Accessories for neutral products:
USB cable,CD,calibration ruler,metal or acrylic stand
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
