Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us
Video

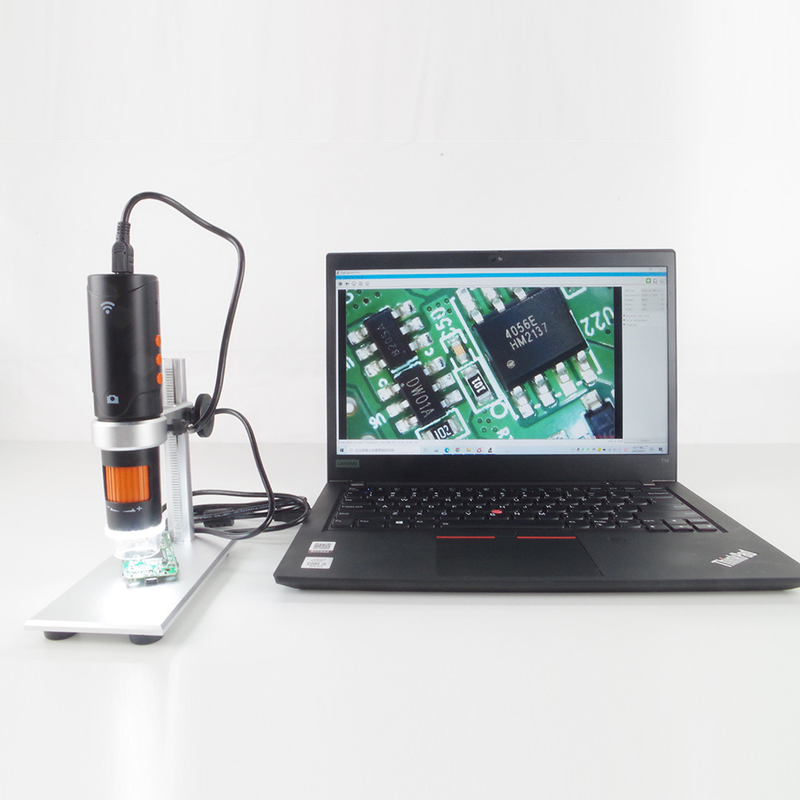

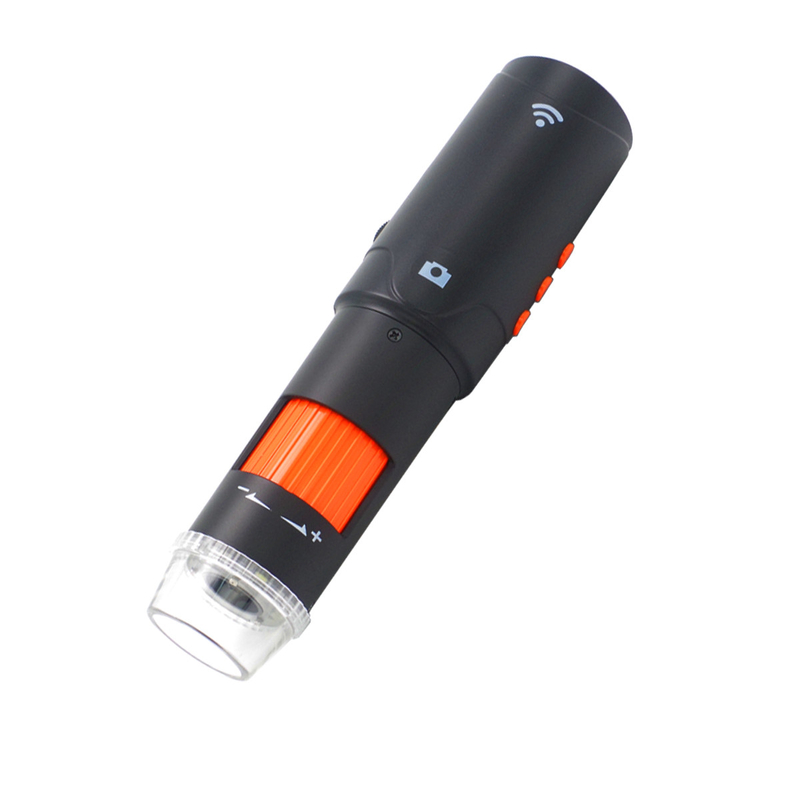

WiFi and USB Connection Compatible USB Digital Microscope with Polarizer Filter
Quick Details
* DM023A portable digital microscope, which is without cable needed and allows users to carry to use anywhere, to capture image content and storage easily for reference. It enhances the users’ experience, especially for collectinghobby. Such as: coins, stamps and antique collectors and lab engineer, children's microscopic experience exploration tools.
Main Features
With rechangeasble 18650 battery, you can change the battery easiliy and make your microscope the longer working life.
With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop;
SPECIFICATION
| MODEL | Model Name | DM023A |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | Polarizer | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable white LED | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later, Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10,macOS 11.2.1 or above | |
| Capturing by microscope | Yes, with recording button on microscope | |
| Recording by microscope | Yes, with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | Metal stand for neutral product; support to customize |
FAQ
Q: What's polarizer feature for digital microscope?
Toproview: This is the new technology in current digital microscope field. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.

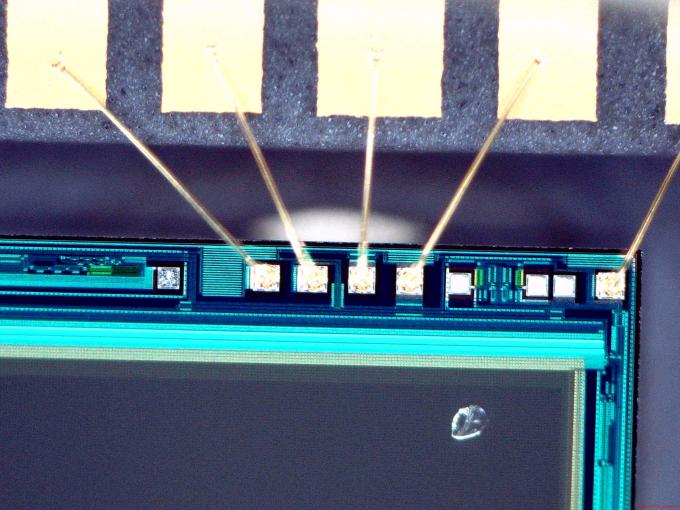

After adusting polarizer

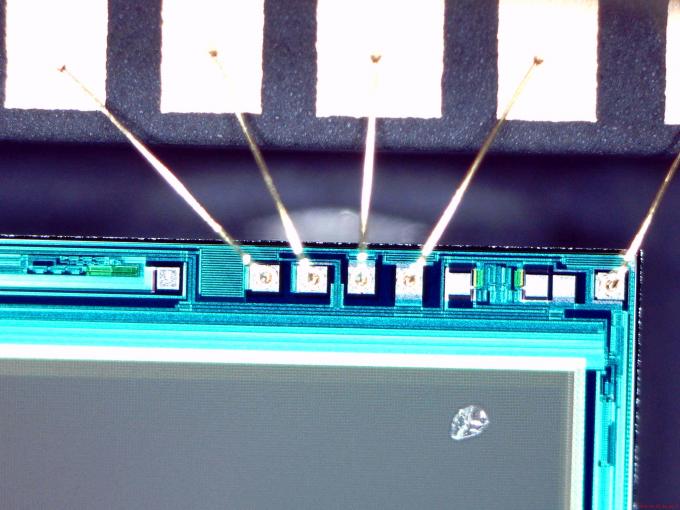

Before adjusting polarizer
PACKING WAYS
Neutral product with individual box, 16pcs per carton.
According to export standard packing.
