Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us
Video

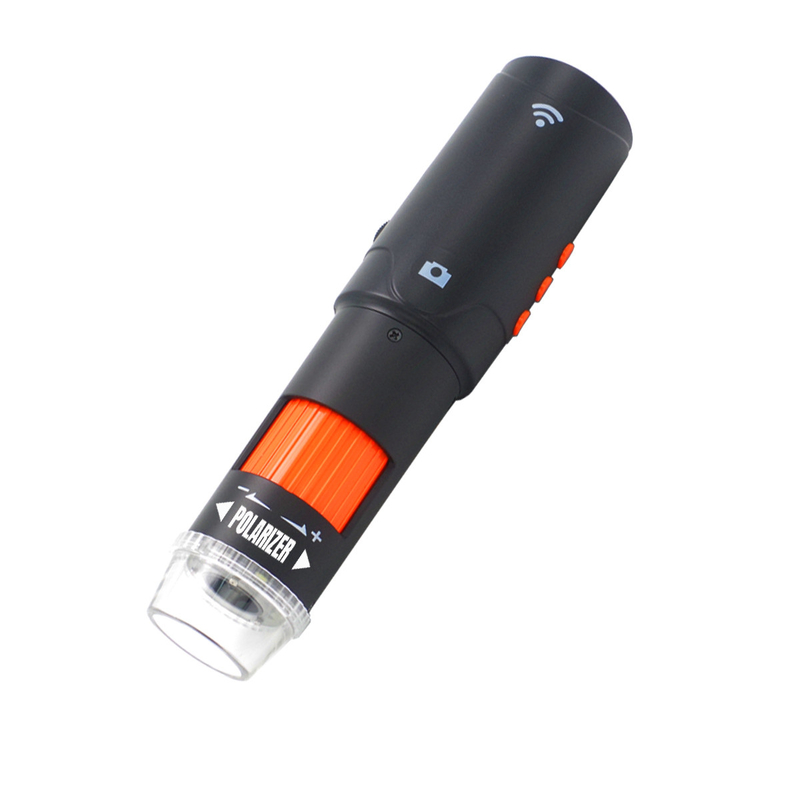

Handheld USB Digital Microscope Support WiFi Output for All Kinds of Smart Devices
Main Features
With polarization filter to check reflective surface
* Image and video resolution: 1920x1088/1280x720/864x480.
* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,
* With recording button on microscope, allows to check the playback recording video on both smart devices APP and computer software.
* Digital zoom by microscope is available, user can zoom out or zoom in to see the partial view with this function.
* With SD card slot on microscope body, support SD card storage up to 32G. User can use the microscope with or without SD card inserted. The SD card slot is designed for people who is required the data transmission but not in the good network status.
SPECIFICATION
| MODEL | Model Name | DM023A |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | Polarizer | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable white LED | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later, Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10,macOS 11.2.1 or above | |
| Capturing by microscope | Yes, with recording button on microscope | |
| Recording by microscope | Yes, with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |

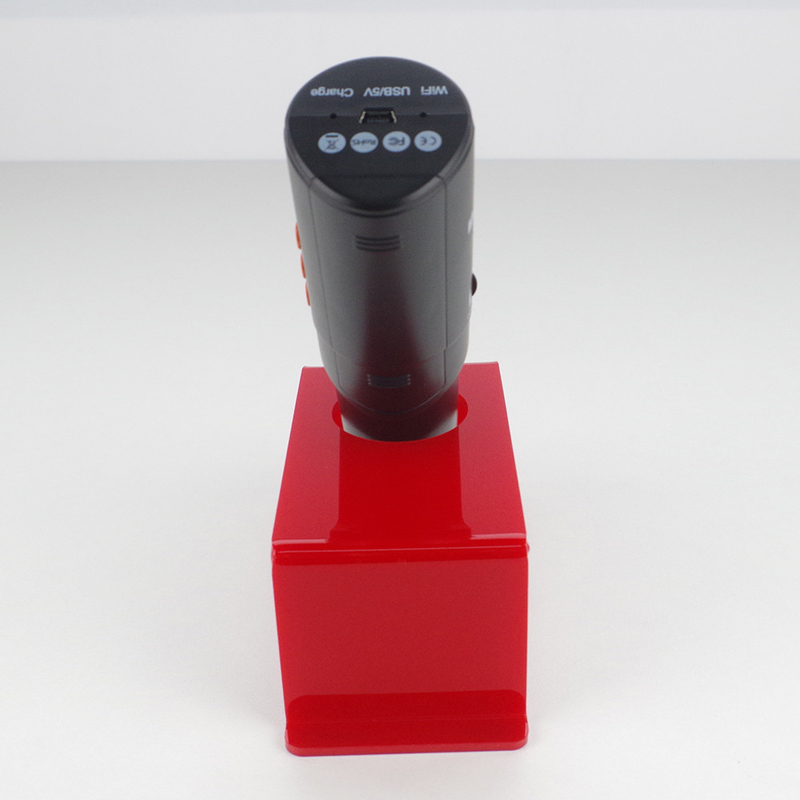

| Stand | Metal stand for neutral product; support to customize |
APPLICATION
* New technology for USB digital microscope - microscope with polarizer. When used with the polarizer, users are able to detect mechanical stress, as well as identify optically anisotropic materials. Toproview polarizing microscopes are used in a wide range of fields, including forensics, manufacturing, health, mineralogy, research, and biology.

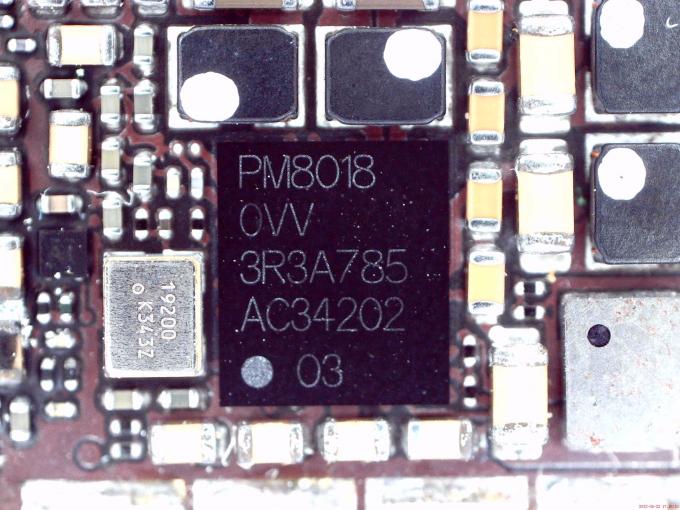

After adjusting polarizer

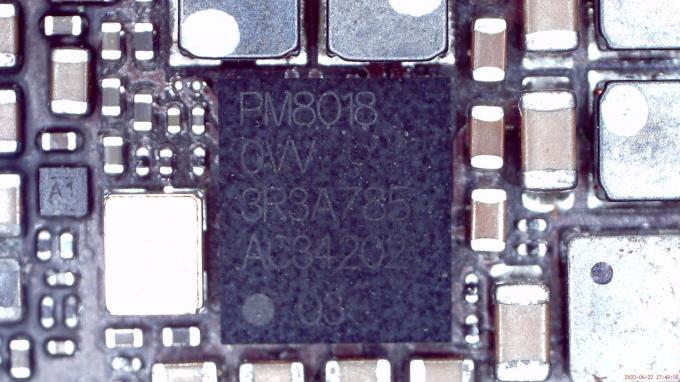

Before adjusting polarier
FAQ
Q: What's polarizer feature for digital microscope?
Toproview: This is the new technology in current digital microscope field. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
