Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us
Video

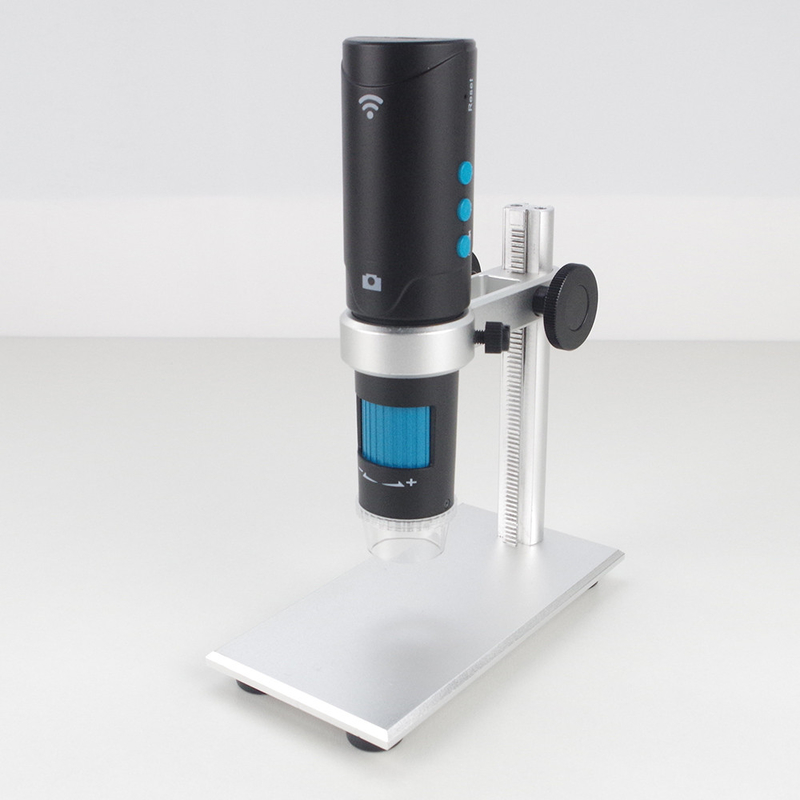

Special Lighting UV WiFi Digital Microscope Works with iPhone iPad Samsung Android Phone
Quick Details
With UV light especially useful for skin, hair and scalp analyzer.
With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.

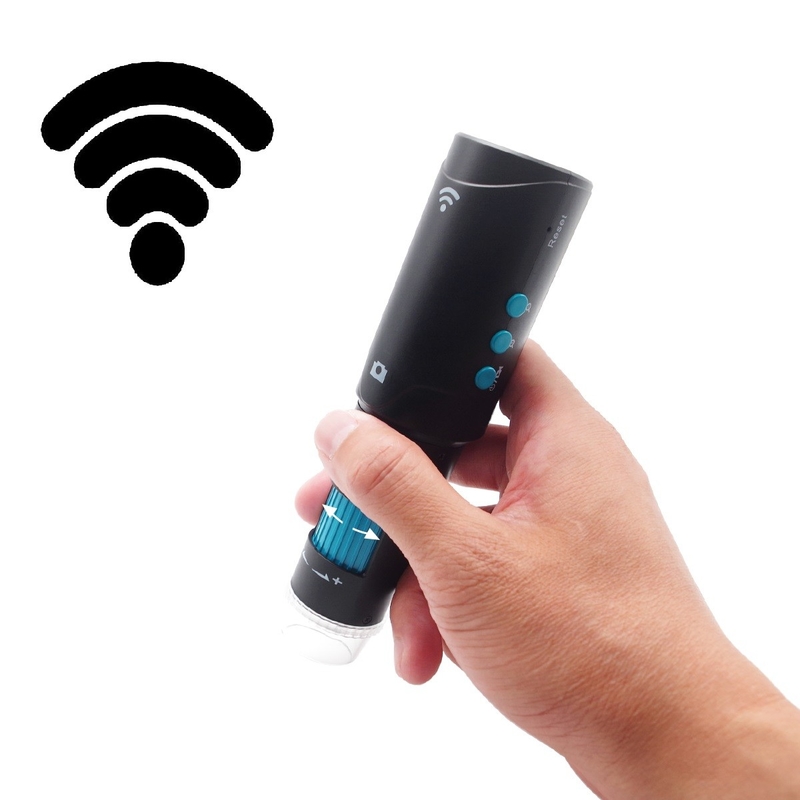

WIRELESS MEANS MORE - 'Cut the cord' and use an UV digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.
SPECIFICATION
| MODEL | Model Name | DM023B |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | UV light | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable LEDs(white + purple) | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10macOS 11.2.1 or above | |
| Capturing by microscope | Yes with recording button on microscope | |
| Recording by microscope | Yes with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |

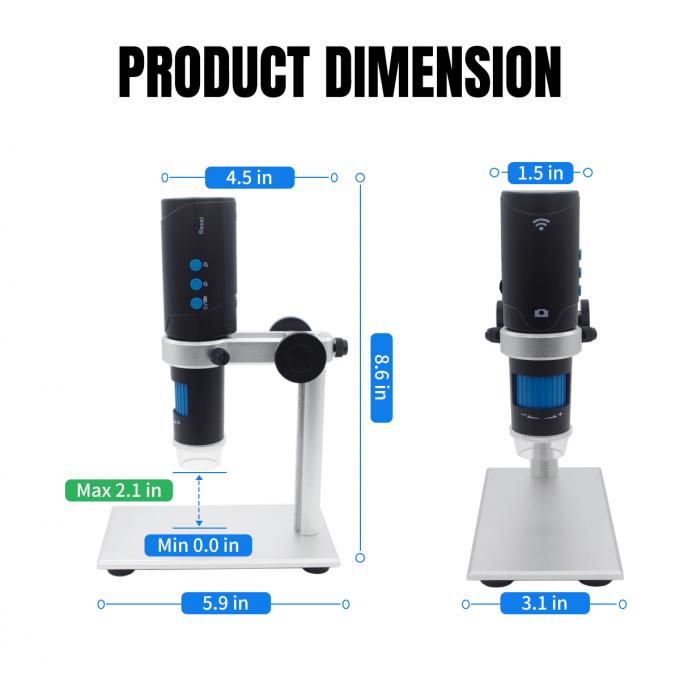

| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | metal stand for neutral product; support to customize |
APPLICATIONS
* Skin and hair status confirmation
* Graphic design and printing inspection
* Laboratory and classroom research
* Field use for agricultural close quality control
* Fiber and textiles check
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
We are with the strong Research and Development ability. We warmly welcome customers to cooperate with us to develop new products.
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
