Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

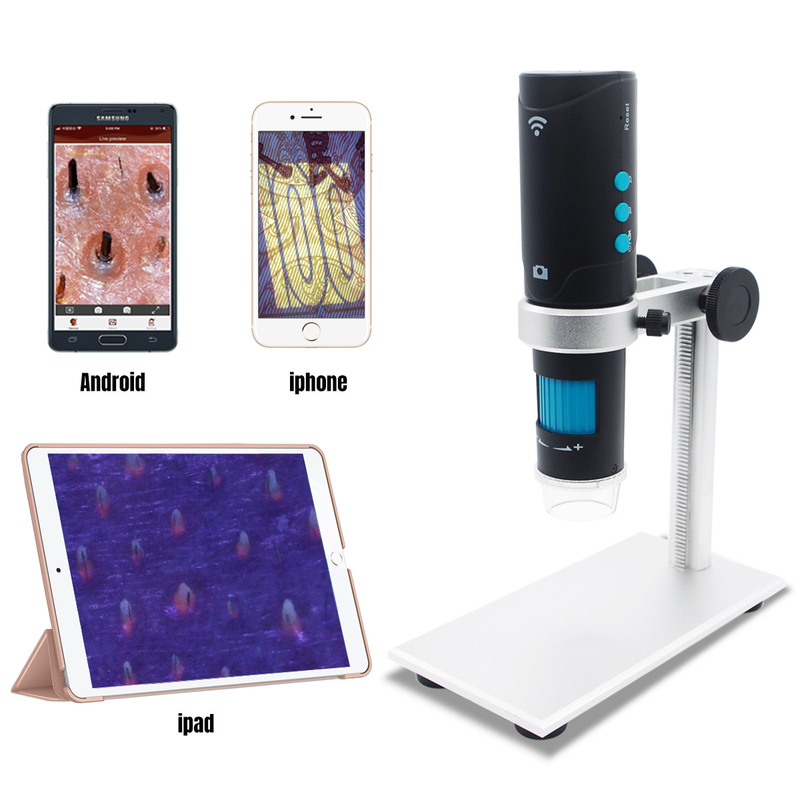

UV Illumiation Built-In Wireless Hair Scalp Detector for Clogged Pores Analysis
Main Features
* With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.
* Optional image and video resolution: 1080P, 720P, VGA
Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop.
* Supported operation systems for smart devices is iOS 12.0 or later, Android 4.2 or later. It wil compatible with at least 90% smart devices in the market.
* With recording button on Hair Scalp Detector, allows to check the playback recording video on both smart devices APP and computer software.
-Easy to connect by WiFi or USB
-High detail live inspections
-Use covers to set up different magnifications
-Up to 200x model
-Ready to use software for measuring.
-Hands free stands available separately
SPECIFICATION
| MODEL | Model Name | DM023B |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | UV light | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable LEDs(white + purple) | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10macOS 11.2.1 or above | |
| Capturing by microscope | Yes with recording button on microscope | |
| Recording by microscope | Yes with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | metal stand for neutral product; support to customize |
APPLICATIONS
* Skin and hair status confirmation
* Hair Folicles, Hair Shaft etc.,
* Scalp, Spa & Beauty
* With UV light to see hair follicle easily
