Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us
Wireless Smart Phone Digital UV Light Microscope for UV Pore Mole Test
Main Features
* Optional resolution from FHD(1920*1088), HD(1280*720) to VGA(864*480), are both available on mobile(Android and iOS stystem) and PC(Windows and MacOS system).

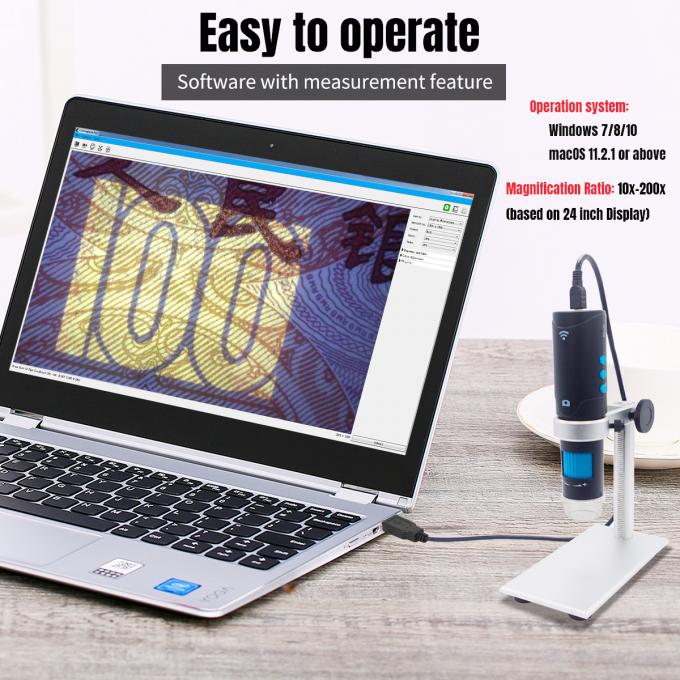

* Supported operation systems for computer is Windows 7/8/10,macOS 11.2.1 or above. No matter you are working with your Windows notebook, laptop or apple Macbook, you will make it easy to work with the microscope. The attached software is also with the powerful measurement function, you can not only take some capture, video but also allow to do some measurement and text record.
* With capture microtouch on microscope, different from the traditional capture press button for other wireless digital microscope in the market, this model allows user to take capture by touch the “microtouch” to avoid the fuzzy captures by trembling.
* With recording button on microscope, allows to check the playback recording video on both smart devices APP and computer software.
PRODUCT ADVANTAGE
* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATIONS
* Skin and hair status confirmation
* Graphic design and printing inspection
* Art appreciation and authentication
* Electronic boards and device inspection
