1080P HDMI High Resolution Digital Microscope With 12MP 4.3 Inch Adjustable LCD Screen For Video Recorder And SMD Phone Repairing
1: This digital microscope is with 4.3 inch big LCD screen bright and good resolution and large enough and has excellent image quality.
2: To get the clear image, adjust the distance between lens and objects by knob on bracket, rotate the focus controller as well.
Product Specification:
| Model | Model Name | DM042 |
| Features | Screen Size | 4.3 inch |
| Connection | 4.3 inch LCD / USB 2.0 to PC / HDMI Port To Monitor / TV Port To Monitor | |
| Image Sensor | 5 Megapixel 1/2.8" CMOS Image Sensor | |
| Photo Resolution | 12MP / 10MP / 8MP / 5MP / 3MP / 2MP | |
| Video Resolution | 1920*1080 / 1280*720 | |
| Magnification Ratio | Real 10x~250x, Up To 1200x By Digital Zoom(Based On 21 inch Display) | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 55mm on metal stand | |
| Lens Type | Optical Glass | |
| Advantage | Switchable Polarizer | Yes |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Focus Mode | Manual Continuous Focus | |
| Rechargeable And Replaceable Battery | 1050mAh BL-5C Lithium-Ion | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | PC Software | DigiCapture Pro (Customizable) |
| PC Software Supported Operation Systems | Windows 7 / 8 / 10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB Cable,HDMI Cable,TV Cable,Rechargeable Battery,Calibration Ruler, Metal Stand |
| Body Dimension | 235x123x65mm | |
| Gross Weight | 0.2KG | |
| Gift Box | 27.5*18.5*10.5cm | |
| Gross Weight | 0.85KG | |
| Carton Box | 46.5*33*37.5cm | |
| Gross Weight | 14.7KG | |
| Carton | 16Pcs |
Product Advantages:
1: The big display can give you larger and broader view.
2: This microscope parts are made of the metal materials, oxidation-resistant,durable, every helpful when doing soldering work.

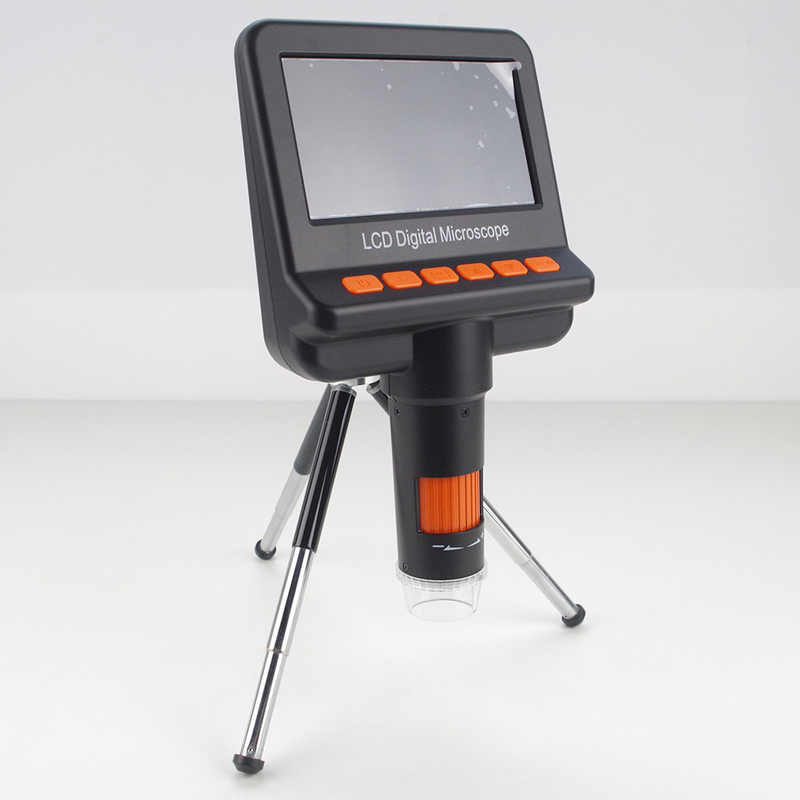

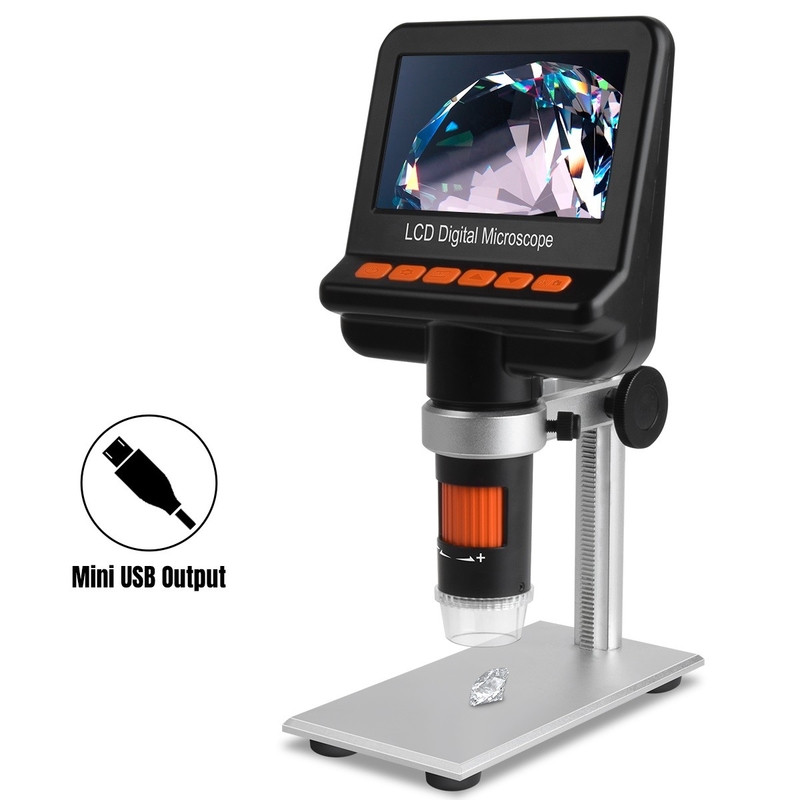

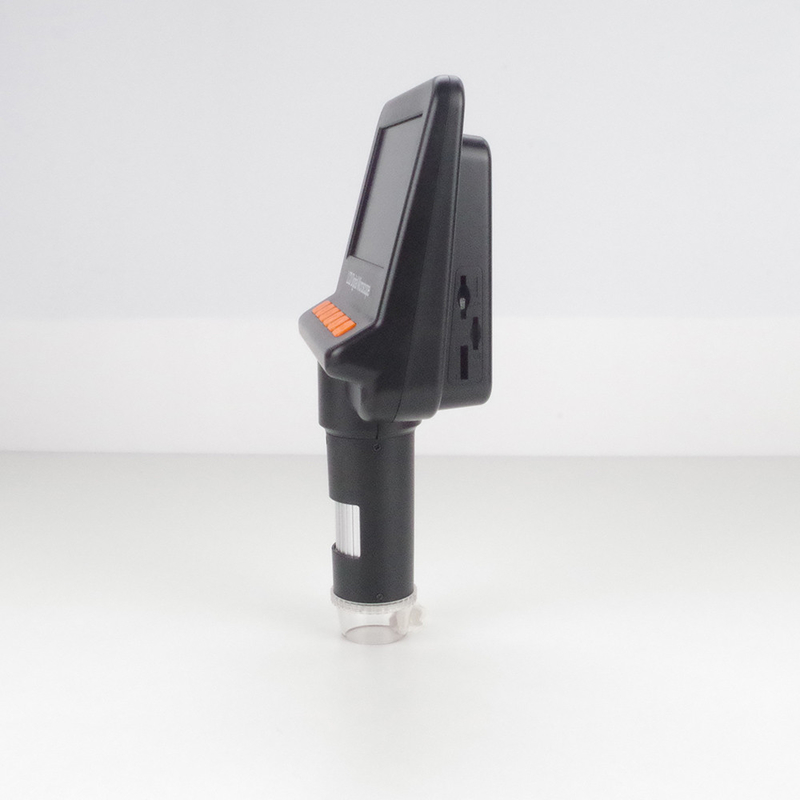

Product picture:
