400nm UV Multifunctional Digital Microscope 2MP Usb Magnifier For Computer

400nm UV Multifunctional Digital Microscope 2MP Usb Magnifier For Computer

400nm UV Multifunctional Digital Microscope

Multifunctional Digital Microscope 2MP

2MP Usb Magnifier For Computer

Place of Origin:

China

Brand Name:

Toproview/Neutral/Customization

Certification:

CE/FCC/RoHS

Model Number:

DM022D(400nm)

Contact Us

Request A Quote
Product Details
Model Name:
DM022D(400nm)
Adjustable Maginification:
10x ~ 200x (on 21''monitor)
Sensor Resolution:
2M Pixels (1920*1080)
Body Dimension:
110x35x25mm
Max. Frame:
30fps At 2MP
Type:
Skin Analyzer
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral/Customization Giftbox/16pcs per carton
Delivery Time
5~35 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
50000pcs/month
Product Description



400nm LED UV Digital Microscope USB Compatible with Macbook and Windows Computer



Quick Details

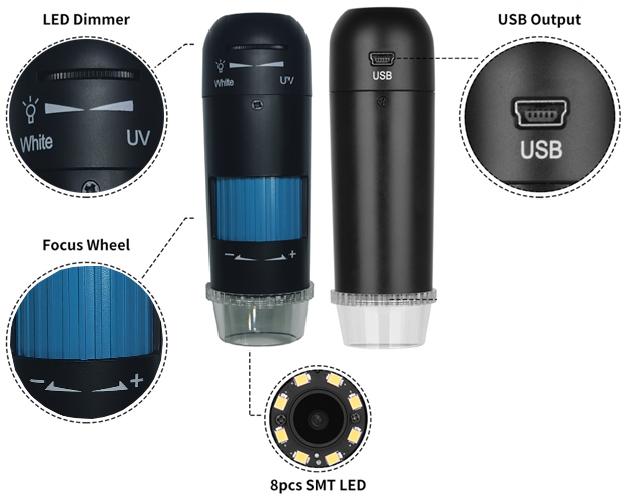

* Model name: DM022D UV400nm with Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs.

* With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.

Model DM022D UV Digital Microscope with real 2MP, 10x-200x, 4 white LEDs, 4 UV LEDs light. With wide usage for scientific and medical applications where UV light is required. From white light to UVlight or from UV light to white light, just to turn the LED dimmer and you will get what you want.



Main Fetures

* Computer software with measurment function.

* 16 languages are available for PC measuring software.

* Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs (Model name: DM022D UV400nm)

* Optional resolution is from VGA, 720P, 1080P

* Adjustable magnification is from real 10x ~ 200x, normally we consider this magnification based on 21''monitor.

* Max. Frame up to25fps@2MP, live viewing and recording videos will be super smoothly.

PRODUCT SPECIFICATIONS

MODEL

Model Name

DM022D(400nm)



Connection

USB 2.0

OPTICS

Polarizer

Yes



Magnification

10x~200x



Lens type

Optical glass



Focus range

Manual focus 0~110mm



Illumination

8 adjustable LED(4pcs UV+4pcs white)

SENSOR

Sensor type

CMOS



Size

2 megapixel



Resolution

2M pixels (1920*1080)



Frame rate

30 fps at 2MP output

FEATURES

Software

DigiCapture Pro for
Windows/MacOS



Measurement function

Yes



Certification

CE/FCC/RoHS

PHYSICAL

Dimensions

18*34*30cm



Gross weight

0.2kg



Stand

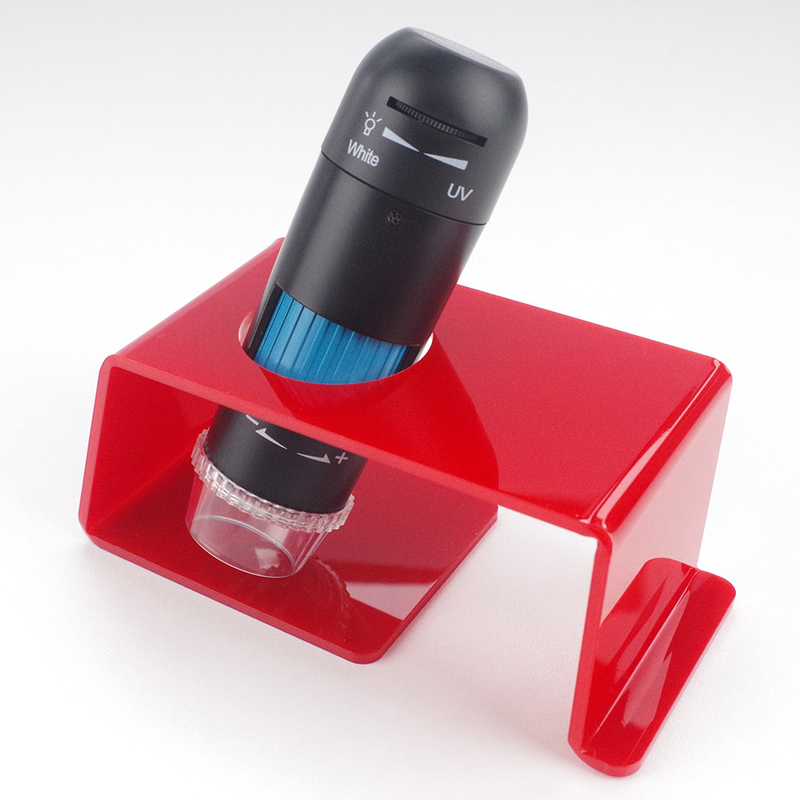

Comes with metal stand



400nm UV Multifunctional Digital Microscope 2MP Usb Magnifier For Computer 0

400nm UV Multifunctional Digital Microscope 2MP Usb Magnifier For Computer 1

Applications

Wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
