Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D(400nm)
Contact Us

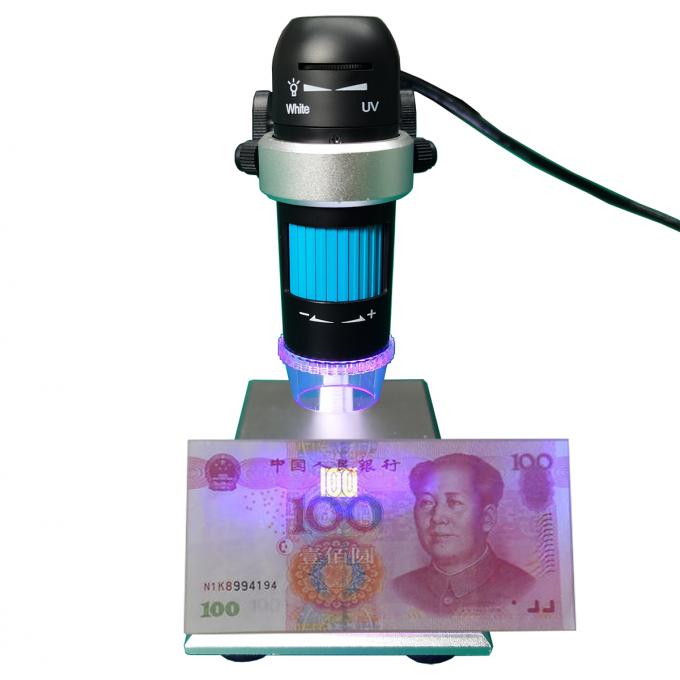

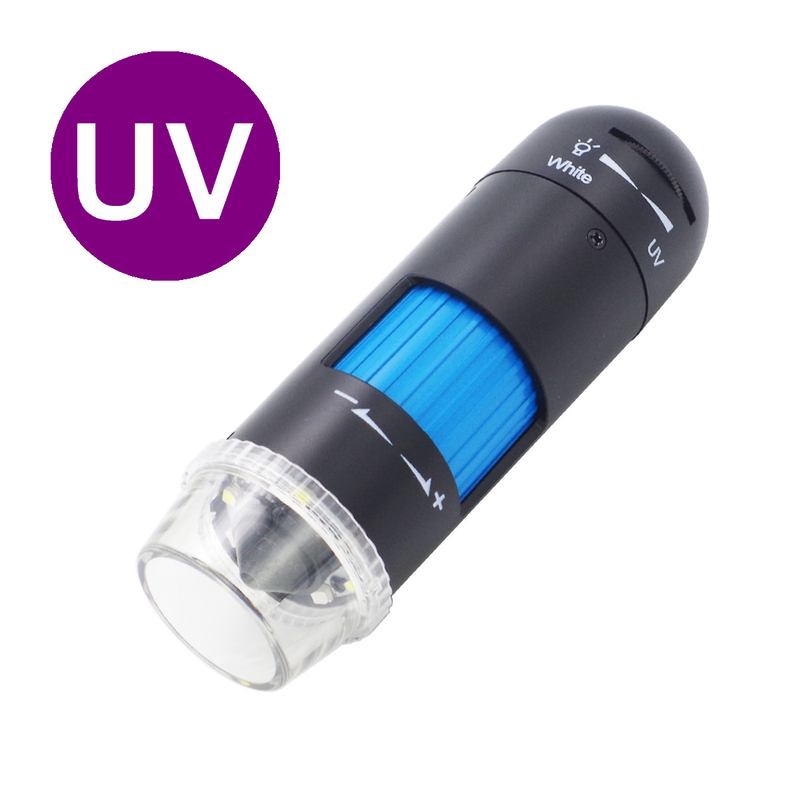

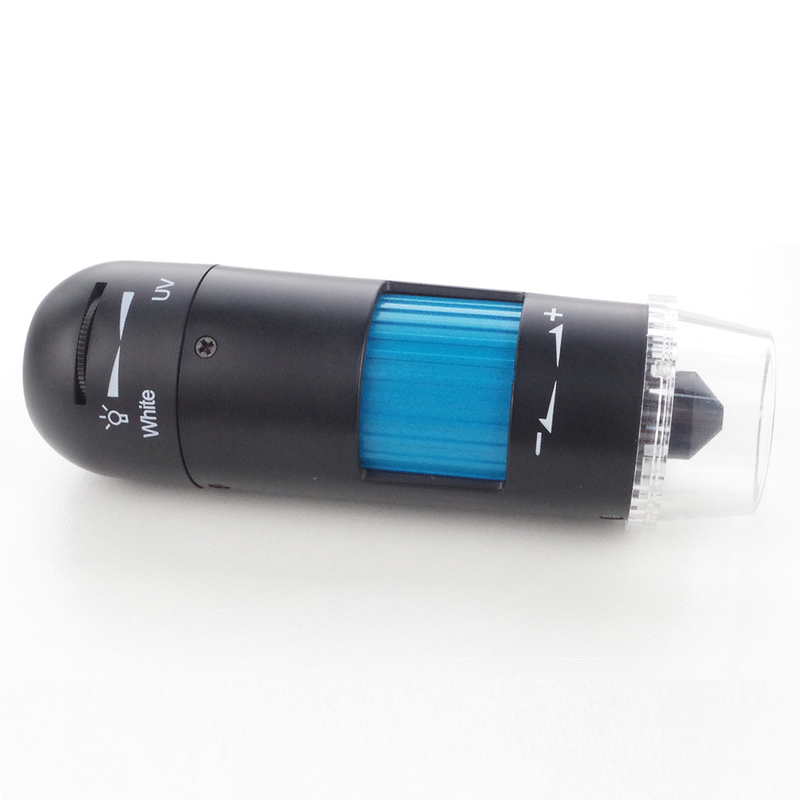

2M Pixels UV Light Digital Microscope with UV LED Ring Illuminator for Skin Hair Inspection
Quick Details
A digital dermatoscope (also known as dermoscope or microscope) is an essential tool for providing patients with optimized patient care, and high resolution imaging to better track any changes and promoting the early detection of skin cancer and other conditions.
Toproview model DM022D is with adjuatble 400nm UV light buitd in, will do the great job espeically for the problem skin like inflammation, blocked hair follicle, precipitated pigment etc.,
Model name: DM022D UV400nm with Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable UV LEDs.
Quick Advantage
-High detail live inspections
-Use covers to set up different magnifications
-Up to 200x model
-Ready to use software for measuring.

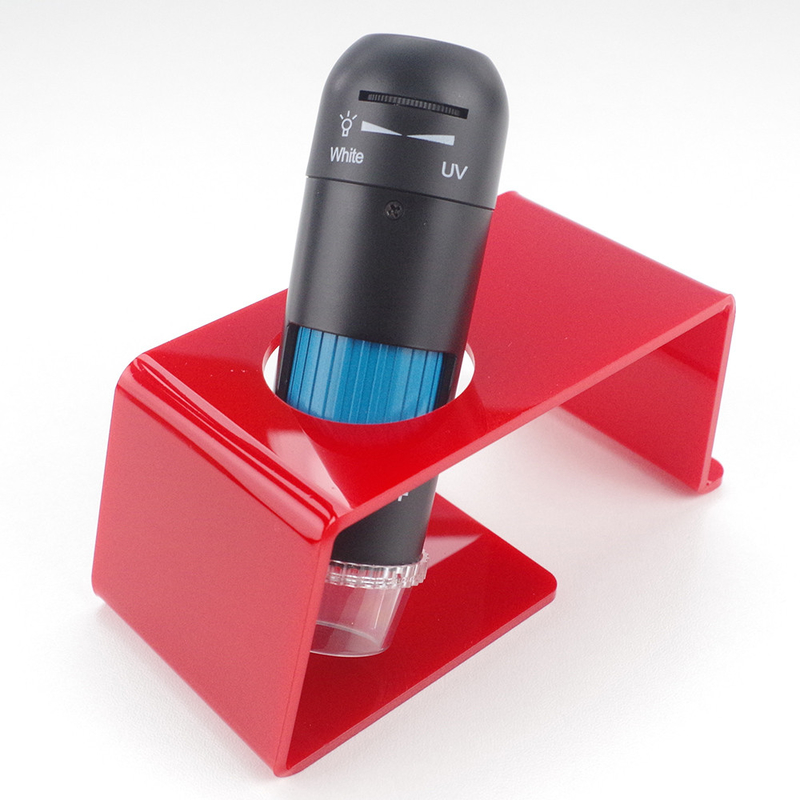

-Hands free stands available separately
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(400nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs UV+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
Applications
Wide application field for UV type digital microscope:
• Skin, hair and scalp inspection
• Crime Investigations
• Graphology
• Mineralogy
• Jewelry and watch repair
• Museums and Restoration
FAQ
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
Q:Why choose Toproview microscopes?
Toproview: Professional yet affordable
