Microsoldering Polarizer LCD Digital Microscope with Real 250x 5MP High Quality Image
PRODUCT DESCRIPTION
Main Features
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* Polarizer build in: allows to reduce reflection, very useful for observing objects with shiny surface like diamond, jewelry, metal etc.,
* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.
Quick Details
Equipped with 5 mega pixels HD sensor and industrial lens, Toproview DM042 3D HDMI Digital Microscope features 4.3 inch screen, enabling users to view parts and components of the PCB clearly so as to improve the precision and efficiency of their soldering and repair work.
With multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |

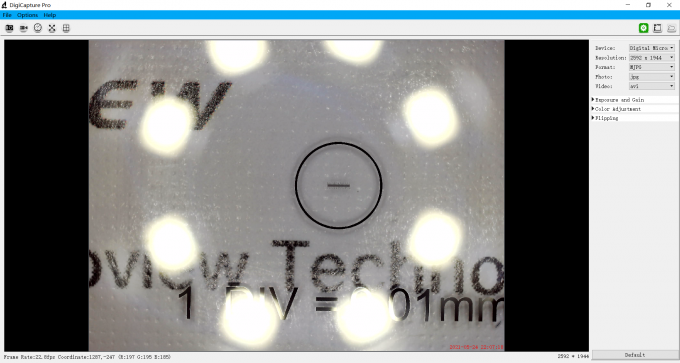

Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
Packing ways
Neutral product with colorful gift box, 16pcs per carton.
According to export standard packing.
Packing way with customization available.
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
