Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM042
Contact Us

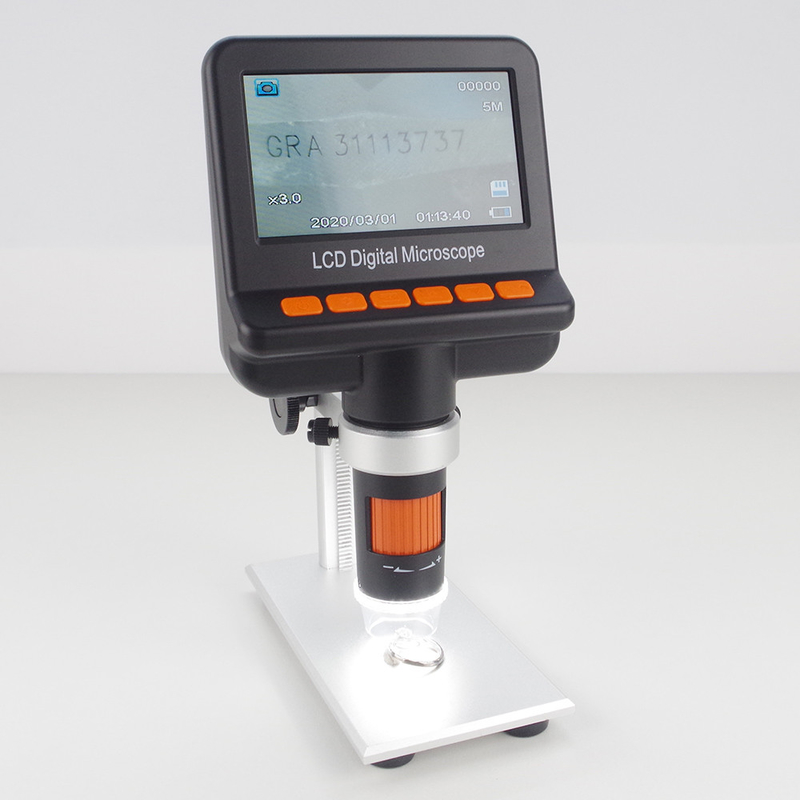

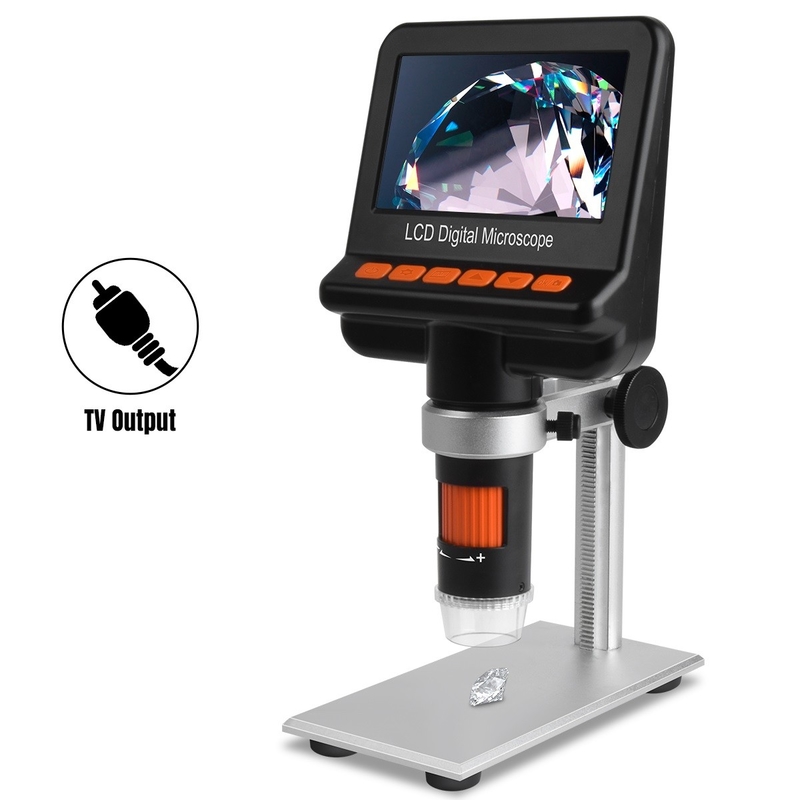

Advanced Diamond Digital Microscope LCD Monitor 250x Magnification 5MP High Resolution
PRODUCT DESCRIPTION
Main Features

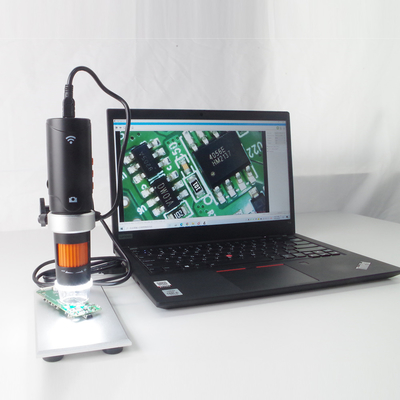

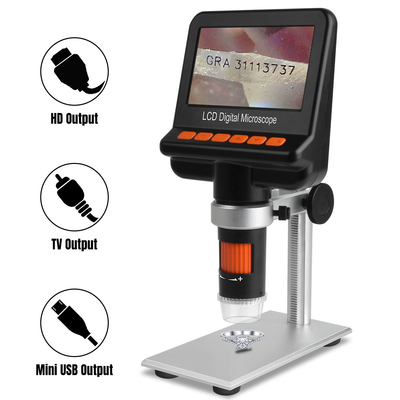

* Multifunctional connection type: supports output through USB port to PC; HDMI port to HD monitor; TV port to monitor. Also allow to work with the LCD screen directly, can take photo, video and playback etc., without any connection.
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* High magnification: real 250x and up to 1200x by digital zoom.
PRODUCT ADVANTAGE
New technology for digital microscope - Polarizer.
Polarized light microscopes can create different polarization configurations that depend on the relative orientation between polarizers: parallel polarization is for polarizers that are oriented parallel to each other, and cross polarization is the configuration for polarizers that are oriented perpendicular to each other. Depending on the polarization configuration and the interaction of incident light with the target, light will be transmitted or blocked. In this case, users can get the clear and without reflection light observation with this Toproview new technology LCD digital microscope.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
Packing ways
Neutral product with colorful gift box, 16pcs per carton.
According to export standard packing.
Packing way with customization available.
