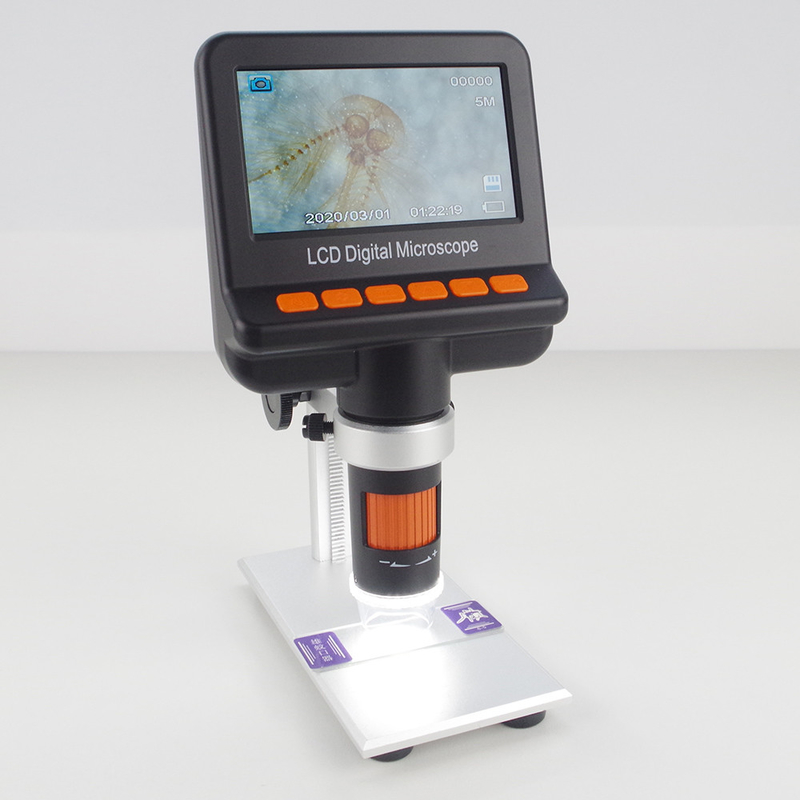

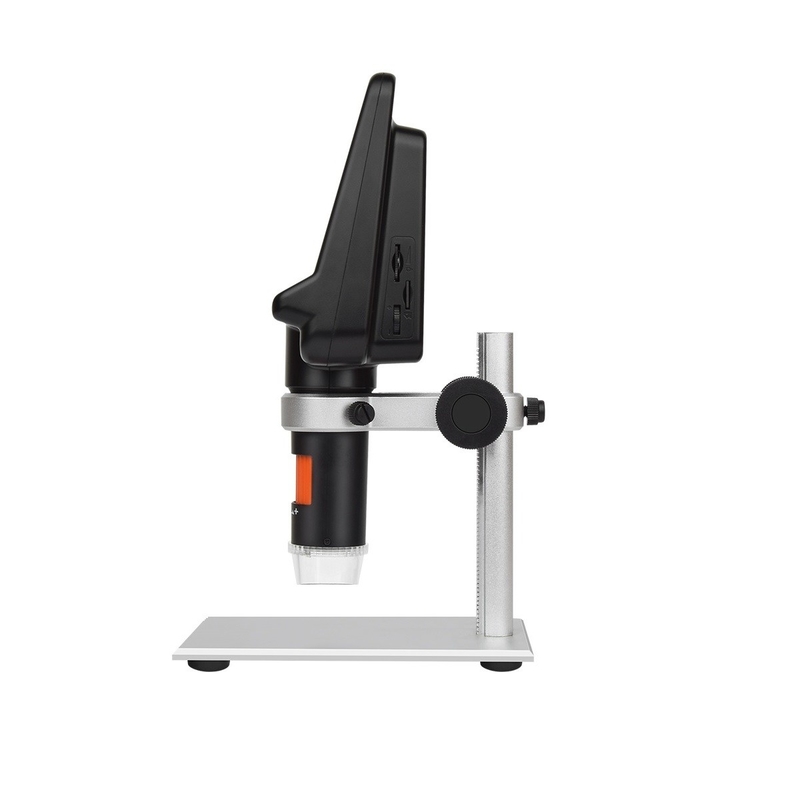

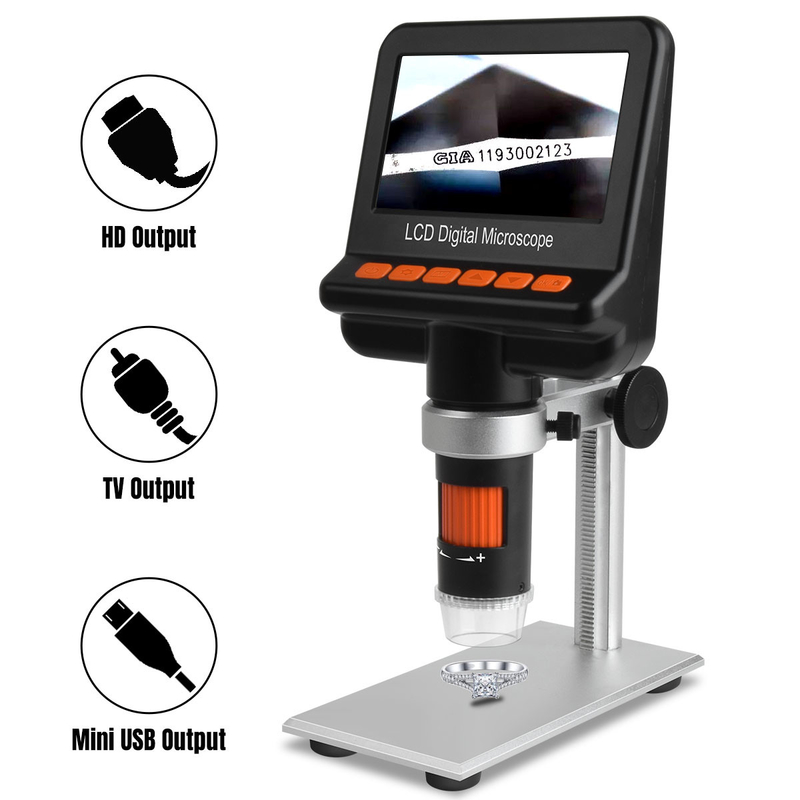

HD 2MP Digital LCD Gem Microscope with 4.3 inch Screen Monitor 150x Magnification
PRODUCT DESCRIPTION
Quick Details
DM041 is the polarizer type LCD digital microscopes, the built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. It supports to see the live viewing, capture, recording by the device itself; also supports to connect to Windows, Mac computer or laptop through USB cable, the attached PC software is with powerful functions like measurement, capture, recording video, and support 4 screens/devices working together in the same interface, which makes it easy to compare the objects.
PRODUCT ADVANTAGE
New technology for digital microscope - Polarizer.
An innovative technology for the digital microscope called Polarizer was developed by our R&D team after the long time research and development, and this technology was used to all of our digital microscopes models. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM041 |
|
|
Connection |
USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~150x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Fr |
25 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
After adjusting polarizer
Before adjusting polarizer
Packing ways
Neutral product with colorful gift box, 16pcs per carton.
According to export standard packing.
Packing way with customization available.
