Place of Origin:
Shenzhen , China
Brand Name:
Neutral / Customization
Certification:
CE / FCC / RoHS
Model Number:
DM023B
Contact Us

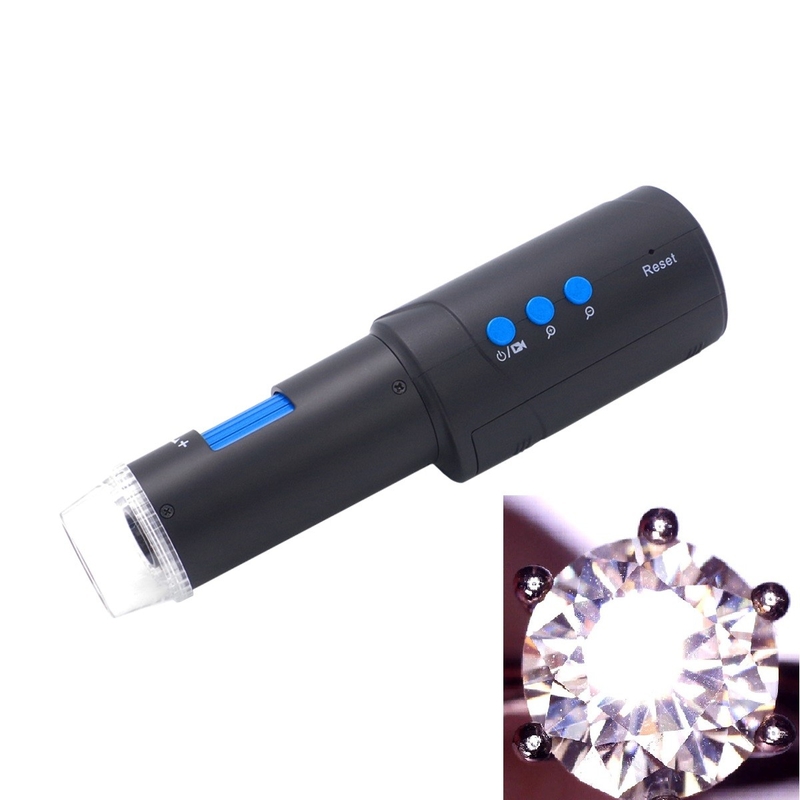

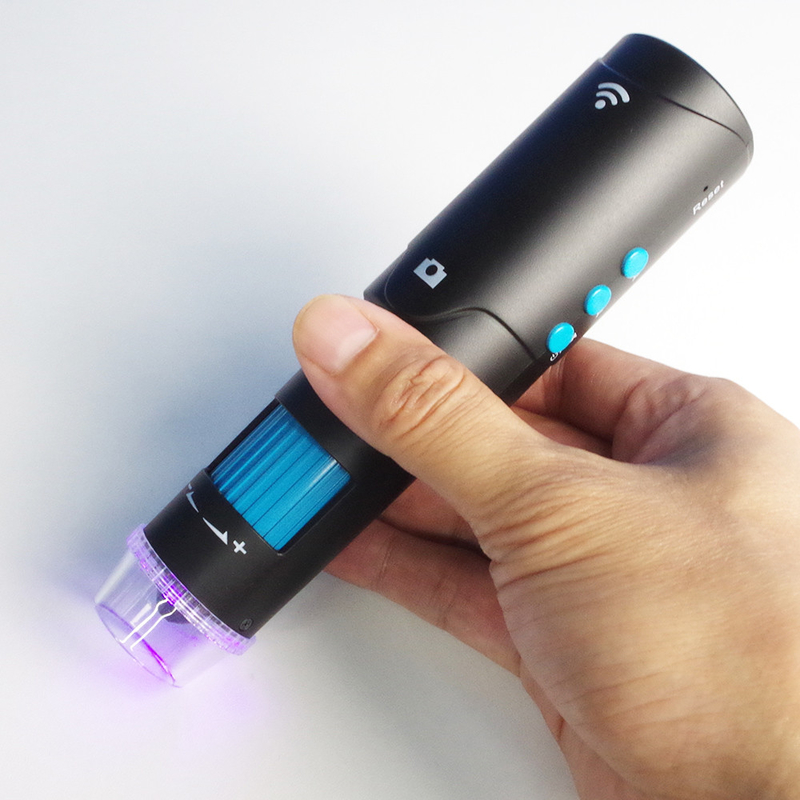

Medical Digital Dermoscopy with UV Light White Light for Android Phone iPhone
Quick Details
* 2022 New released UV Wirelss Digital Microscopes are with UV light sources, which works well for skin analyzer, dermatoscope doctor, hair and scalp inspection.
* 2022 New released UV Wirelss Digital Microscopes are with UV light sources, which do the great job for beauty solon, hair transplant industry etc.,
* This model can be used to observe the paraffin section of zebrafish and does not require staining, eliminating the standard 7 day waiting period involved in the staining process.
Product Specification:
| Model | Model Name | DM023B |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088 / 1280*720 / 864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| Light Source | 4pcs white LED+4pcs 400nm UV LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Advantage | Switchable Polarizer | No |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Body Dimension | 16.6*4.5*4.0cm | |
| Gross Weight | 0.2KG | |
| Gift Box | 26*18*8cm | |
| Gross Weight | 0.65KG | |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Main Features
With replaceable 18650 battery to get the longer service life for the UV microscope.
With rechangeasble 18650 battery, you can change the battery easiliy and make your UV microscope the longer working life.
With Microtouch to get the capturing without fuzzy and trembling.
With touch area on the microscope body to take the captures, which can avoid shaking by pressing and get the high quality captured images.
