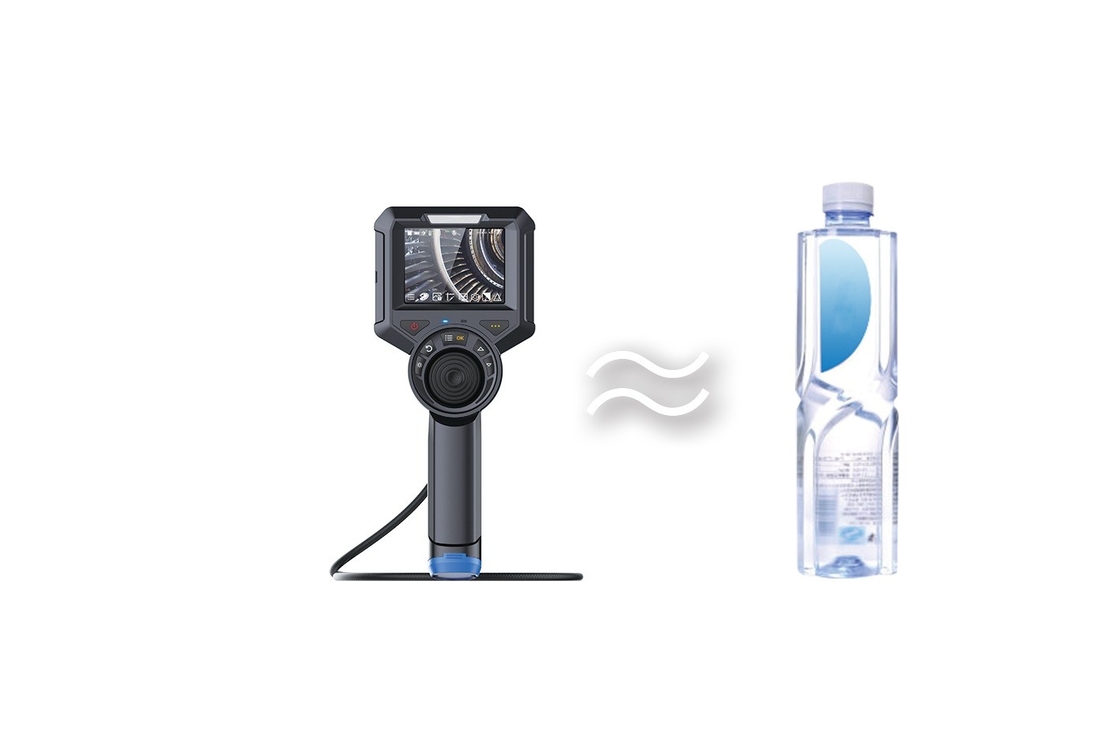

3.5 Inch Industrial Video Borescope Endoscope Inspection Camera All Way Articulation 6mm Lens
Main features
* In-depth management of multi-layer stainless steel / tungsten wire mesh, more corrosion-resistant and wear-resistant.
* The insertion tube can be replaced and different diameters are applicable.
Applications

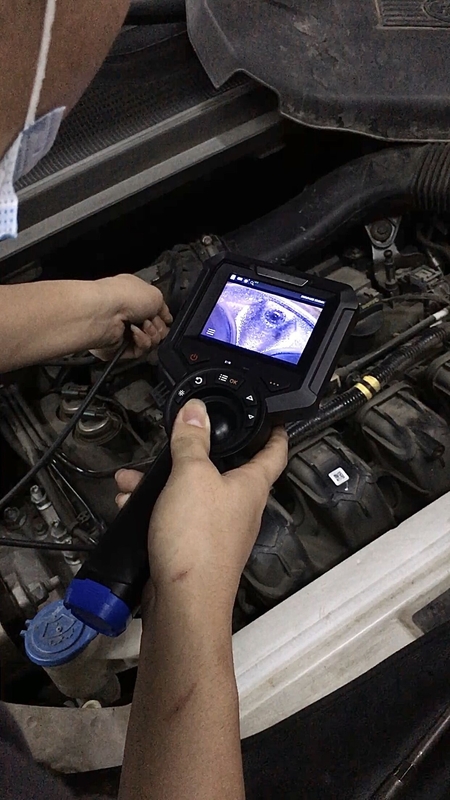

Car overhaul, pipeline detection, appliance repair, crevice fetch, electric power, industrial, police, civilian and other fields.
| Model | DE610 | DE615 | |
|
Tube System |
Probe Diameter(mm) | Φ6.0 | |
| Tube Length |
1m
1.5m 1m 1.5m |
1.5m | |
| Tube Material | tungsten alloy | ||
| Camera Pixels | 1 mega pixels | ||
| Image Resolution | 1280*720 | ||
| DOF | 7~110mm/20~150mm | ||
| FOV | 120° | ||
| Light Source | LED ceramic light | ||
| Illuminance |
25000Lx
|
||
| Protecting Device of Durability | buffer protection device on the connection between tube and handle | ||
| Articulation | 360° joystick-control articulation | ||
| Bending Angle | maximun: 220° | ||
|
Monitor System |
Structure | hand-held integrated design | |
| Display | 3.5 inches IPS full-view display | ||
| Zoom In/Out | 5X | ||
| Image Effect | image freezing, cold/warm color | ||
| Image Adjustment | image sharpness/ contrast/gamma value | ||
| Image/Video Format | JPEG/MP4 | ||
| File Storage | standard TF card: 16G, Maximum: 64G | ||
| Data Port | HDMI video output, Micro USB port | ||
| Wireless Image Transmission | WIFI(optional) | ||
| Battery | detachable & rechargeable lithium battery | ||
| Battery Capacity | 3.7V,3200mAh | ||
| Battery Working Time | ≥3H | ||
| Battery Charge | DC 5V/1A | ||
| Outer Case Material | anti-fall engineering alloy material | ||
| Water/Dust Proof | probe/tube: IP67; monitor: IP65 | ||
| Weight | ≈0.5KG | ||

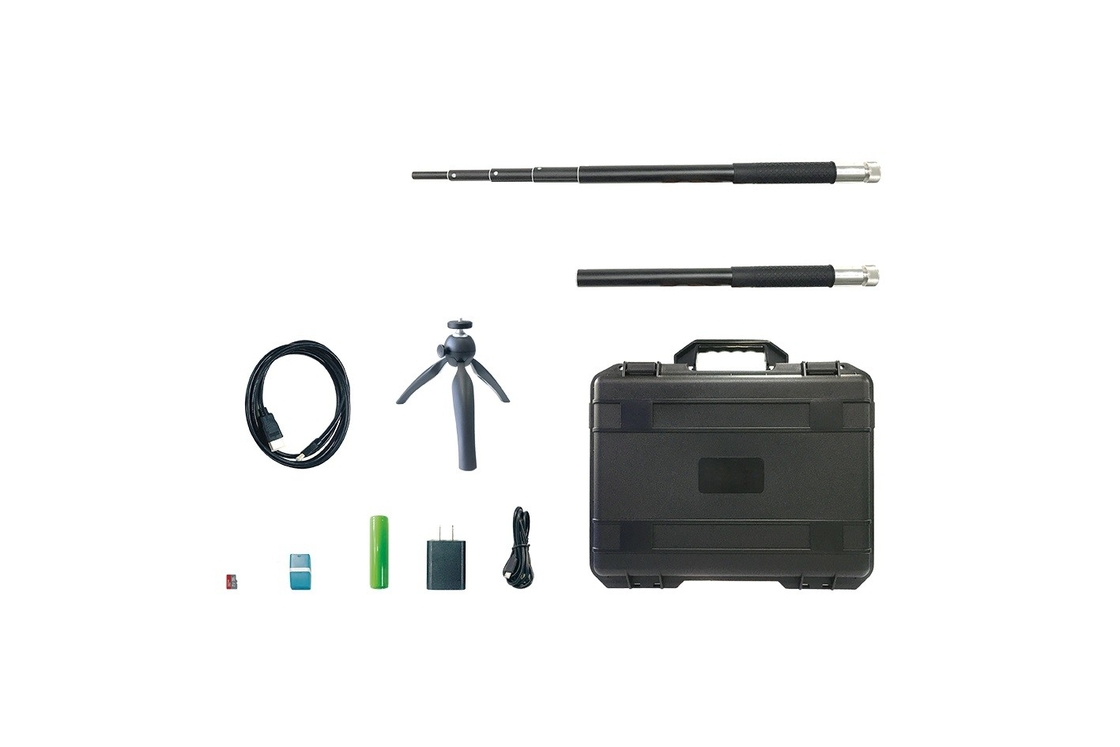

| Accwssories | Standard Configuration | instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual | |
| optional | extendable pole: 0.35-1.8m/mini HDMI cable/ foldable tripod | ||
OEM&ODM Service
We could reach most of your requirement in OEM, ODM orders.
