Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us

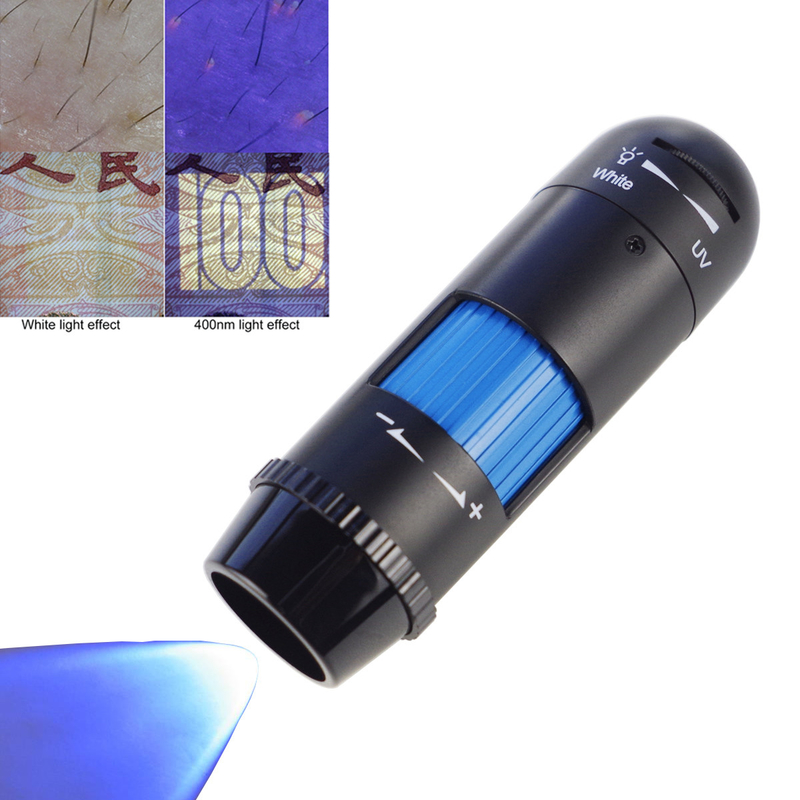

5MP Resolution Portable Digital Microscope 250x Magnification DM022C
Quick Details
With the improved real 5MP magnification dial movement for smooth and easy adjustment and focusing. Simply by rotating the polarizer filter, the handheld digital microscope could amazingly decrease the reflection glare to almost any extent, and could thus help the user see through the surface of fully or partially transparent materials, such as jewelry, skin, glass, and plastic, or see clearly the high reflectivity materials, such as metal or soldering. The handheld digital microscope could be very useful in some application including PCB, printing, machining, textile, jewelry, or skin care etc.
PRODUCT SPECIFICATION
| MODEL | Model Name | DM022C |
| Connection | USB 2.0 | |
| OPTICS | Polarizer | Yes |
| Magnification | Real 10x~250x(based on 21 inch Display) | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm | |
| Illumination | 8 adjustable white LED | |
| SENSOR | Sensor type | CMOS |
| Size | 5 megapixel | |
| Resolution | 2590*1944 | |
| Frame rate | 25 fps at 5MP output; 35 fps at 2MP output |
|
| FEATURES | Software | DigiCapture Pro for Windows/MacOS |
| Measurement function | Yes | |
| Certification | CE/FCC/RoHS | |
| PHYSICAL | Dimensions | 18*34*30cm |
| Gross weight | 0.2kg | |
| Stand | Comes with metal stand |
Main Features
With Polarizer scroll to anti reflective light
With real/true high resolution definition 5MP sensor 5 Million Pixel
With Measurement function
PC Software support four display concurrently
Compatible with Windows and Mac
PACKING METHOD
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
Packing way with customization availble.
Accessories for neutral products

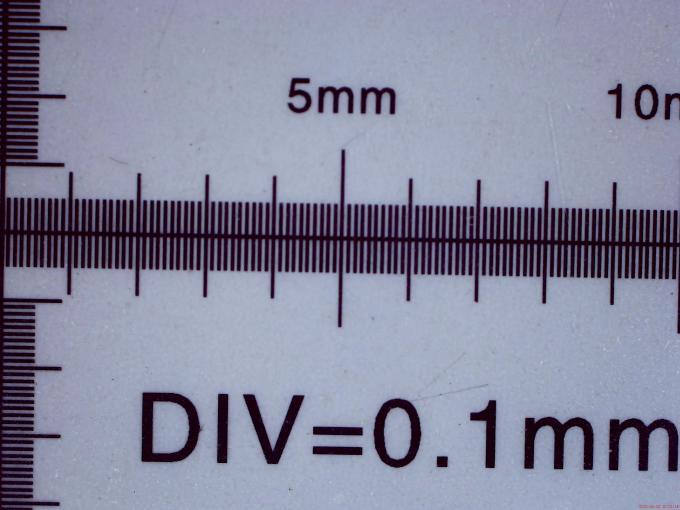

USB cable,CD,calibration ruler,metal or acrylic stand
Digital Microscope Advantages:
1: The USB Ditital Microscope Suitable for kids, students, engineers, inventors, collectors to magnify the plants, insects, coins, circuit boards, jewelers, skin, hairs and more.
2: It can easily take a full coin. To use for skin experication, it can capture more details compared with other microscopes.
