Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us

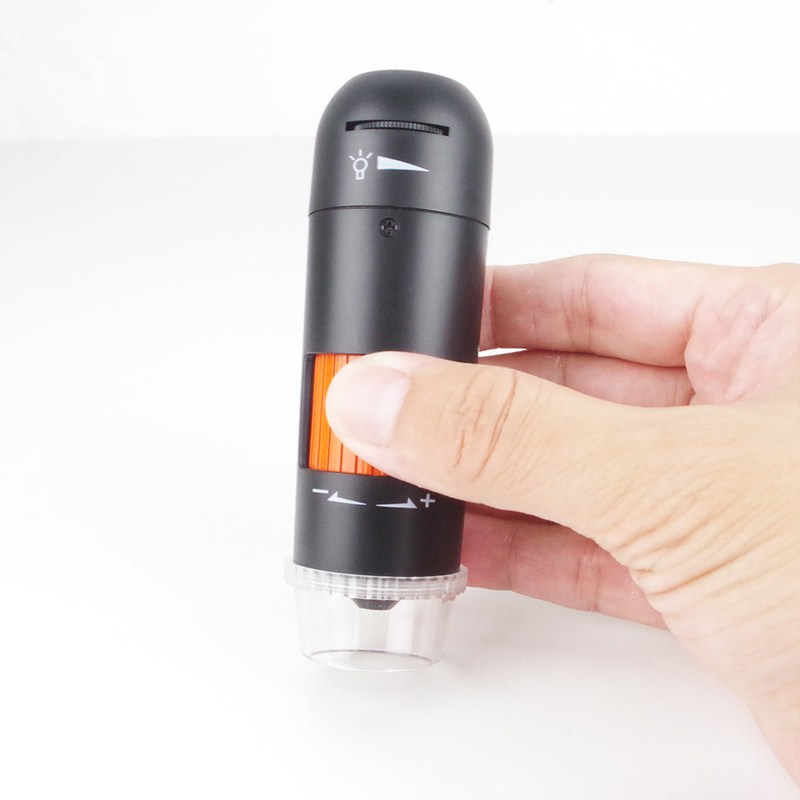

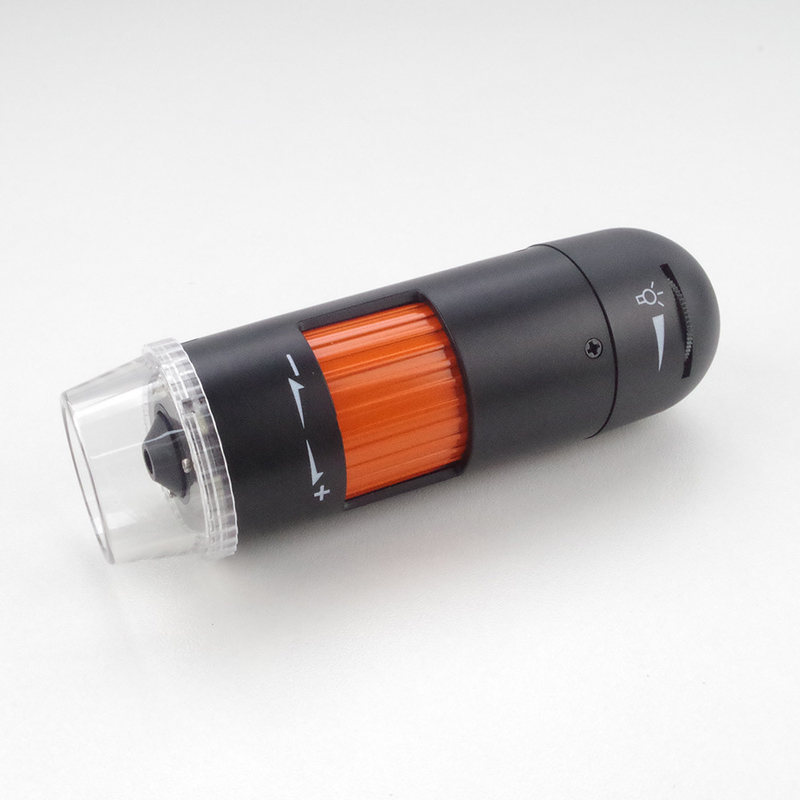

Portable Digital Microscope USB 2.0 Interface with Polarizer Anti Reflective Objects
PRODUCT ADVANTAGE
*Special features make it different in the current market:
Palorizer: Switchable polarizer, easy to observe reflective objects like SMD board, diamond, metal etc.,
Software/driver can support four screens to work simultaneously
*New technology for digital microscope - Polarizer
An innovative technology for the digital microscope called Polarizer was developed by our R&D team after the long time research and development, and this technology was used to all of our digital microscopes models. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function
PRODUCT DESCRIPTION
Empowered with USB 2.0 interface, our usb type microscopes support connecting through USB to Windows or macOS computer to observe and analyse the captures&recordings or live images&video with our powerful user-friendly software "DigiCapture Pro" for advanced image processing.
Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.
* Image sensor is the high resolution 5M pixels (2592*1944), 1/3.2" CMOS Image Sensor.
* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.
* Max frame rate is up to 25fps at 5MP output, user can get the super high quality and smooth viewing and recording.
PRODUCT SPECIFICATION
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |

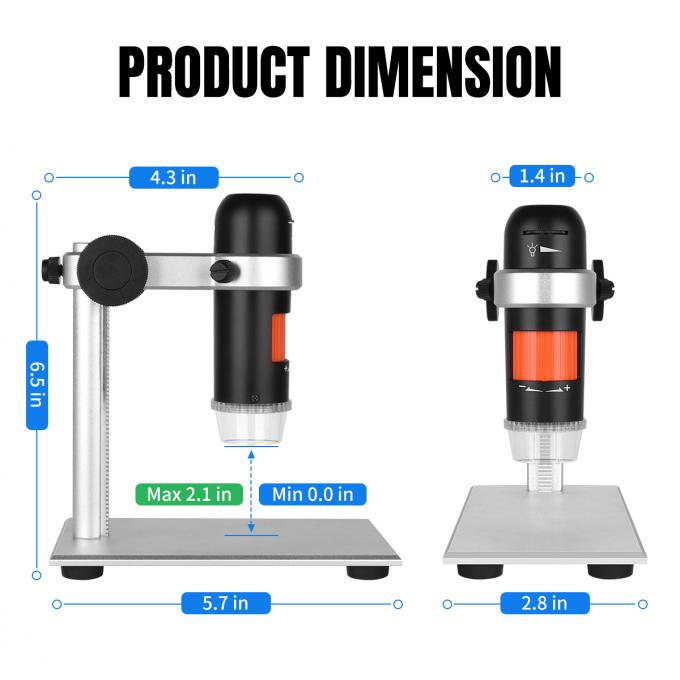

Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|

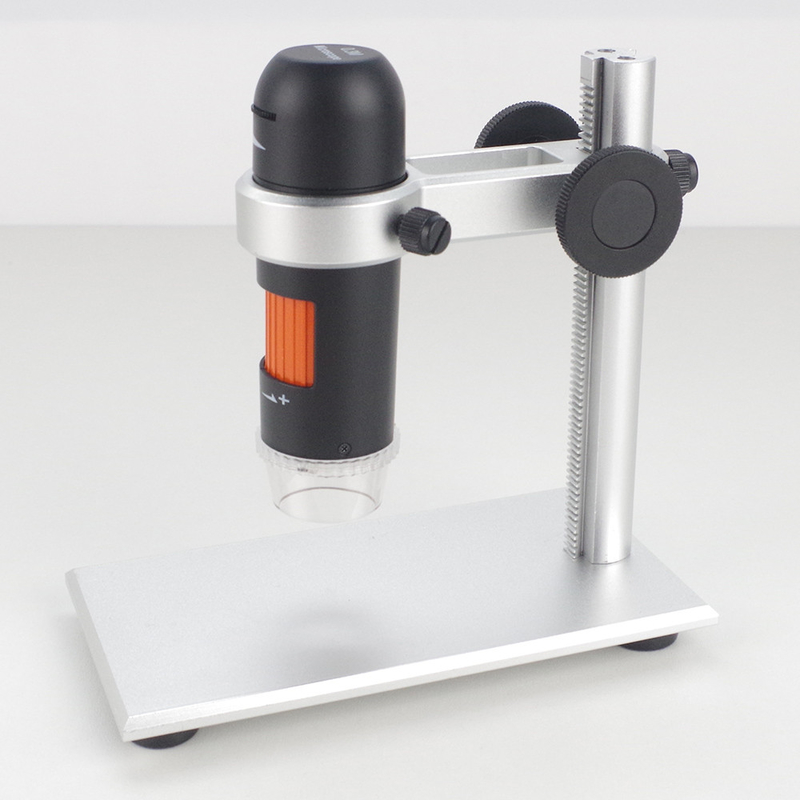

Stand |
Comes with me |

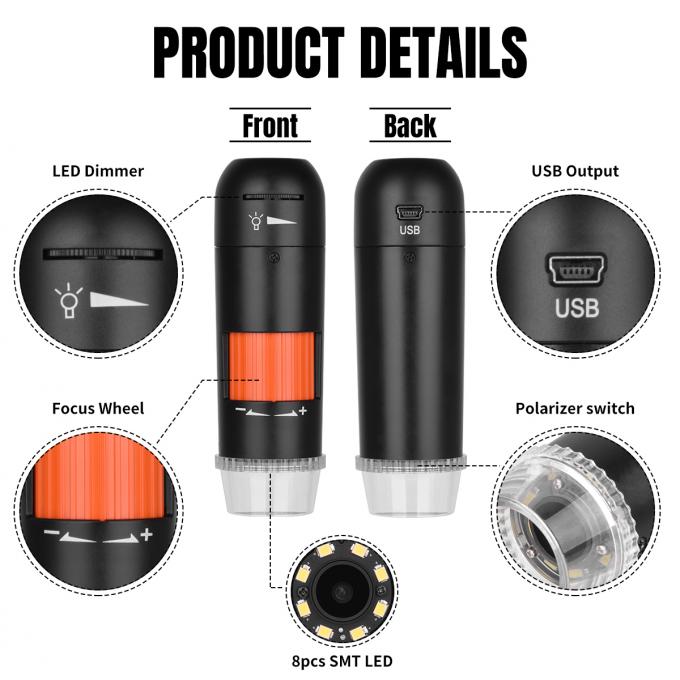

PRODUCT DETAILS
OEM&ODM Service
Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
