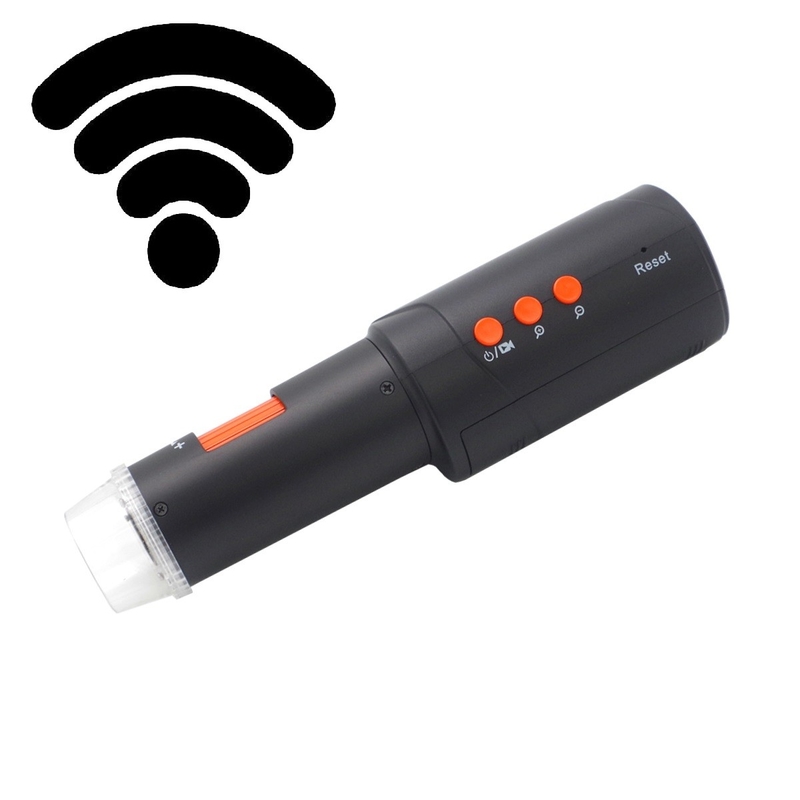

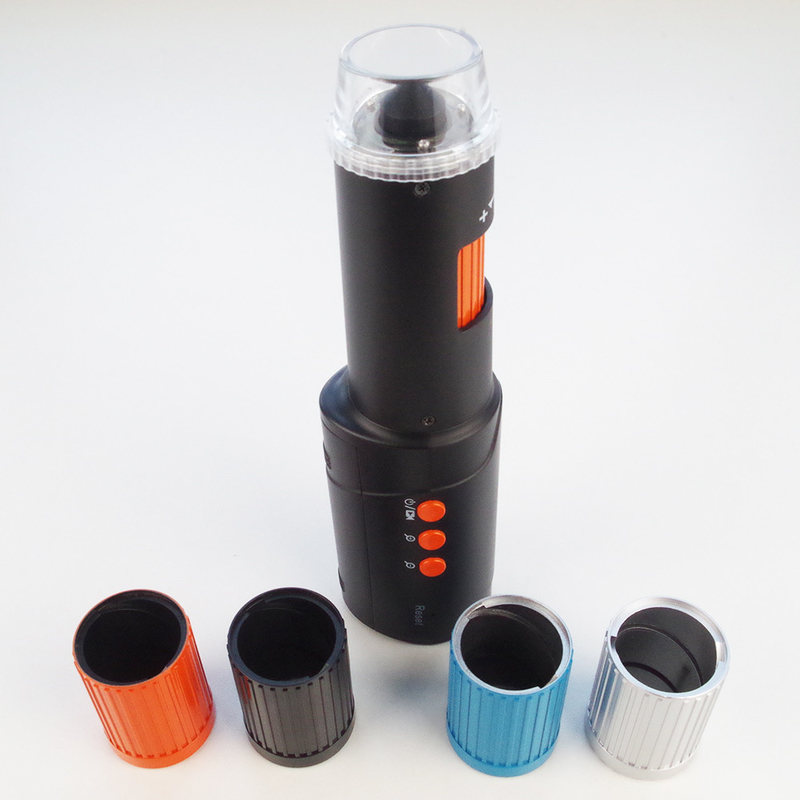

HD 1080P 2MP Digital Dermatoscopy for Skin Inspection Mole Examination
DESCRIPTION
Quick Details
*Model DM023A is the new realeased product by Toproview in 2022. This model is with real 2MP resolution, real 200x magnification, both the resolution and magnification are the real specification, not the interpolation which is wide used for other products in current market. Main fetrues: polarizer build in, support take photo and video by touch or press on microscope.
Main Features
A polarized dermatoscope offers specialized lighting which automatically eliminates the glare created from the reflection of the skin, and thus removes the need for the application of a liquid medium to the skin for each imaging session.
* Optional photo and video resolution is with FHD(1920*1088)/HD(1280*720)/VGA(864*480), which are available on both smart devices like iPhone, iPad, Android phone, and computer(Windows and Macbook).
* With capture microtouch on microscope, different from the traditional capture press button for other wireless digital microscope in the market, this model allows user to take capture by touch the “microtouch” to avoid the fuzzy captures by trembling.
DIGITAL DERMATOSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Frame rate |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
PRODUCT ADVANTAGE
* New technology for USB digital microscope - microscope with polarizer. When used with the polarizer, users are able to detect mechanical stress, as well as identify optically anisotropic materials. Toproview polarizing microscopes are used in a wide range of fields, including forensics, manufacturing, health, mineralogy, research, and biology.
