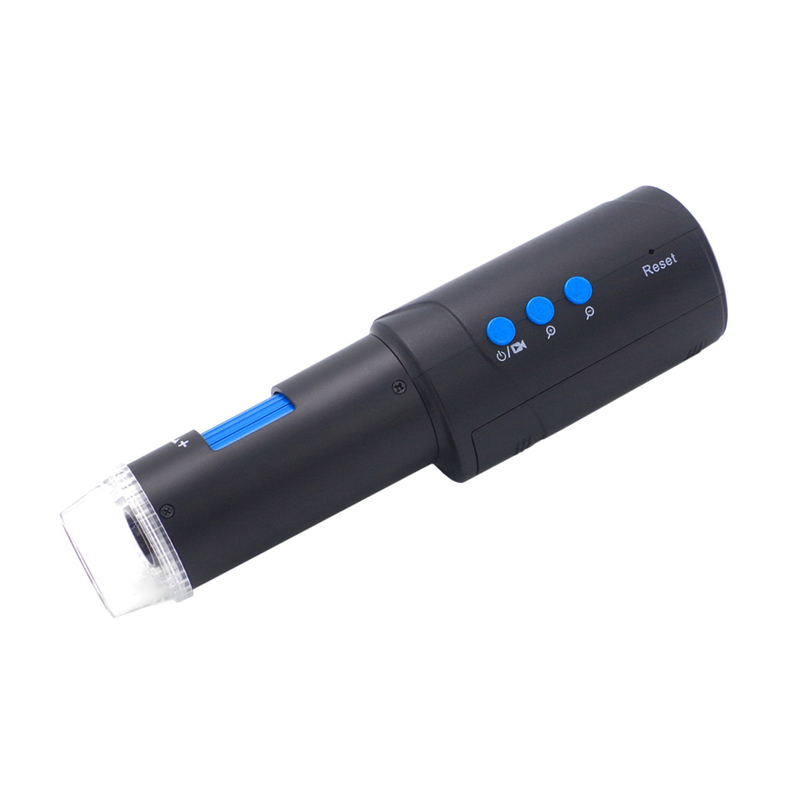

Skin Detection Purple UV 400nm Portable Digital Microscope 200x Magnification
Quick Details
* 2022 New released UV Wirelss Digital Microscopes are with UV light sources, which do the great job for beauty solon, hair transplant industry etc.,
Main Features
With replaceable 18650 battery to get the longer service life for the UV microscope.
* With replaceable and rechargeable battery, 18650 lithium-Ion battery 2000mAh. Support continue working up to 2.5 hours.
* Supported operation systems for computer is Windows 7/8/10,macOS 11.2.1 or above. No matter you are working with your Windows notebook, laptop or apple Macbook, you will make it easy to work with the microscope. The attached software is also with the powerful measurement function, you can not only take some capture, video but also allow to do some measurement and text record.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATIONS
* DM023B UV Wireless Digital Microscope with wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
