Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

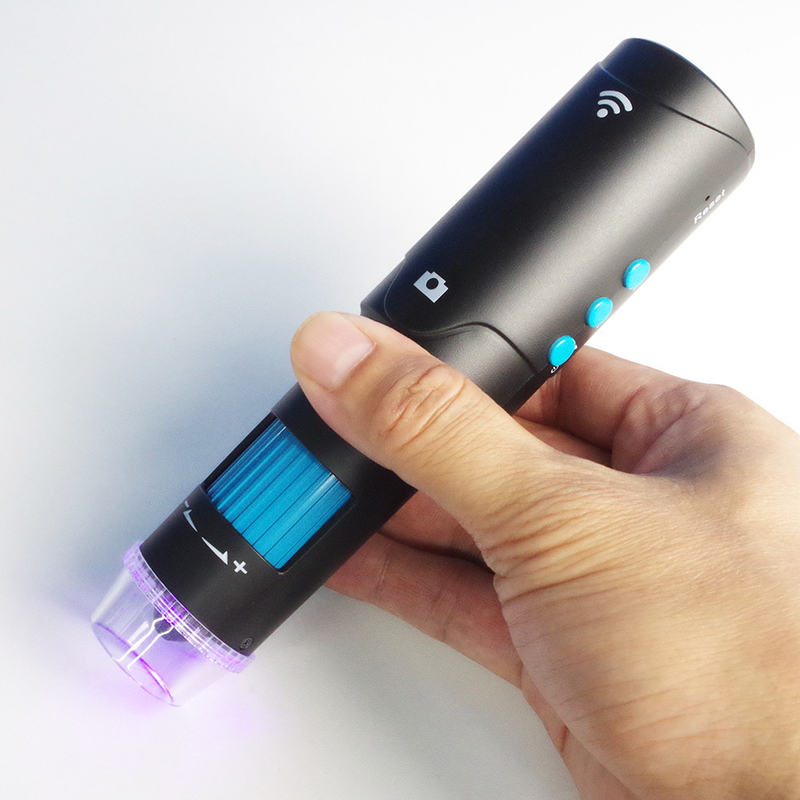

True 200X Magnification UV Light Digital Dermatoscope for Skin Analyzer
PRODUCT DESCRIPTION
Quick Details
* Toproview 2022 New released UV Digital Dermatoscope are with UV light sources, which works well for skin analyzer, dermatoscope doctor, hair and scalp inspection.
* Support to outpout through WiFi and USB Port.
* Designed especially for the inspection of skin or scalp.
* With UV light especially useful for skin, hair and scalp analyzer.

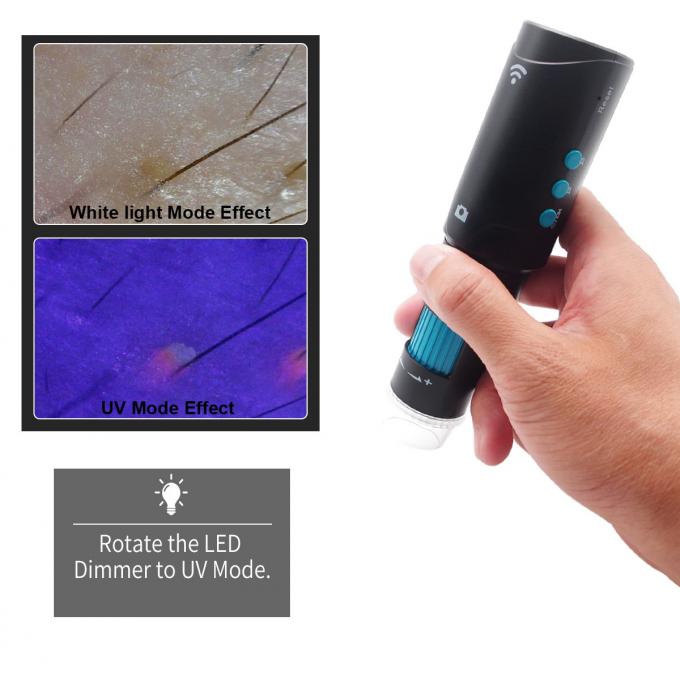

* With UV lens/light to see the hair follicle is blocked or the pigment precipitates or not.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
Main Features
* With rechangeasble 18650 battery, you can change the battery easiliy and make your UV microscope the longer working life.
* With Microtouch to get the capturing without fuzzy and trembling.
* Optional photo and video resolution is with FHD(1920*1088)/HD(1280*720)/VGA(864*480), which are available on both smart devices like iPhone, iPad, Android phone, and computer(Windows and Macbook).
-Easy to connect by WiFi or USB
-High detail live inspections
-Use covers to set up different magnifications
-Up to 200x model
-Ready to use software for measuring.

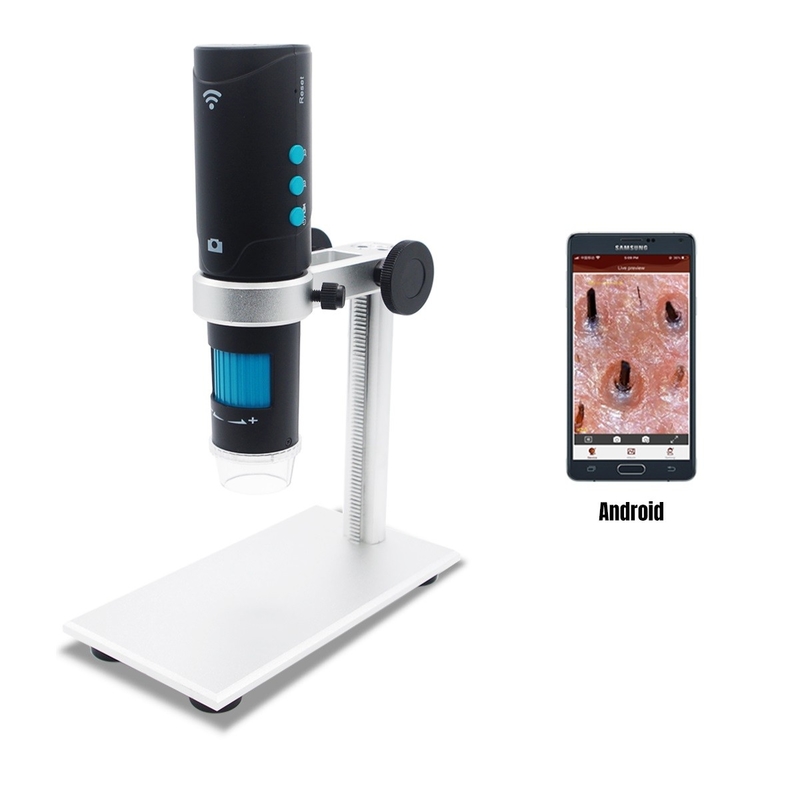

-Hands free stands available separately
APPLICATION
Medical & Dermatology Usage especially in: Scalp, Spa & Beauty, Eyelash Inspection, Telemedicine, Oral Examination, Veterinary, Otoscope, Inner Ear Inspection, Subcutaneous wounds, Observe cyan fluorescent protein etc.,
