Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us

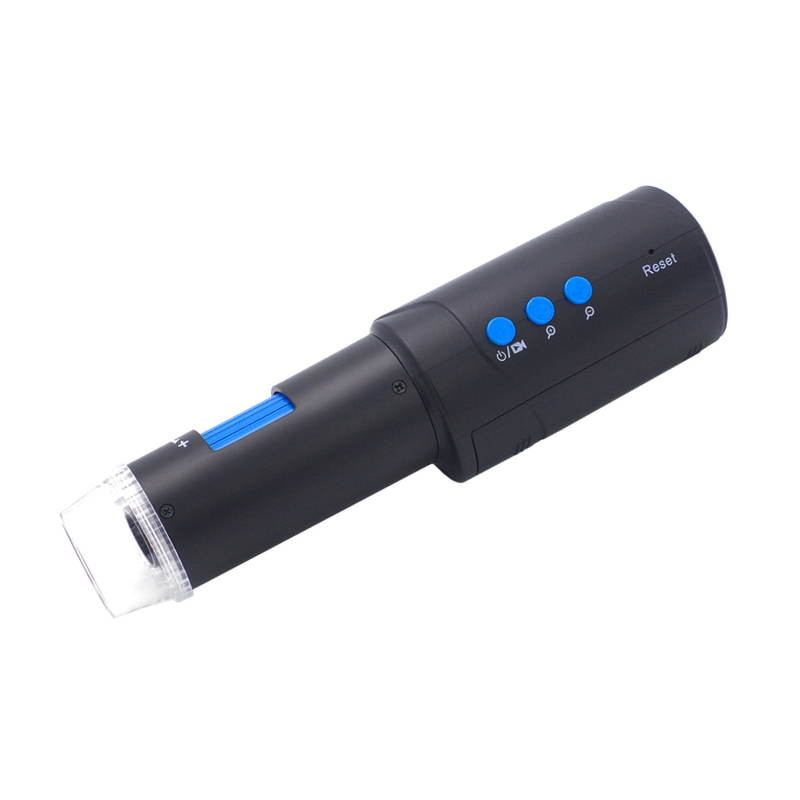

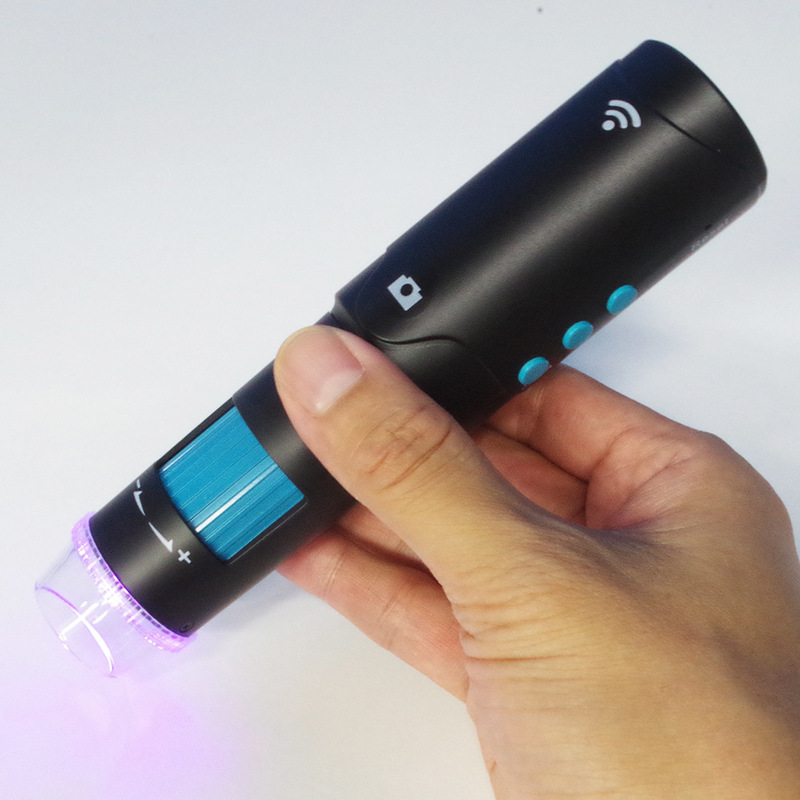

400nm UV Light Digital Dermatoscope iPhone Android Compatabile 200x
Main Features
* Image and video resolution: 1920x1088/1280x720/864x480.

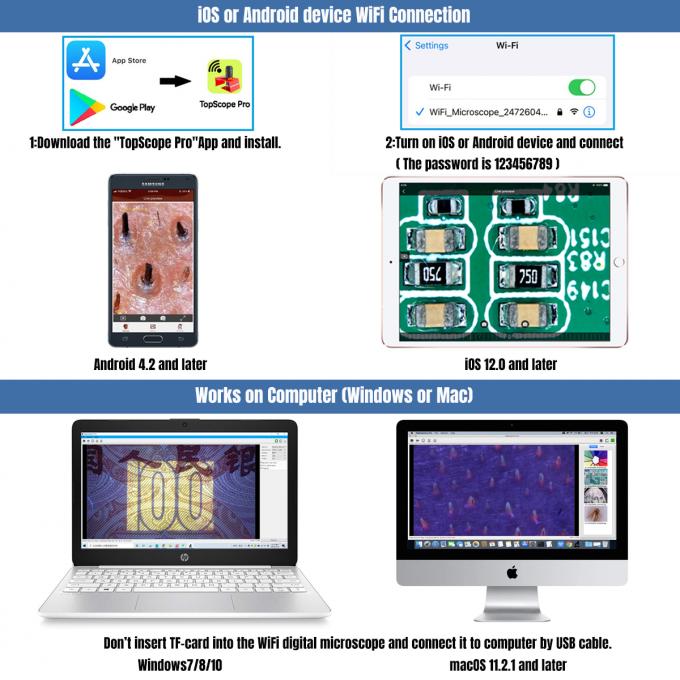

* Support to output through WiFi and USB connection, which is with the wonderful compatibility with smart devices like iPhone, iPad, Android; Windows computer; Macbook etc.,
* Supported operation systems for computer is Windows 7/8/10,macOS 11.2.1 or above. No matter you are working with your Windows notebook, laptop or apple Macbook, you will make it easy to work with the microscope. The attached software is also with the powerful measurement function, you can not only take some capture, video but also allow to do some measurement and text record.
SPECIFICATION
| MODEL | Model Name | DM023B |
| Connection | WiFi to smart devices; USB 2.0 to PC | |
| OPTICS | UV light | Yes |
| Magnification | Real 10x~200x | |
| Lens type | Optical glass | |
| Focus range | Manual focus 0~110mm(with stand) | |
| Illumination | 8 adjustable LEDs(white + purple) | |
| SENSOR | Sensor type | CMOS |
| Size | 2 megapixel | |
| Resolution | 1920*1080 | |
| Max.Frame rate | 25 fps at 2MP output | |
| FEATURES | APP | TopScope Pro for iOS/Android (customizable) |
| Software | DigiCapture Pro for Windows/MacOS (customizable) | |
| Measurement function(PC Software) | Yes | |
| Supported operation systems (Smart device) |
iOS 12.0 or later Android 4.2 or later | |
| Supported operation systems (Computer) |
Windows 7/8/10macOS 11.2.1 or above | |
| Capturing by microscope | Yes with recording button on microscope | |
| Recording by microscope | Yes with digital zoom button on microscope | |
| Certification | CE/FCC/RoHS | |
| REPLACEABLE BATTERY | 18650 Lithium-Ion Battery | 2000mAh rechargeable and replaceable |
| Battery working time | Continue working for 2.5 hours | |
| Charging time | 2.5hrs (when WiFi Digital Microscope power off) | |
| PHYSICAL | Body dimensions | 16.6*4.5*4.0cm |
| Gross weight | 0.2kg | |
| Stand | metal stand for neutral product; support to customize |
APPLICATIONS
* Graphic design and printing inspection
* Cosmetic effects corroboration
* Laboratory and classroom research
* Field use for agricultural close quality control
* Education and on-site classroom demonstrations.
FAQ
Q:Why choose Toproview digital dermatoscope?
Toproview: Developed for professionals yet economical for consumer or casual use
Q: Do you offer custom solution?
Toproview: Yes, we can offer custom solution if standard products couldn't meet buyer' requirements. OEM&ODM order are welcome.
