OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring

OV528 TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring

OV528 TTL Camera Module

TTL Camera Module OV7725

OV7725 Camera Module

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization

Certification:

CE/FCC/RoHS

Model Number:

CA025M-TTL-3.3V

Contact Us

Request A Quote
Product Details
Model Name:
CA025M-TTL-3.3V
Interface:
TTL
Communication Protocol:
OV528
Lens:
F:2.8mm\IR:850nm\FOV:100°
Image Sensor:
OV7725 1/4" CMOS Image Sensor
Baud Rate:
9600 To 115200bps
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral / Customization Giftbox / 16pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
60000pcs/month
Product Description

TTL Serial Camera Module OV528 Communication Protocol For Environmental Monitoring Smart Home, Alarm Monitoring



1: TTL OV7725 serial interface Support OV528 Communication Protocol.

2: Limited One-Year Warranty and Lifetime Product Support .



Product Specification:

Model Model Name CA025M-TTL-3.3V
Features Interface TTL
Working Power DC 3.3V
Working Current About 70mA (Standby: 50mA)
Image sensor OV7725 1/4" CMOS Image Sensor
Pixels 0.3 Megapixel
Image Compression JPEG
Baud Rate 9600 to 115200bps
Lens F:2.8mmIR:850nmFOV:100°
Image Resolution VGA(640*480) / QVGA(320*240) / QQVGA(160*120)
Advantage White Balance Automatic
Exposure Automatic
Auto Gain Control Automatic
Working Temperature -10 to 70 degree Celsius
Warranty Limited One-Year Warranty and Lifetime Product Support
Software JPEG Serial Port Camera Test Software Yes
User Manual OV528 Protocol Yes
Communication protocol OV528
Package details Size 38mm*38mm / 32mm*32mm
Gross Weight 0.01KG
Package Included 1 x TTL JPEG Camera Module



Product Advantages:

1: Robot Vision,object detection and recognition.

2: Industial Control System , Automotive System , Medical System etc.



Product picture:

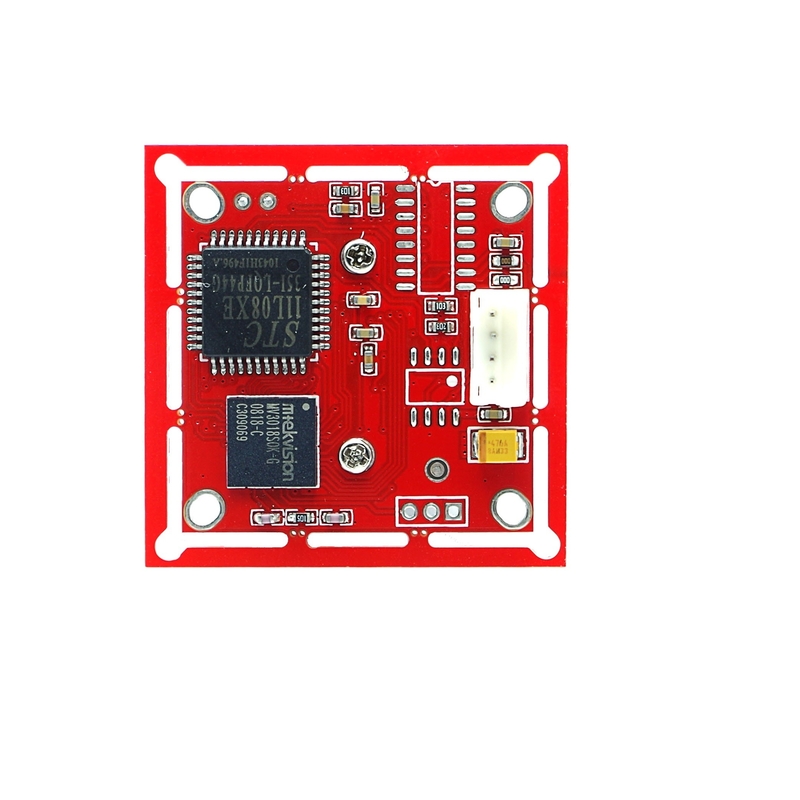

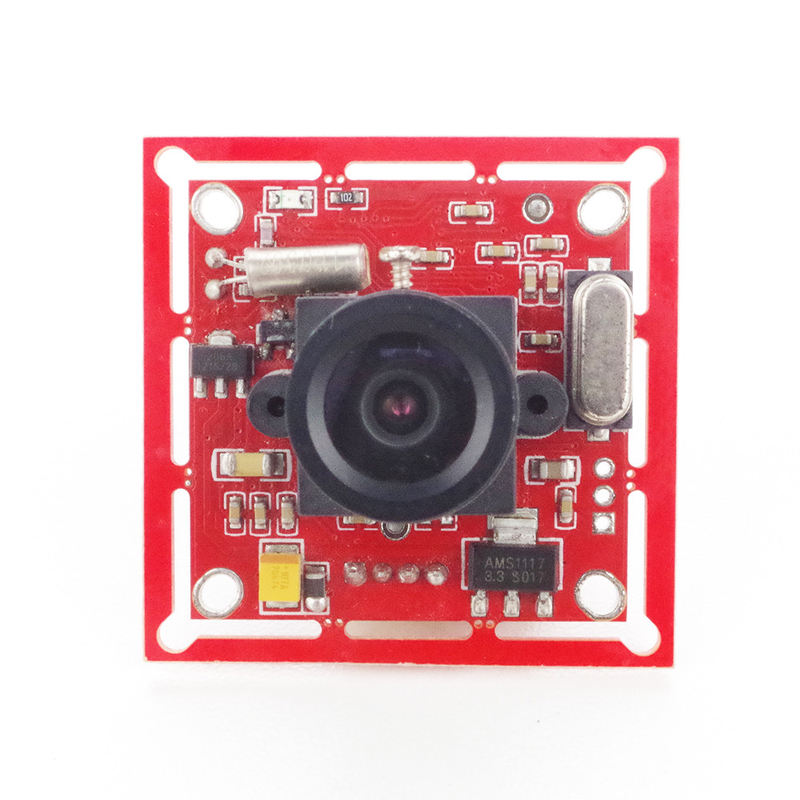

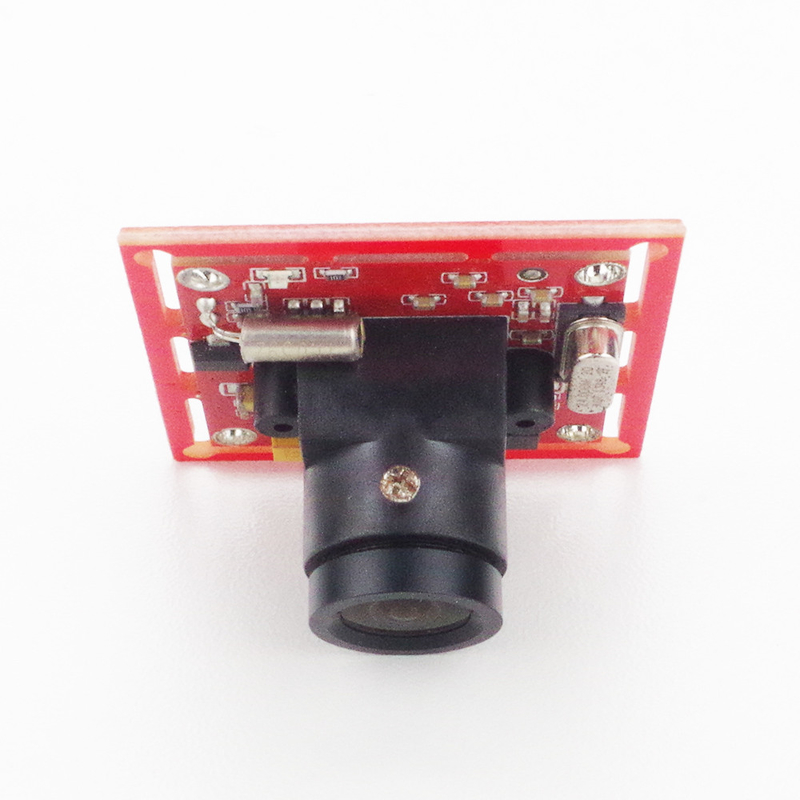

OV528  TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring 0



FAQ:

OV528  TTL Camera Module CE OV7725 Camera Module For Environmental Monitoring 1
