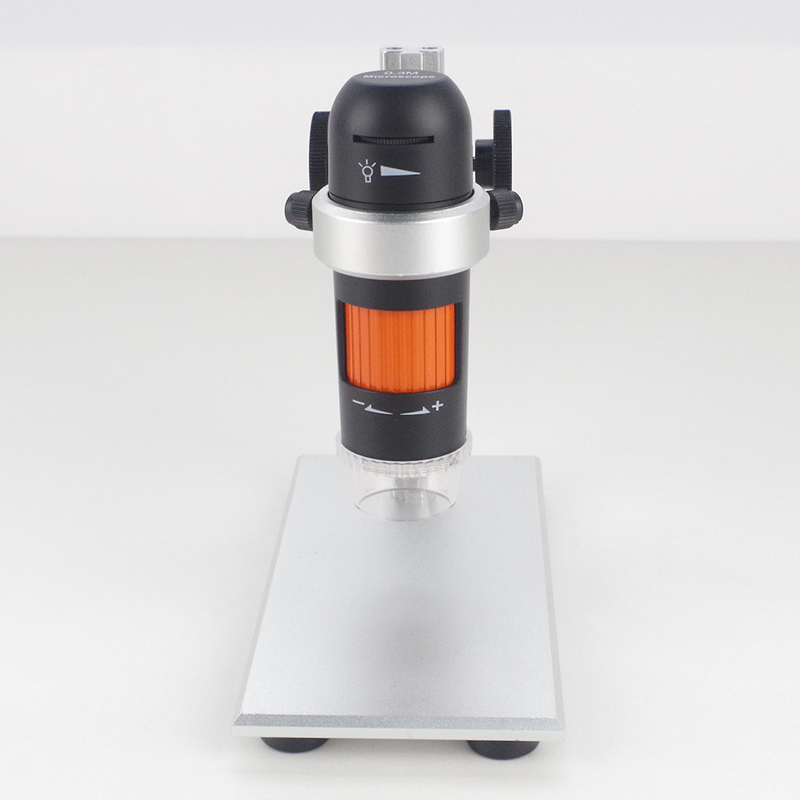

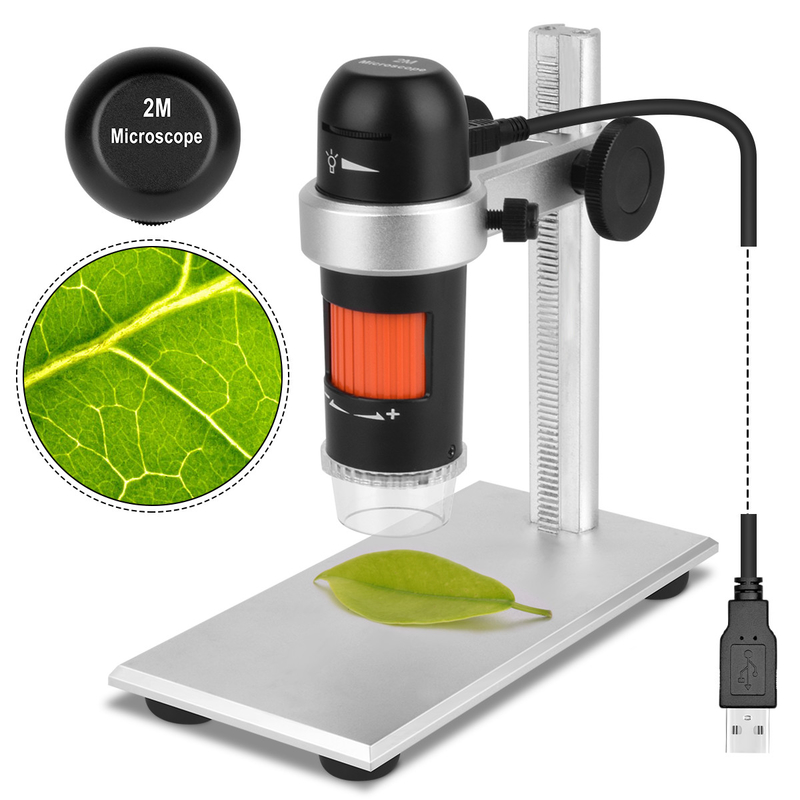

HD 1080P 2MP 200x Polarizer Digital Microscope Supports Plug and Play to PC
Quick Details
Polarizer Digital Microscope model DM022B is with real 2MP HD 1080P resolution and 200x magnification, with plug and play function, which is includes dimmable illumination an adjustable stand at no extra cost, as well as advanced software for image capture, annotation, and measurement, freeze frame, and compare mode, making it an essential tool for engineers, scientists, doctors, lab techs, forensic examiners, educators, and more.
Main features
• View live image on computer screen
• Photo capturing by software
• Video Recording and timed shot
• Connects to computer via USB 2.0 port
• Photo and video resolution are optional from 2MP, 720P, VGA.
• Real magnification from 10x~200x
• Max frame rate is up to 25fps at 2MP output.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022B |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
PACKING METHOD
Packing way with customization availble.
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.

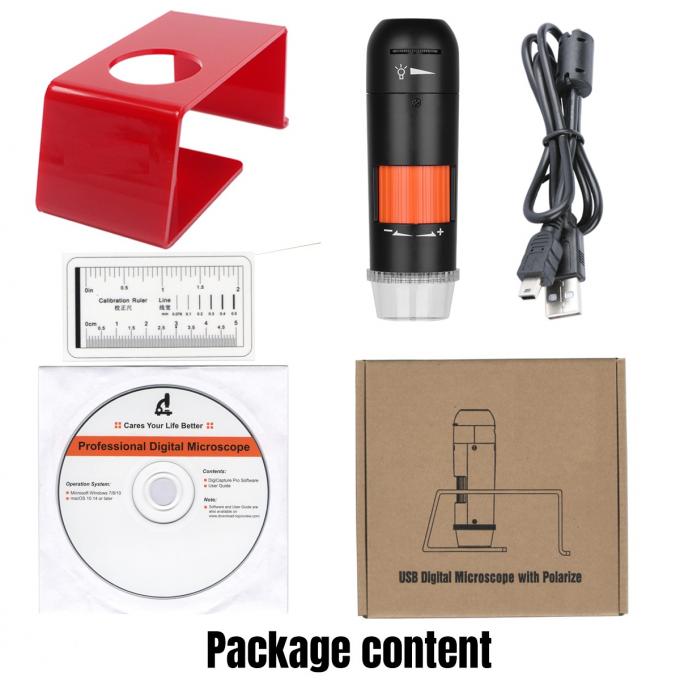

Accessories for neutral products
Accessories with customization availble.
USB cable,CD,calibration ruler,metal or acrylic stand
