Place of Origin:
Shenzhen , China
Brand Name:
Neutral / Customization
Certification:
CE / FCC / RoHS
Model Number:
DM023A
Contact Us
1080P WIFI Portable Handheld Polarizer Digital Microscope For Masonry and Jewelry Inspection
1: Special wide focusing knob makes correct judgment at magnification ranging from 10 to 200 times easily.
2: User-friendly design of the smooth, sensitive touch button bar brings you a better experience.
Product Specification:
| Model | Model Name | DM023A |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088 / 1280*720 / 864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| Light Source | 8Pcs SMT White LED | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Brand Name | Toproview / Neutral / Customization | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Advantage | Switchable Polarizer | Yes |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Four Display Concurrently | Yes | |
| PC Software Support Photo,Video Recording,Timed Photo And Timed Video | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Body Dimension | 16.6*4.5*4.0cm | |
| Gross Weight | 0.2KG | |
| Gift Box | 26*18*8cm | |
| Gross Weight | 0.65KG | |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Product Advantages:
1: The wide zoom range enables the user to work very efficiently at variable magnifications.
2: Equipped with one 2000mAh battery, this WIFI digital microscope can provide up to 2.5 hours of continuous working time , allowing you to observe the objects anytime and anywhere.

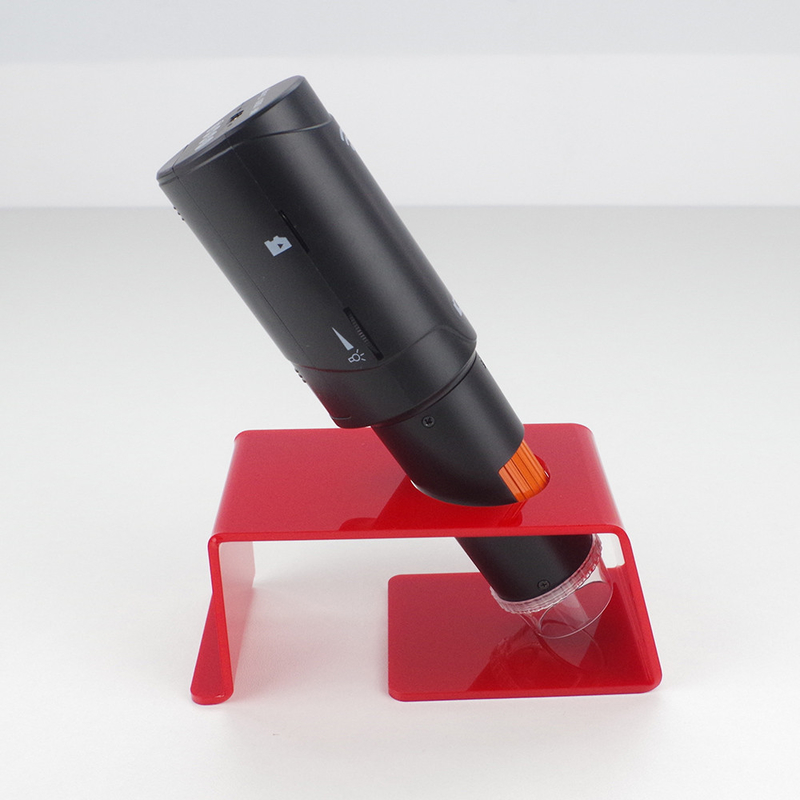

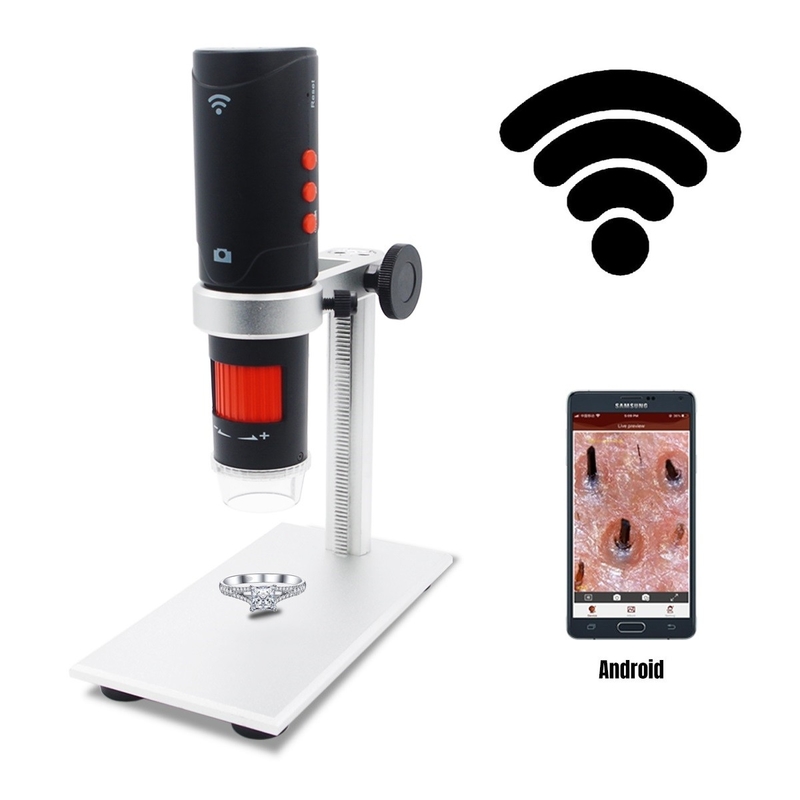

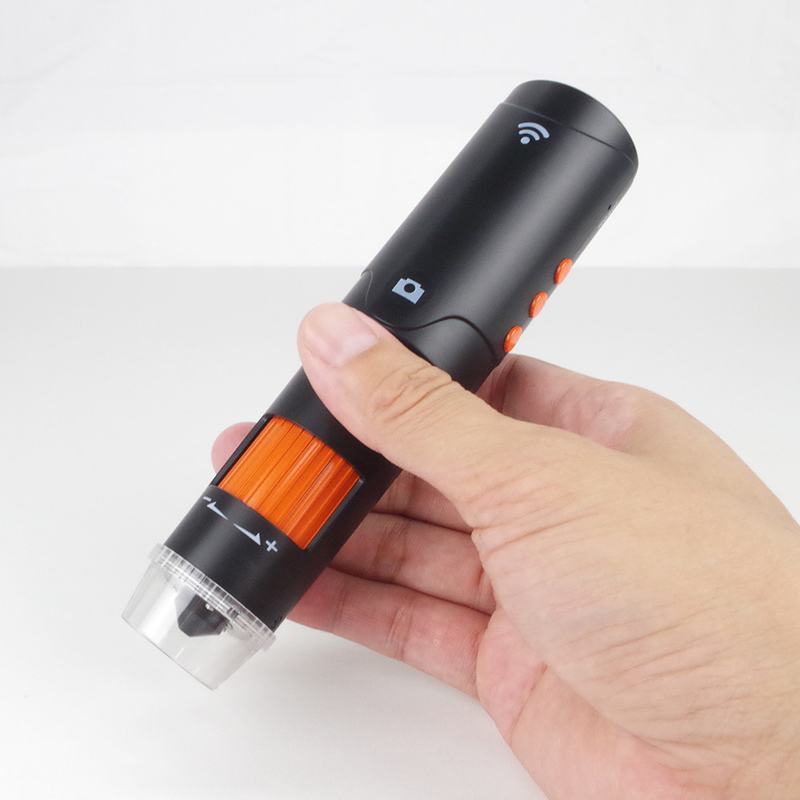

Product picture:
