IR Light 850nm Portable Digital Microscope for Crime Investigations Museums and Restoration
Quick Details
With special 850nm IR light built in, this model is wide used in Antique Market.

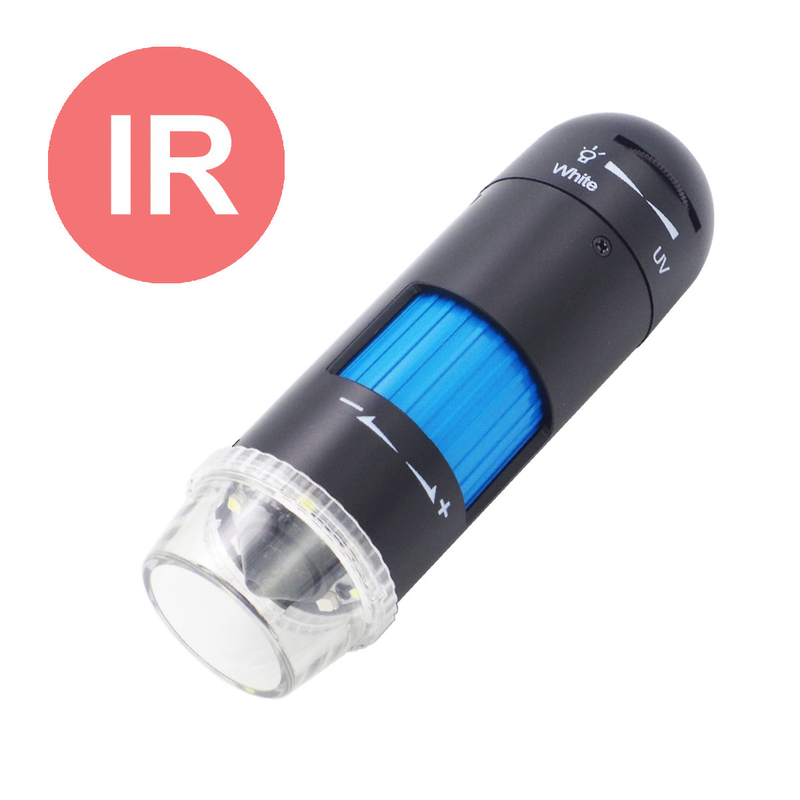

Model DM022D IR Digital Microscope, 2MP, 10x-200x, 4 white LEDs, 4 IR LEDs light. For scientific and medical applications where IR light is required. From white light toIR light or from IR light to white light, just to turn the LED dimmer and you will get what you want.
The light source of this model is white white light+IR light individually. If there is the requirement of 3 lights(white light+UV light+IR light) together, let us know, we would offer the solution accordingly!
Main Features
* Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable IR LEDs (Model name: DM022D IR850nm)
* CMOS sensor type is 1/3" CMOS Image Sensor, with resolution 2M pixels (1920*1080), you can get the clear captures and videos with this sensor type.

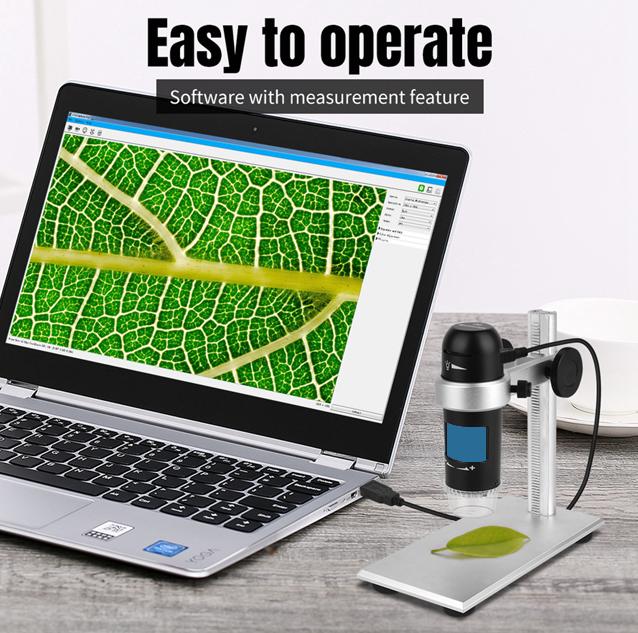

* Compatible with computer, both Macbook and Windows PC are available, with powerful software for measuring, capturing and recording.
* Optional resolution is from VGA, 720P, 1080P
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* PC Software with 16 optional languages can reach most of the uses in the worldwide.
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(850nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs IR+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
Our high-quality indepent R&D team are with more than 10 years experience in digital microscope field. With the rich experience in electronics circuits, firmware, product design for digital microscope, we could reach most of your requirement in OEM, ODM orders.
We pride ourselves on providing high quality products, unbeatable low prices, huge selections and personalized customer service and looking forward to cooperate with you!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
