Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D(850nm)
Contact Us
IR LED Dimmer Light Portable Digital Microscope for Antique Market with Real 200x 2MP
Quick Details

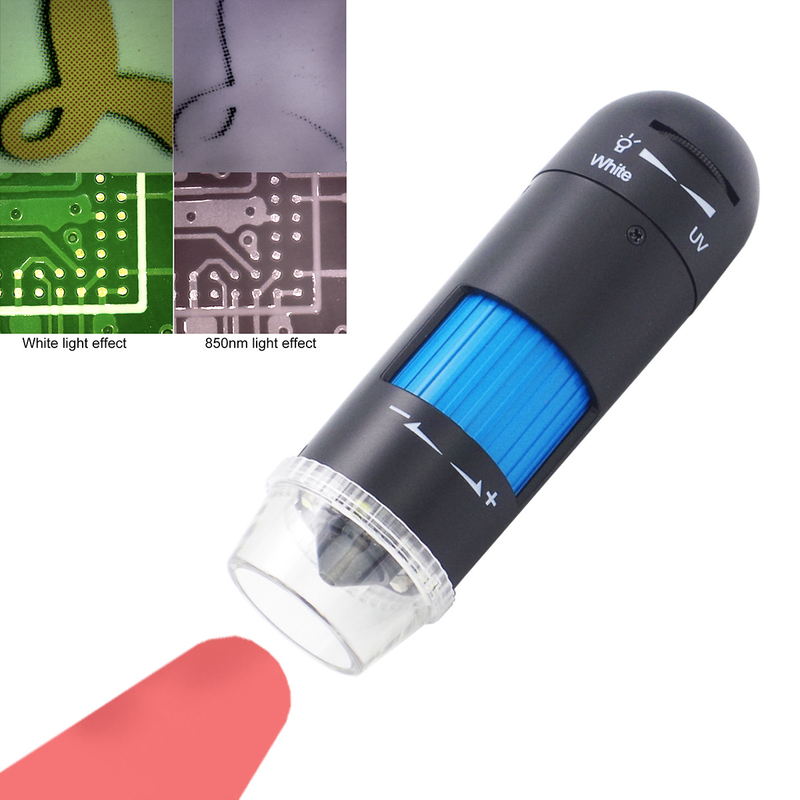

Toproview DM022D(850nm) is a special type microscope that can switch freely between infrared light and white light (the IR light wavelength is 850nm). It is mainly used in the field of cultural relic identification and restoration, criminal investigation and so on. It also with a very peculiar effect for adhesion observation of transparent industrial glue.
With special 850nm IR light built in, this model is wide used in Antique Market.
Model DM022D IR Digital Microscope, 2MP, 10x-200x, 4 white LEDs, 4 IR LEDs light. For scientific and medical applications where IR light is required. From white light toIR light or from IR light to white light, just to turn the LED dimmer and you will get what you want.
Main Features

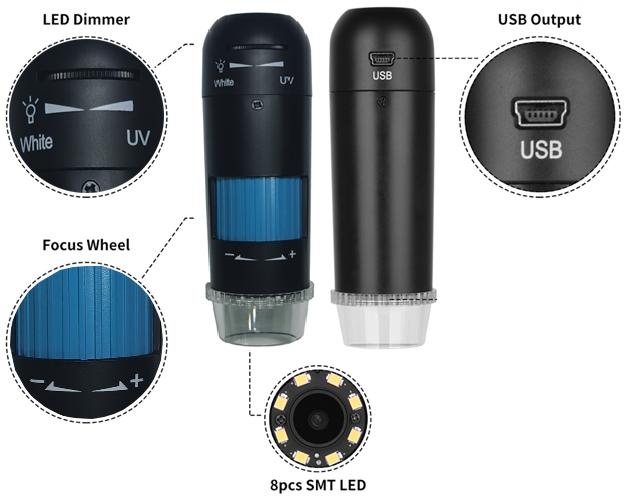

* Model name: DM022D IR850nm - Light source is dimmable LED ring illuminator included with 4 adjustable white LEDs + 4 adjustable IR LEDs.
* Max. Frame is up to 25 fps at the highest resolution 2MP, that means you will get the smooth video even in the high resolution without any stuck and stop;
* 8 LED build in, 4pcs white LED and 4pcs 850nm IR LED, output with dimmable LED ring illuminator.
* Adjustable magnification is from real 10x ~ 200x, normally we consider this magnification based on 21''monitor.
PRODUCT SPECIFICATIONS
MODEL |
Model Name |
DM022D(850nm) |
|
Connection |
USB 2.0 |
OPTICS |
Polarizer |
Yes |
|
Magnification |
10x~200x |
|
Lens type |
Optical glass |
|
Focus range |
Manual focus 0~110mm |
|
Illumination |
8 adjustable LED(4pcs IR+4pcs white) |
SENSOR |
Sensor type |
CMOS |
|
Size |
2 megapixel |
|
Resolution |
2M pixels (1920*1080) |
|
Fr |
30 fps at 2MP output |
FEATURES |
Software |
DigiCapture Pro for |
|
Measurement function |
Yes |
|
Certification |
CE/FCC/RoHS |
PHYSICAL |
Dimensions |
18*34*30cm |
|
Gross weight |
0.2kg |
|
Stand |
Comes with me |
FAQ
Q:Why choose Toproview microscopes?
Toproview: Developed for professionals yet economical for consumer or casual use
Q:Why choose Toproview microscopes?
Toproview: If the selection of products do not meet your needs, custom options are available
Packing ways
Packing way with customization availble.
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
