Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022D(400nm)
Contact Us

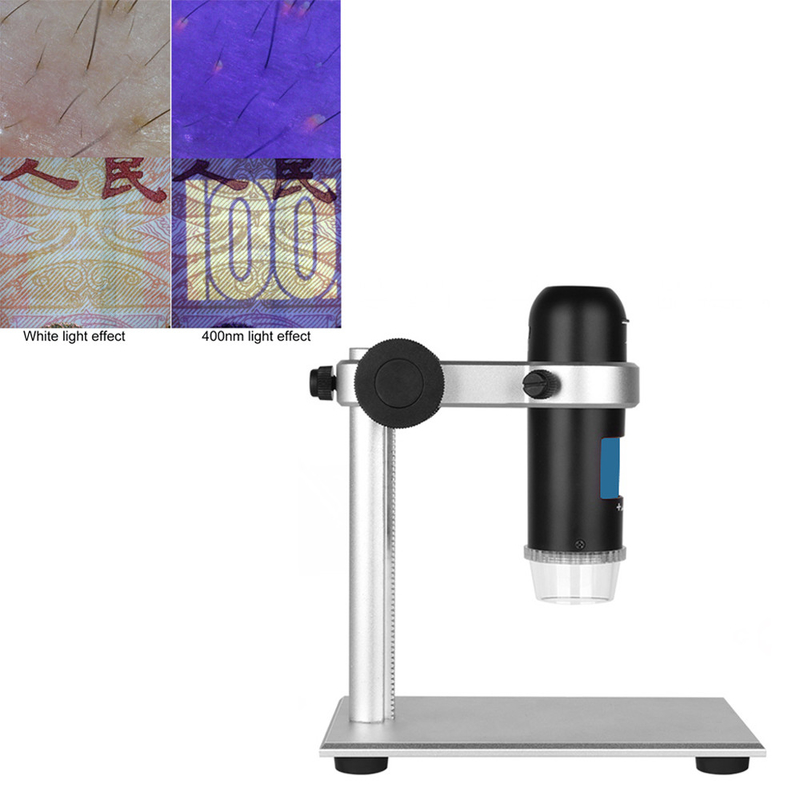

UV USB Digital Dermatoscopy for Hair Follicle Inspection Used in Beauty Salon Hairdresser
Quick Details

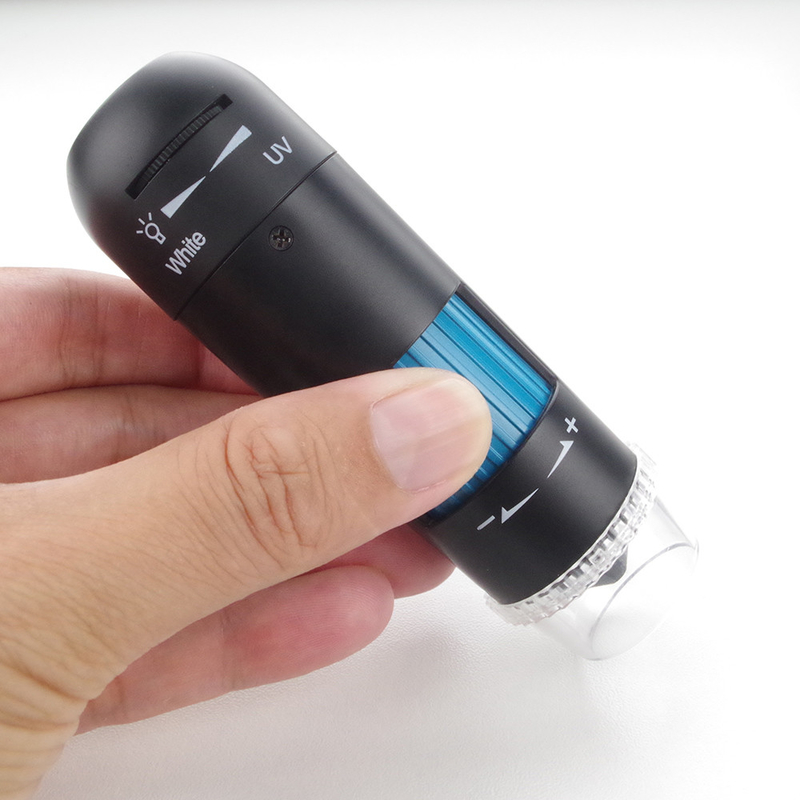

Model DM022D UV Digital Microscope with real 2MP, 10x-200x, 4 white LEDs, 4 UV LEDs light. With wide usage for scientific and medical applications where UV light is required. From white light to UVlight or from UV light to white light, just to turn the LED dimmer and you will get what you want.
The light source of this model is white light+UV light individually, or white light+IR light individually. If there is the requirement of 3 lights(white light+UV light+IR light) together, let us know, we would offer the solution accordingly!
Main Features
* 8 LED(4pcs purple+4pcs white) Build in, with adjustable lightness diammer.
* Max. Frame up to 30fps@2MP, live viewing and recording videos will be super smoothly.
* CMOS sensor type is 1/3" CMOS Image Sensor, with resolution 2M pixels (1920*1080), you can get the clear captures and videos with this sensor type
* Optional resolution is from VGA, 720P, 1080P
* Body dimension: 110x35x25mm
* Connection type: USB 2.0 to PC, compatible with both Apple Macbook Windows Computer
PRODUCT SPECIFICATIONS
|
MODEL |
Model Name |
DM022D(400nm) |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable LED(4pcs UV+4pcs white) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
2M pixels (1920*1080) |
|
|
Fr |
30 fps at 2MP output |
|
FEATURES |
Software |

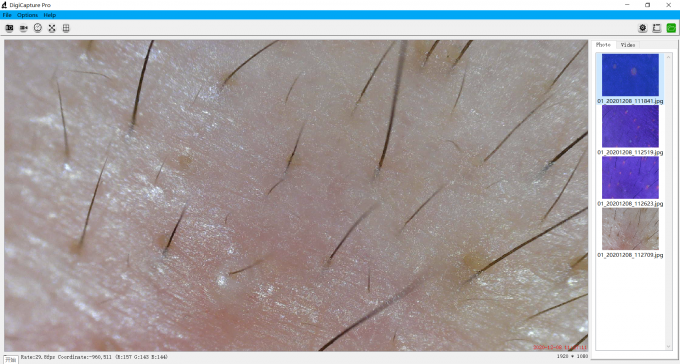

DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
Our R&D team is very experienced in digital dermatoscope, skin analyzer, digital microscope etc., products.
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
