Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM042
Contact Us

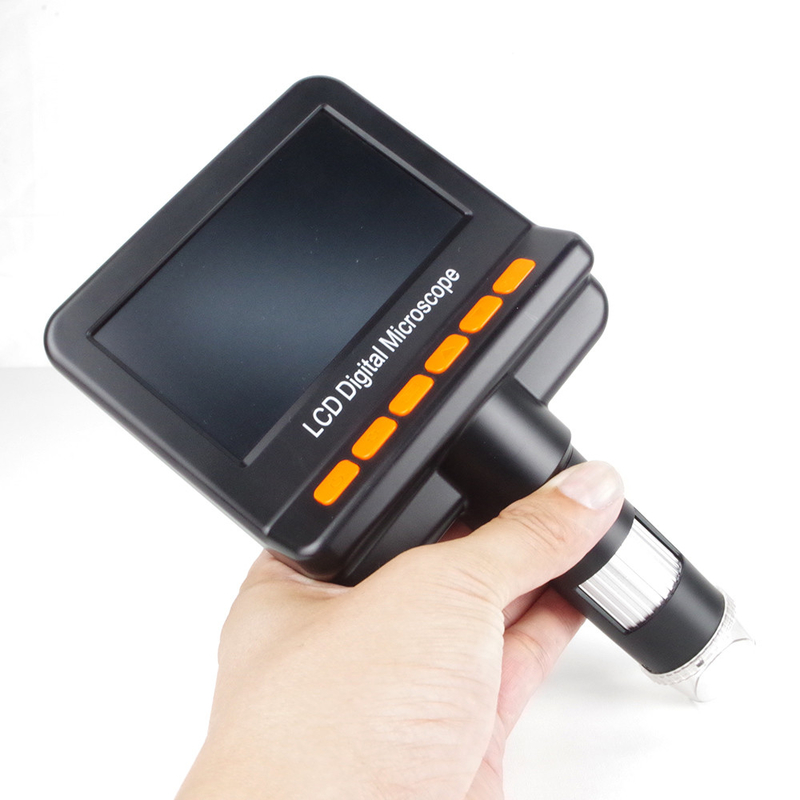

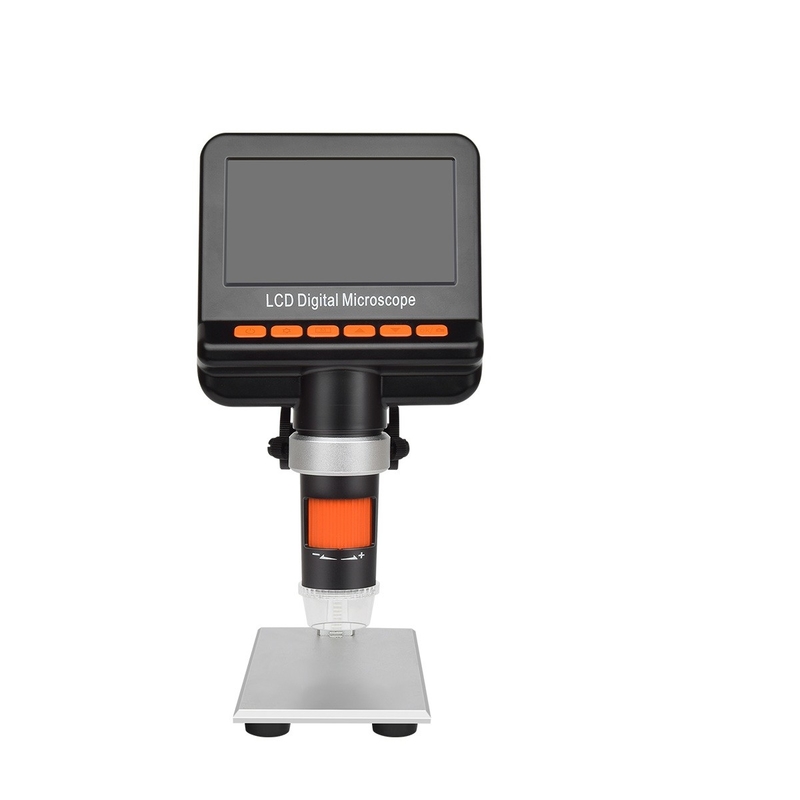

Portable Digital Microscope LCD with 4.3'' Screen Monitor Support HDMI Output to Bigger Monitor
PRODUCT DESCRIPTION
Main Features
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.
* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,
Quick Details
DM042 is the polarizer type LCD digital microscopes that with high resolution and multiple output methods for various applications. It supports for 4 kinds of connection: live viewing, capture, recording by the device itself; through HDMI cable to output live into HDMI monitor; through TV cable to output live into TV monitor; through USB cable connecting to Windows, Mac computes or laptop and do some capture, store images and videos, measurements with attached PC software. The built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM042 |
|
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
Just give us an idea, and we will do the rest for you. All are based on exclusivity term!
Send your inquiry directly to us
