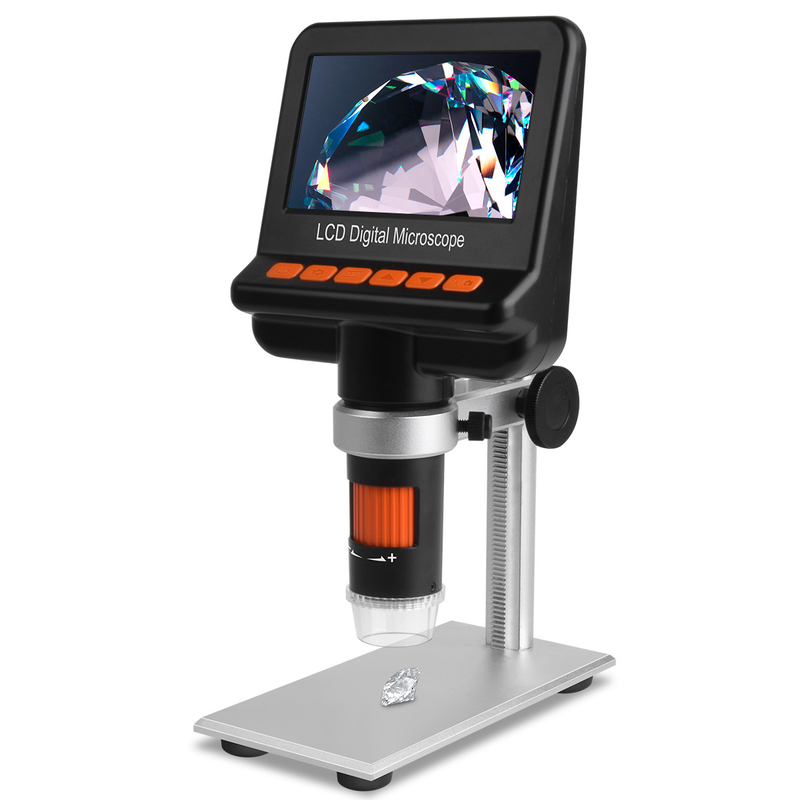

4.3 inch 2MP Portable Hand held LCD Digital Microscope with Polarizing to Anti Reflection
PRODUCT DESCRIPTION
Main Features:
* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface like diamond, jewelry, metal etc.,
* Software/driver can support four screens to work simultaneously.
Quick Details

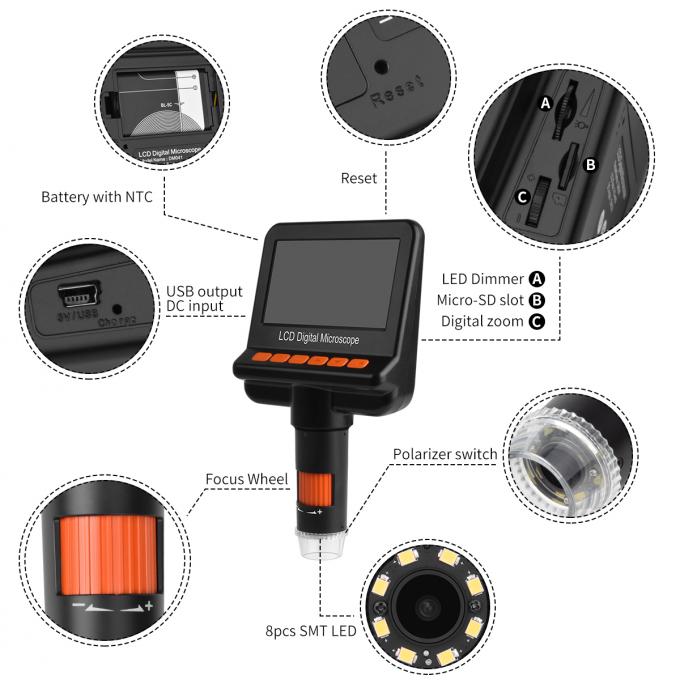

DM041 is the polarizer type LCD digital microscopes, the built-in adjustable polarizer allows to freely remove the unwanted reflection or glare from the object surface for a better contrast. It supports to see the live viewing, capture, recording by the device itself; also supports to connect to Windows, Mac computer or laptop through USB cable, the attached PC software is with powerful functions like measurement, capture, recording video, and support 4 screens/devices working together in the same interface, which makes it easy to compare the objects.
LCD DIGITAL MICROSCOPE SPECIFICATIONS
|
MODEL |
Model Name |
DM041 |
|
|
Connection |
USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~150x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Fr |
25 fps at 2MP output |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
FAQ
Q: What's polarizer feature for digital microscope?
Toproview: This is the new technology in current digital microscope field. This new technology is creatively using the integrated polariscope knob to adjust the light intensity from the digital microscope and external environment, and attempt to reflect, reduce, filtrate the light and make it easy to observe the reflective objects. Like SMD board, diamond, crystal, porcelain, polishing metal etc., will be easy to observed with the help of this function.
