Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM042
Contact Us

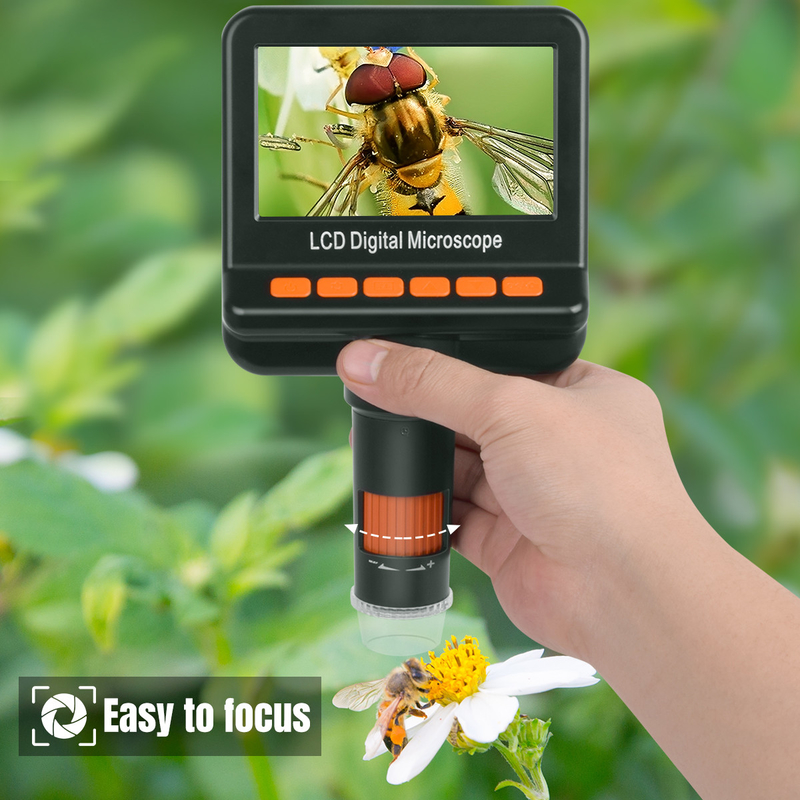

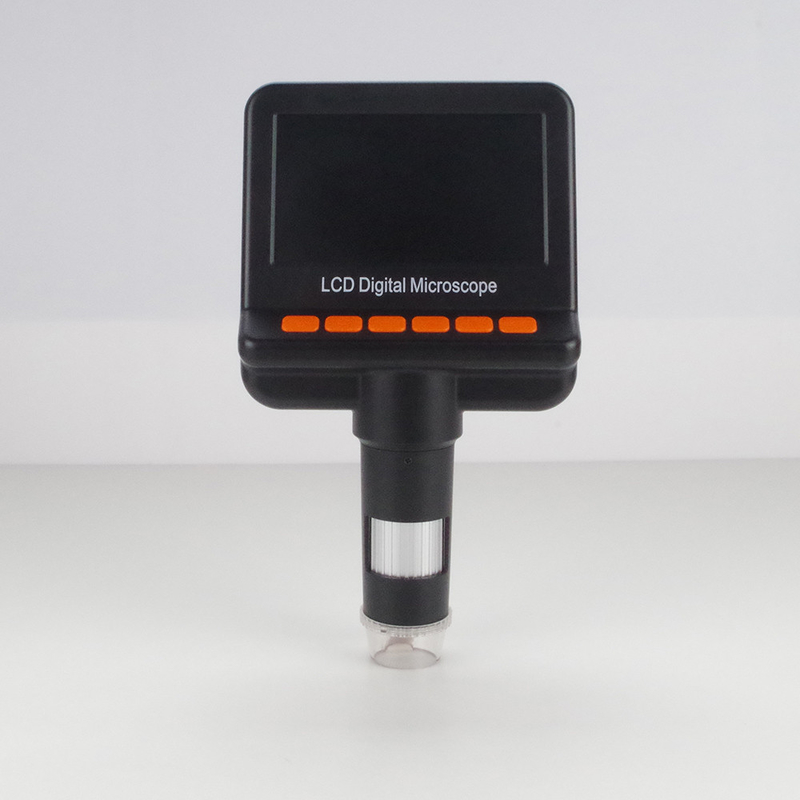

12MP 1200x Hair Scalp Detector with LCD Display 4.3 inch LCD Digital Microscope Dermatoscope
PRODUCT DESCRIPTION
Main Features
* High resolution: real 5MP resolution sensor, and up to 12MP resolution by digital zoom.
* High magnification: real 250x, and up to 1200x by digital zoom.
* Features HDMI output enabling the microscope to be connected with external monitors, giving user the unexpected experience of viewing and photographing.
* Polarizer build in: allows to reduce reflection, very usefual for observing objects with shiny surface and will get the clear capture for the test sample like hair, scalp etc.,
LCD DIGITAL MICROSCOPE SPECIFICATIONS
MODEL |
Model Name |
DM042 |
|
Connection |
USB 2.0 to PC/HDMI port to monitor/TV port to monitor |
OPTICS |
Polarizer |
Yes |
|
Magnification |
Real 10x~250x(ba |
|
Lens type |
Optical glass |
|
Focus range |
Manual focus 0~110mm |
|
Illumination |
8 adjustable white LED |
SENSOR |
Sensor type |
CMOS |
|
Size |
5 megapixel |
|
Resolution |
2590*1944 |
|
Fr |
25 fps at 5MP output; |
FEATURES |
Software |
DigiCapture Pro for |
|
Measurement function |
Yes |
|
Certification |
CE/FCC/RoHS |
PHYSICAL |
Dimensions |
18*34*30cm |
|
Gross weight |
0.2kg |
|
Stand |
Comes with me |
PRODUCT ADVANTAGE
New technology for digital microscope - Polarizer.
Polarized light microscopes can create different polarization configurations that depend on the relative orientation between polarizers: parallel polarization is for polarizers that are oriented parallel to each other, and cross polarization is the configuration for polarizers that are oriented perpendicular to each other. Depending on the polarization configuration and the interaction of incident light with the target, light will be transmitted or blocked. In this case, users can get the clear and without reflection light observation with this Toproview new technology LCD digital microscope. With this polarizer feature for the digital dermatoscope, hair scalp detector, you will get the great selling point for your products in your market.
OEM&ODM Service
OEM/ODM service: Our digital microscope products OEM and ODM service is always ready!
If you want to show your own brand LOGO on the product microscope, product package or software icon, it’s available. Come to us for more details right now!
