Fluorescent Wireless Digital Microscope for Special Usage Cyan Fluorescent Protein Observation

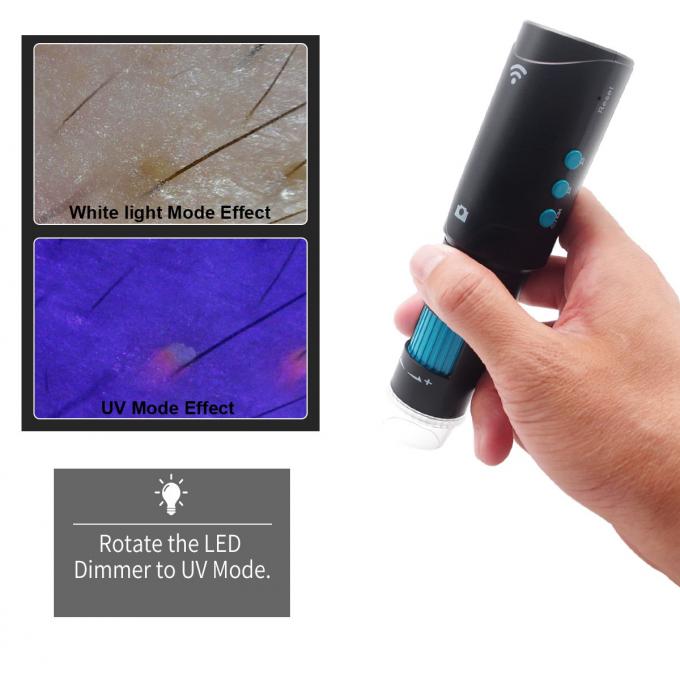

UV WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details
This model can be used to observe the paraffin section of zebrafish and does not require staining, eliminating the standard 7 day waiting period involved in the staining process.
Feature Of Digital Microscope
WIRELESS MEANS MORE - 'Cut the cord' and use a digital microscope in clinics, machine shops, in the field, under the hood, or anywhere your work takes you.
* With capture microtouch on microscope, different from the traditional capture press button for other wireless digital microscope in the market, this model allows user to take capture by touch the “microtouch” to avoid the fuzzy captures by trembling.
* With recording button on microscope, allows to check the playback recording video on both smart devices APP and computer software.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATION
1. beauty salons
2. beauty chain agencies, cosmetics distribution sales
3. beauty products distribution sales, skin care products distribution sales
4. health products distribution sales
5. personal and family self-test and so on!
