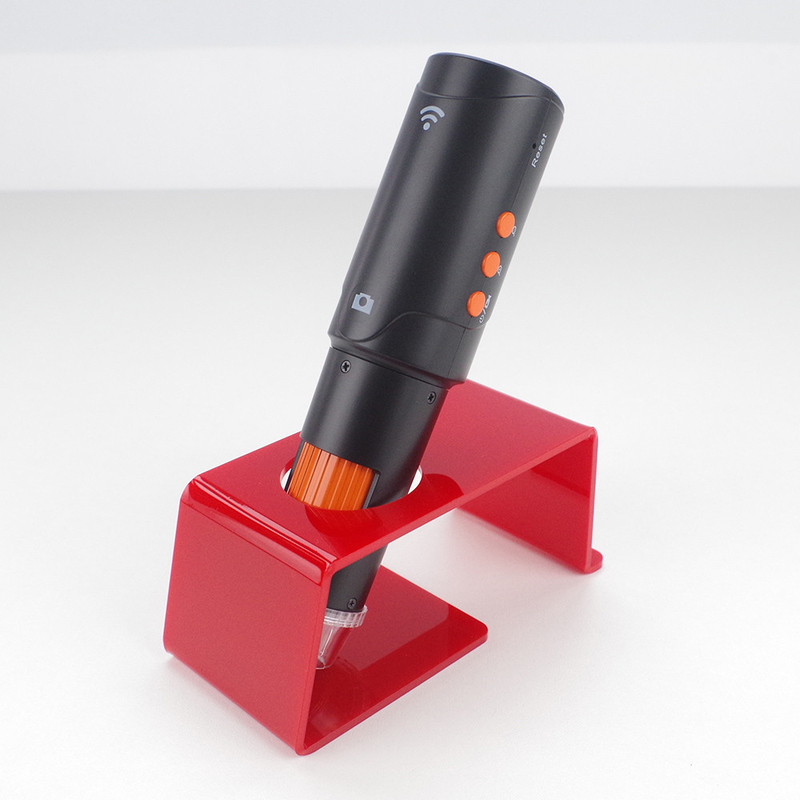

UV Wireless Digital Microscope to See Hair Follicle and Pigment Precipitates
UV WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details
2022 New released UV Wirelss Digital Microscopes are with UV light sources, which works well for skin analyzer, dermatoscope doctor, hair and scalp inspection.
MAIN FEATURES
* 8 LED build in, 4pcs white LED and 4pcs purple LED, output with dimmable LED ring illuminator.
* With Microtouch to get the capturing without fuzzy and trembling.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATION
Perfect for medical, visual assistance, textile industrial for textile inspection, printing inspection, industrial inspection.
(PCB, precision machinery), education purpose, skin and hair examination, microbiological observation, jewelry and coin (collections) inspection, etc.
Meet various industrial demands such as skin inspection, insect observation, circuit testing, gem identification, etc.
DM023B UV Wireless Digital Microscope with wide application field: Skin dermatoscope hair scalp trichology crime investigations research and scientific analysis education forensics graphology mineralogy etc.,
