Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM022C
Contact Us
Polarizing Portable Digital Microscope with High Resolution 5MP Sensor
Quick Details

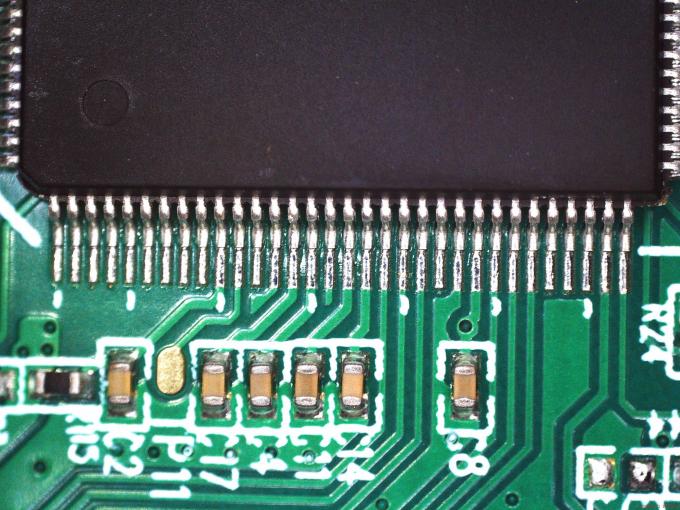

Its 5M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
With this unit you may see a unique & “bigger” world. All those excellent features make it a good aid for your daily inspection on tiny objects.

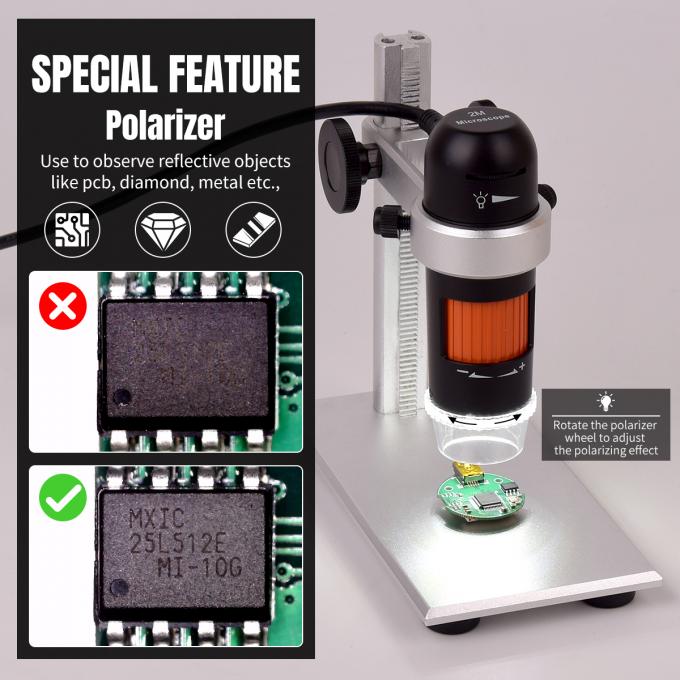

With polarizer to reduct the reflection, useful for observing objects with shiny surface like metak, diamond, jewelry etc.,
Main Features
With Measurement function
PC Software support four display concurrently
Compatible with Windows and Mac
* PC Software supports four living windows concurrently, user with special applications can support to use 4 microscope seeing the living at the same time.
* Photo and video resolution are optional from 5MP, 4MP, 3MP, 2MP, 1.3MP.
* With capture microtouch on microscope, different from the traditional capture press button for other wireless digital microscope in the market, this model allows user to take capture by touch the “microtouch” to avoid the fuzzy captures by trembling.
* With recording button on microscope, allows to check the playback recording video on both smart devices APP and computer software.
PRODUCT SPECIFICATION
|
MODEL |
Model Name |
DM022C |
|
|
Connection |
USB 2.0 |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~250x(ba |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
5 megapixel |
|
|
Resolution |
2590*1944 |
|
|
Fr |
25 fps at 5MP output; |
|
FEATURES |
Software |
DigiCapture Pro for |
|
|
Measurement function |
Yes |
|
|
Certification |
CE/FCC/RoHS |
|
PHYSICAL |
Dimensions |
18*34*30cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Comes with me |
PACKING METHOD
Neutral product with colorful giftbox, 16pcs per carton.
According to export standard packing.
Packing way with customization availble.
