2 Million Pixels Wireless Digital Microscope 25fps Handheld Usb Microscope

2 Million Pixels Wireless Digital Microscope 25fps Handheld Usb Microscope

Wireless Digital Microscope 25fp

2 Million Pixels Wireless Digital Microscope

25fps Handheld Usb Microscope

Place of Origin:

Shenzhen , China

Brand Name:

Neutral / Customization

Certification:

CE/FCC/RoHS

Model Number:

DM023A

Contact Us

Request A Quote
Product Details
Model Name:
DM023A
Polarizer:
Yes
Magnification:
10x~200x
Frame:
25fps@2MP
Connection:
WiFi / USB 2.0
Warranty:
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Neutral / Customization Giftbox / 20pcs per carton
Delivery Time
6~36 working days
Payment Terms
L/C, T/T, Western Union, D/A, D/P
Supply Ability
60000pcs/month
Product Description

2 Million Pixels High Magnifications Wireless Digital Microscope Capture Microtouch Microscope



1: Newest Innovative Technology and Design !

2: Switchable polarizer, easy to observe reflective objects like SMD board, diamond, metal etc.,



Product Specification:

Model Model Name DM023A
Features Connection WiFi to Smart Devices / USB 2.0 to PC
Image Sensor 2 Megapixel CMOS
Photo And Video Resolution 1920*1088/1280*720/864*480
Magnification Ratio Real 10x~200x(Based On 24 inch Display)
Max.Frame Rate 25 fps at 2MP Output
Light Source 8Pcs SMT White LED
LED Brightness Adjustable Yes
Focus Range From 0mm to 110mm
Lens Type Optical Glass
Advantage Switchable Polarizer Yes
Capture Microtouch On Microscope Yes
Recording Button On Microscope Yes
Digital Zoom Button On Microscope Yes
Rechargeable And Replaceable Battery 2000mAh 18650 Lithium-Ion
Battery Working Time Continue working for 2.5 hours
Charging Time 2.5hrs (When WiFi Digital Microscope Power Off)
SD Card Slot Support SD Card Storage Up To 32G (Not Included In The Neutral Package)
Warranty 1 Year
Software APP for Smart Devices Topscope Pro (Customizable)

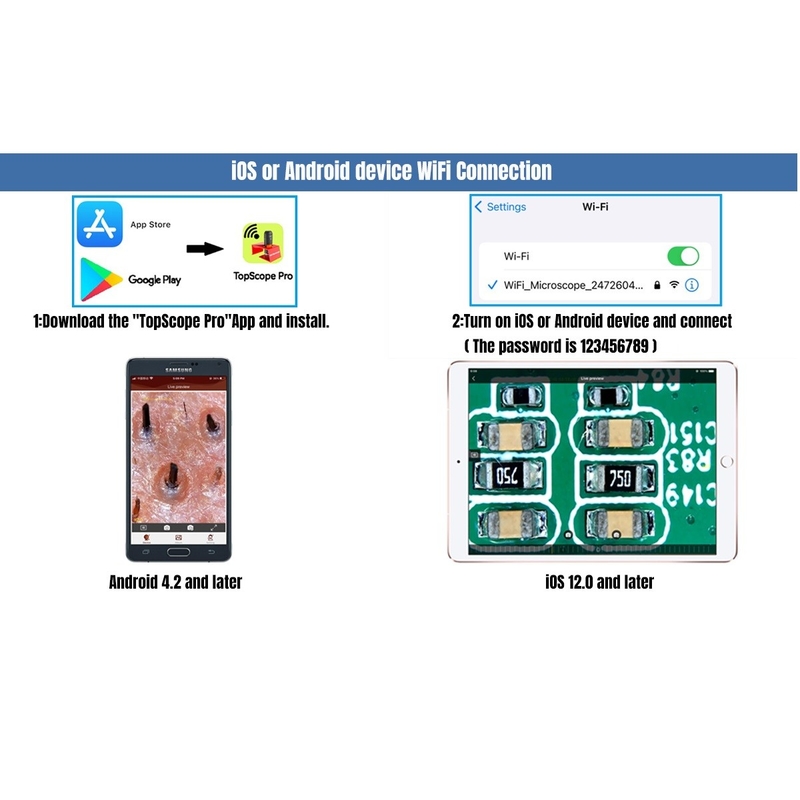

APP Supported Operation Systems iOS 12.0 or later, Android 4.2 or later
PC Software DigiCapture Pro (Customizable)
PC Software Supported Operation Systems Windows 7/8/10 , macOS 11.2.1 or above
PC Software OSD Language There Are 16 Languages Built In The Software
PC Software With Professional Measurement Yes

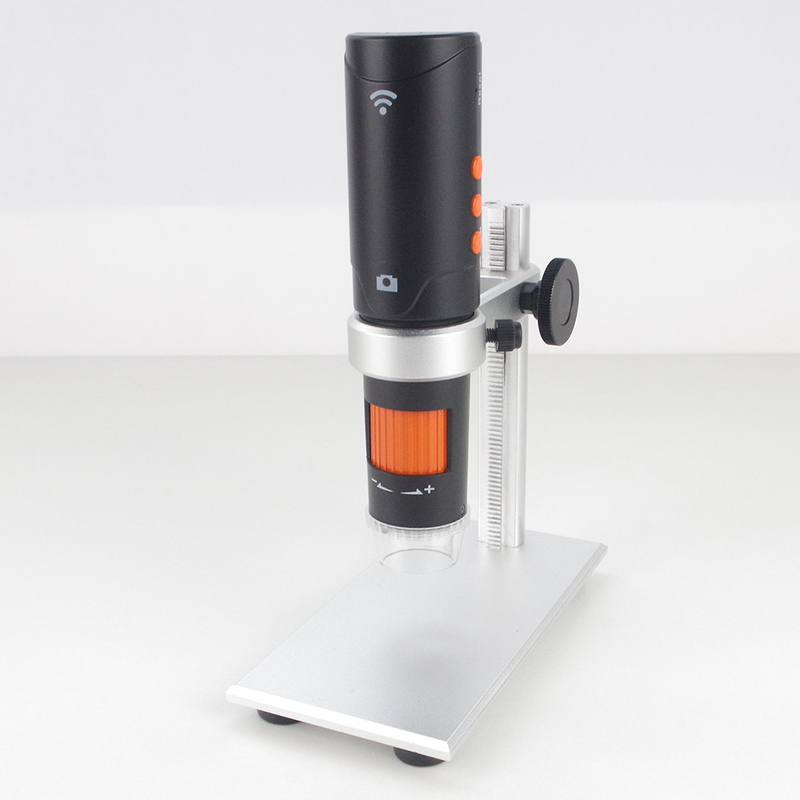

Package details Accessories CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide
Carton Box 54.2*37*42cm
Gross Weight 14.5KG
Carton 20Pcs



Product Advantages:

1: The microscope can be used anytime, anywhere by connecting to smart devices through WiFi, which is very suitable for researchers.

2: The digital microscope with polarizer built in is beneficial to watch / clock repair.



Note:

1: For first time using this product, please install the battery and get it charged through USB port, or the battery will not be actived and microscope coud not be turned on.



Product picture:

2 Million Pixels Wireless Digital Microscope 25fps Handheld Usb Microscope 0

2 Million Pixels Wireless Digital Microscope 25fps Handheld Usb Microscope 1



FAQ:

1:who are we?

We are based in Shenzhen,Guangdong, China, start from 2015.Toproview Technology Co., Ltd is a professional company that dedicated to development, manufacture and marketing of Digital Microscope.
