Place of Origin:
Shenzhen , China
Brand Name:
Neutral / Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023A
Contact Us
Video
Adjustable Magnification Video Microscope Wireless Digital Microscope For PCB Repai
1: Wireless digital microscope support to output through WiFi and USB port with high resolution true 2MP and polarizer built in.
2: APP for smart devices support customization.
Product Specification:
| Model | Model Name | DM023A |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088/1280*720/864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Advantage | Switchable Polarizer | Yes |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Product Advantages:
1:This WiFi microscope support digital zoom button on microscope easy to operate for stamp collections.
2: This microscope is easy to carry for kids education testing.
Note:
1: It's also supported to work without TF card, captured photo and recording video will be saved into APP directly, and the playback video will be more smooth in this case.

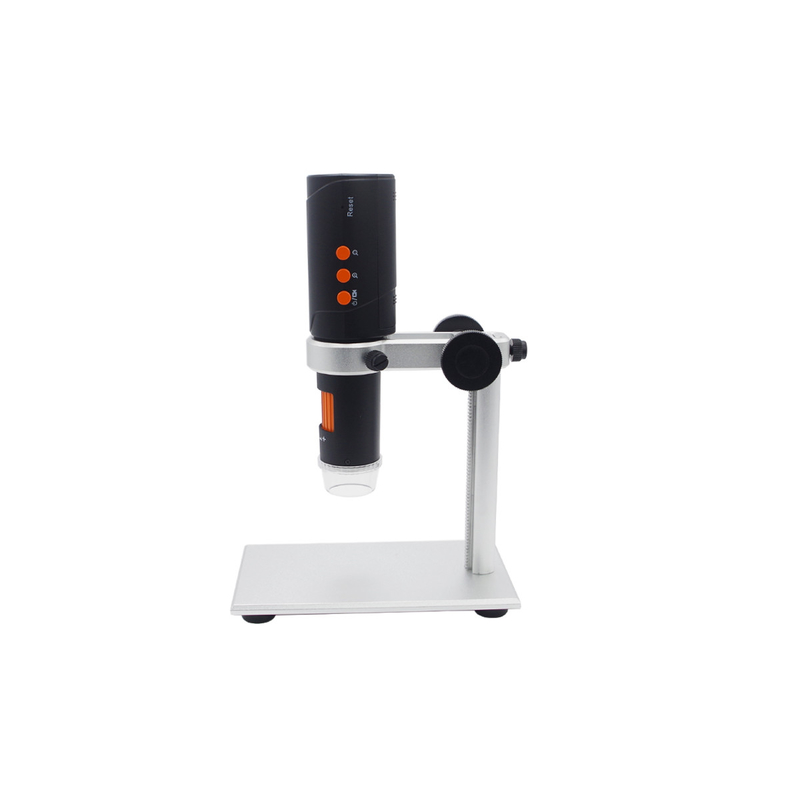

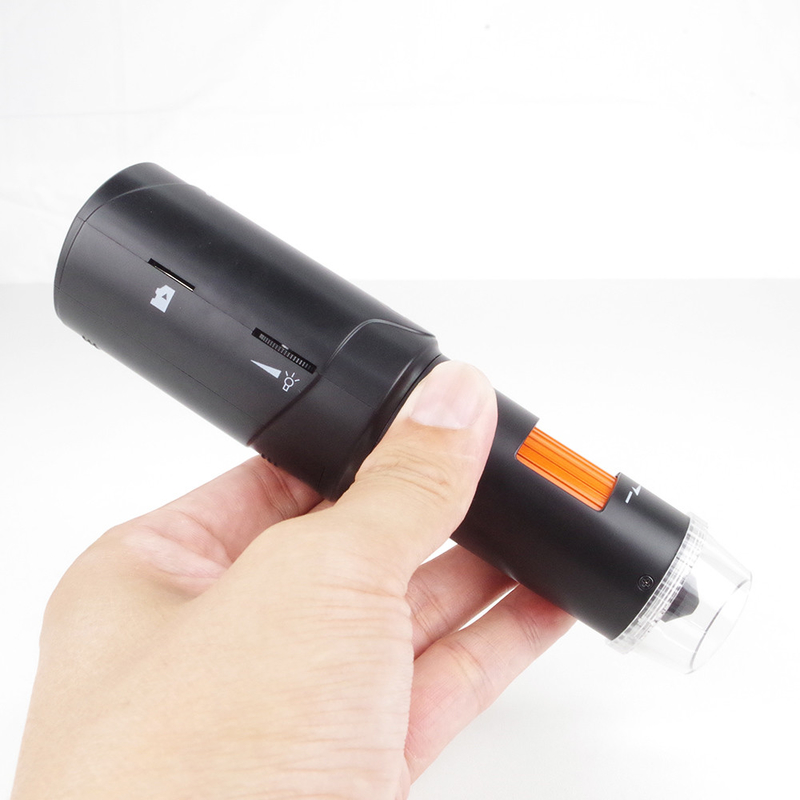

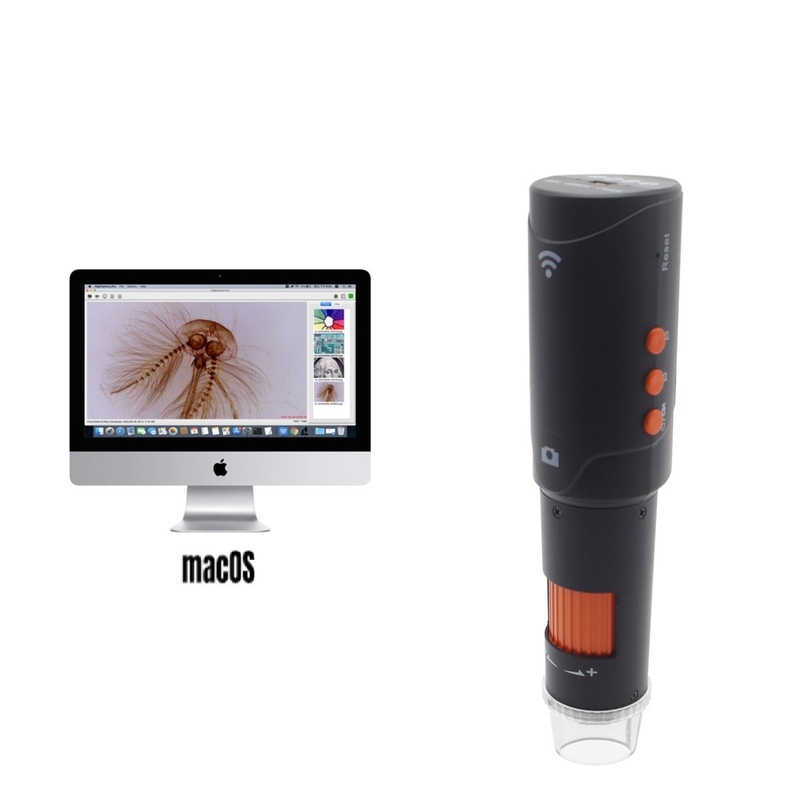

Product picture:
