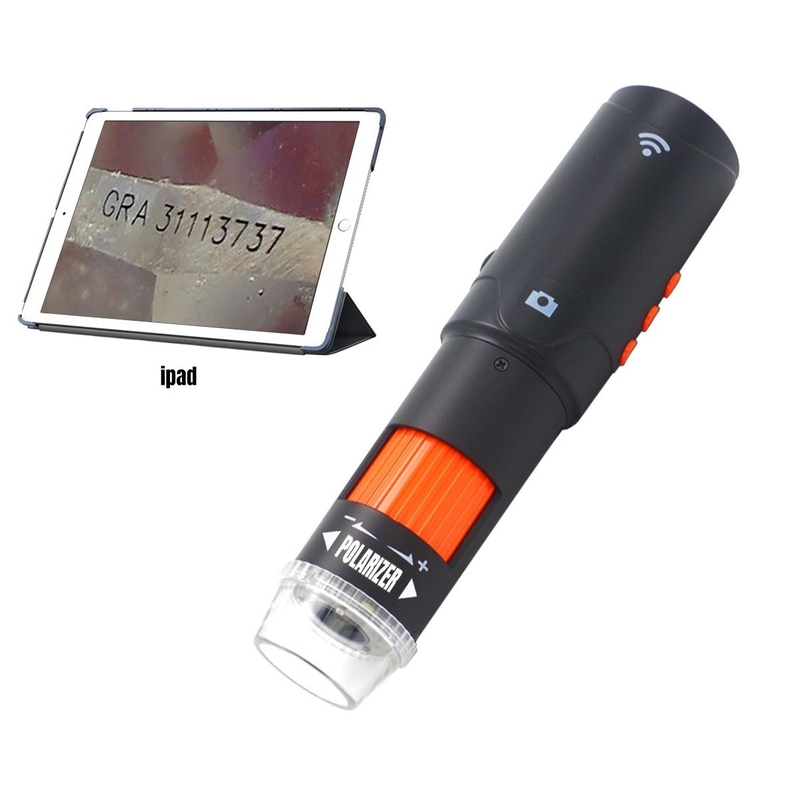

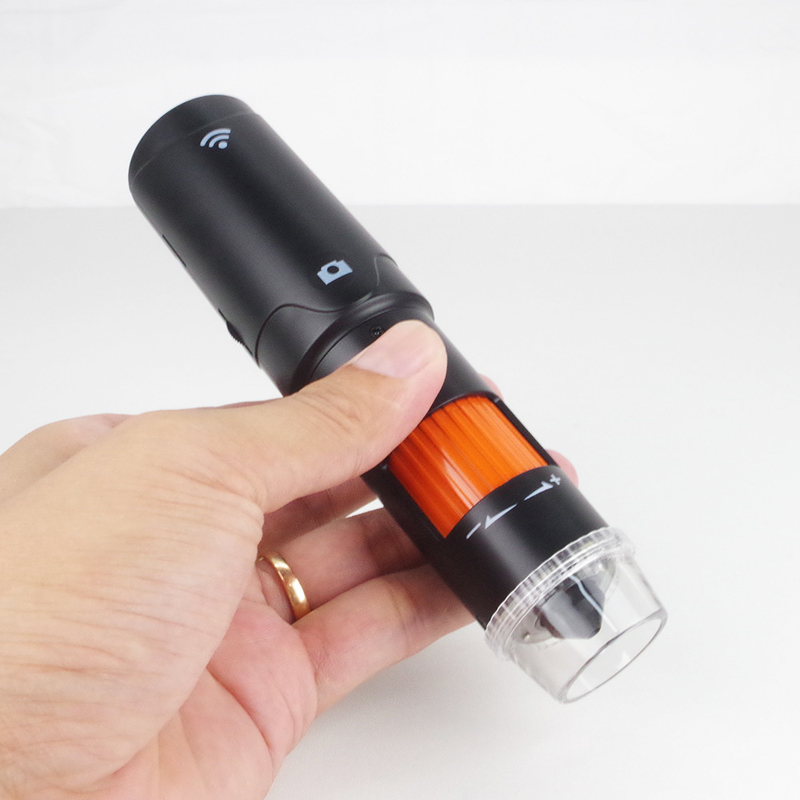

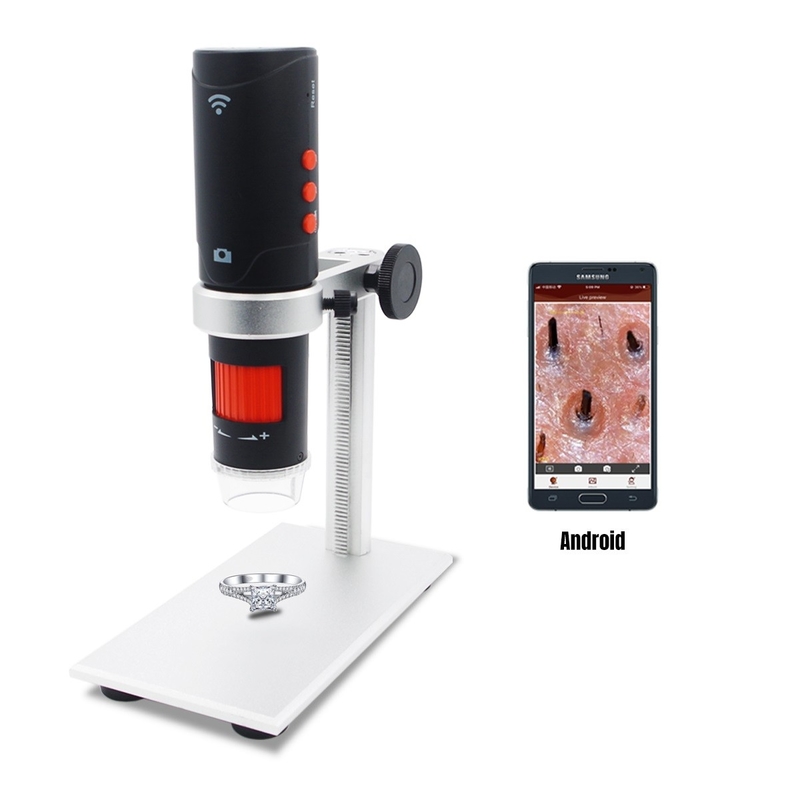

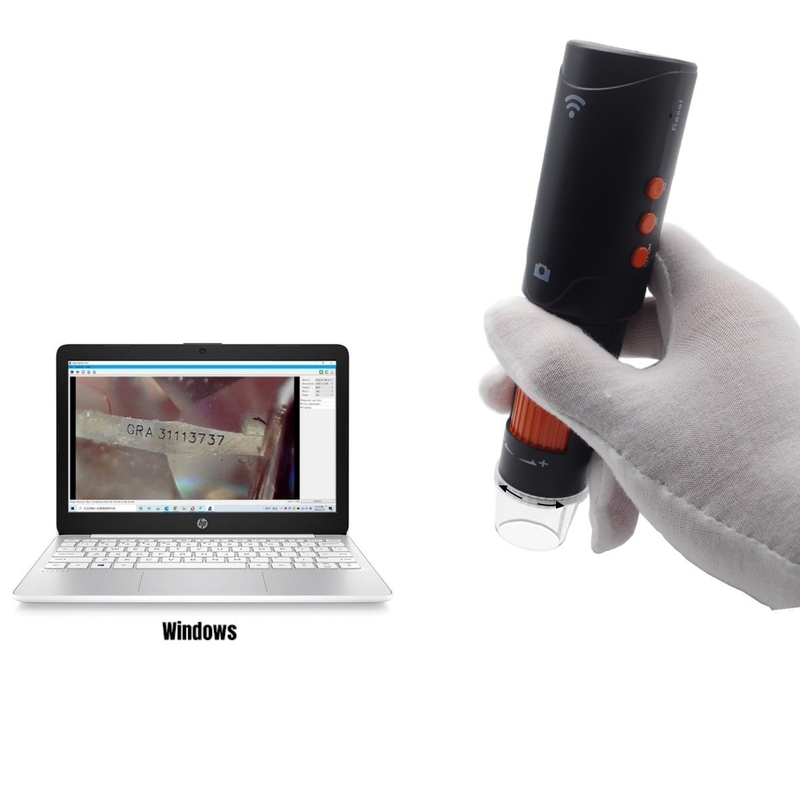

Android Smart Devices Hair Microscope Wireless Digital Microscope For Dermatology Skin Inspection
1: WiFi digital microscopes with replaceable battery and battery holder, it will allow the longer service life than the other wireless microscope in current market.
2: The innovative capture "microtouch" on camera body will make it easy to take the capture with any shaking blur.
Product Specification:
| Model | Model Name | DM023A |
| Features | Connection | WiFi to Smart Devices / USB 2.0 to PC |
| Image Sensor | 2 Megapixel CMOS | |
| Photo And Video Resolution | 1920*1088/1280*720/864*480 | |
| Magnification Ratio | Real 10x~200x(Based On 24 inch Display) | |
| Max.Frame Rate | 25 fps at 2MP Output | |
| LED Brightness Adjustable | Yes | |
| Focus Range | From 0mm to 110mm | |
| Lens Type | Optical Glass | |
| Customized Support | OEM / ODM / OBM | |
| Certification | CE / FCC / RoHS | |
| Advantage | Switchable Polarizer | Yes |
| Capture Microtouch On Microscope | Yes | |
| Recording Button On Microscope | Yes | |
| Digital Zoom Button On Microscope | Yes | |
| Rechargeable And Replaceable Battery | 2000mAh 18650 Lithium-Ion | |
| Battery Working Time | Continue working for 2.5 hours | |
| Charging Time | 2.5hrs (When WiFi Digital Microscope Power Off) | |
| SD Card Slot | Support SD Card Storage Up To 32G (Not Included In The Neutral Package) | |
| Warranty | 1 Year | |
| Software | APP for Smart Devices | Topscope Pro (Customizable) |
| APP Supported Operation Systems | iOS 12.0 or later, Android 4.2 or later | |
| APP Supported Photo And Video Recording | Yes | |
| APP Supported Battery Capacity Display | Yes | |
| PC Software | DigiCapture Pro (Customizable) | |
| PC Software Supported Operation Systems | Windows 7/8/10 , macOS 11.2.1 or above | |
| PC Software OSD Language | There Are 16 Languages Built In The Software | |
| PC Software With Professional Measurement | Yes | |
| PC Software Support Plug and Play | Yes | |
| Package details | Accessories | CD, USB cable,replaceable battery,calibration ruler,metal stand,Quick Start Guide |
| Carton Box | 54.2*37*42cm | |
| Gross Weight | 14.5KG | |
| Carton | 20Pcs |
Product Advantages:
1:The wifi microscope has replaceable battery suitable for outdoor users insect and plant observation.
2: This electronic microscope can zoom continuously , It makes for a very useful tool to textile industry.
Note:
1: For first time using this product, please install the battery and get it charged through USB port, or the battery will not be actived and microscope coud not be turned on and "Capture microtouch","Recording","Digital zoom in or out" function keys only work in WIFI connection situations.
Product picture:

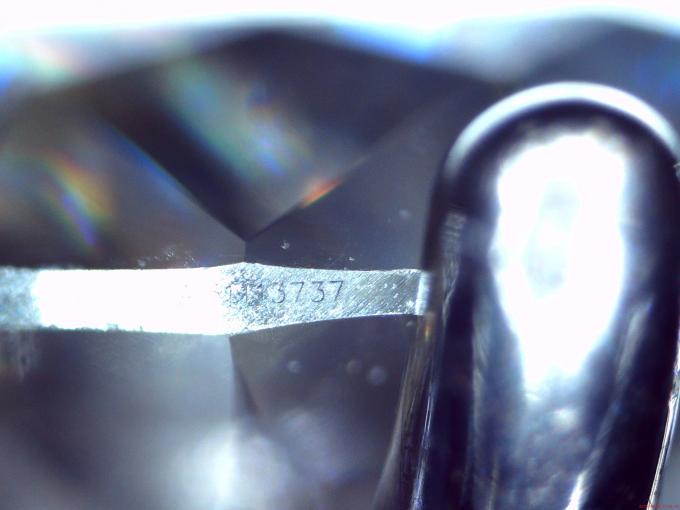

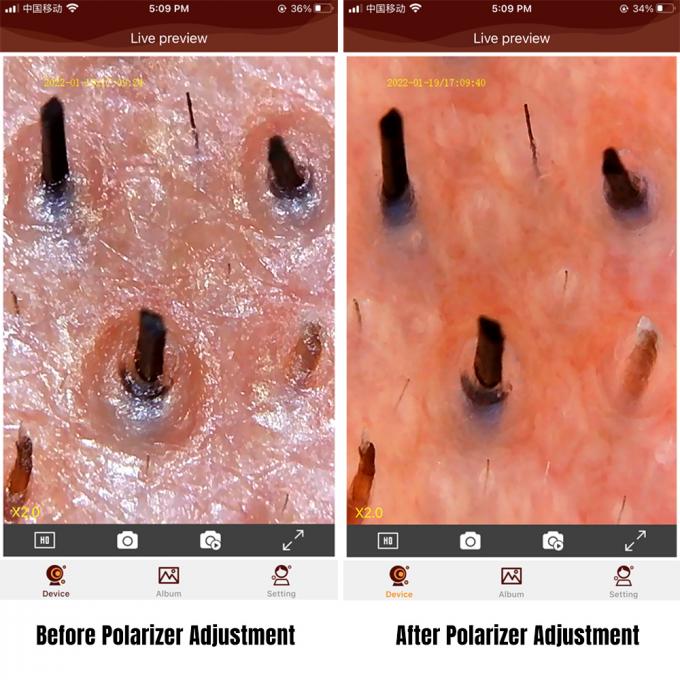

Before Polarizer Adjustment

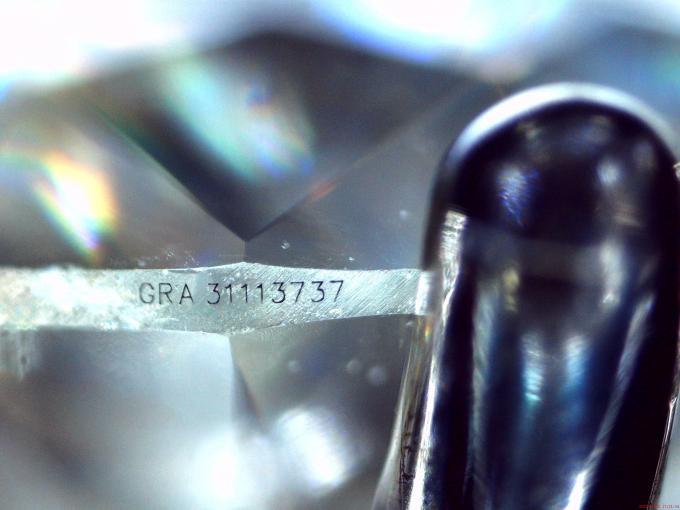

After Polarizer Adjustment

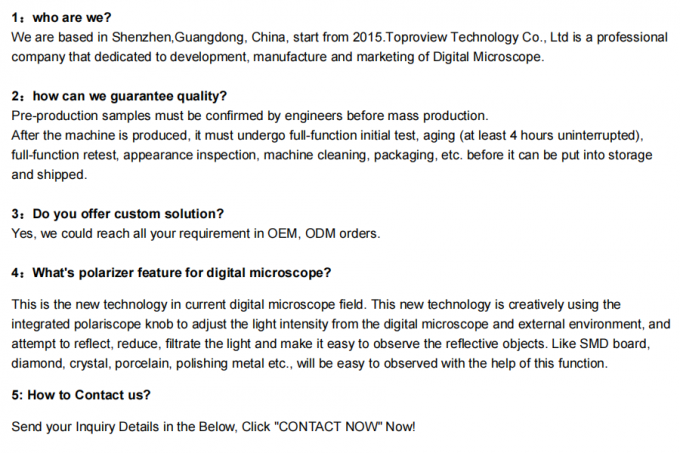

FAQ:
