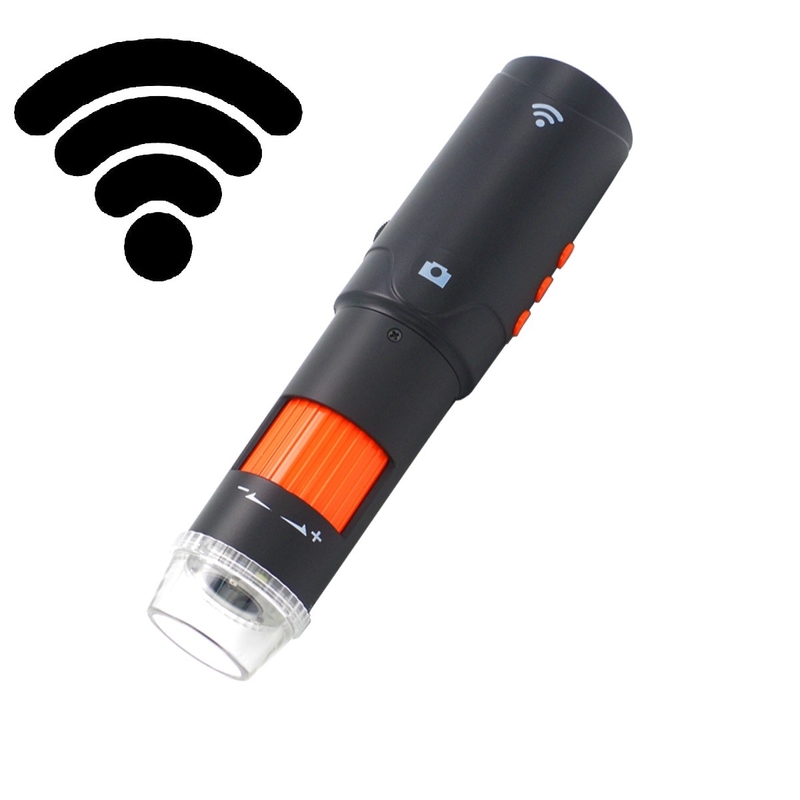

Wireless Microscope for iPhone Connection WiFi with Capture Micrtouch Button
WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details
Model DM023A is the new realeased product by Toproview in 2022. This model is with real 2MP resolution, real 200x magnification, both the resolution and magnification are the real specification, not the interpolation which is wide used for other products in current market. Main fetrues: polarizer build in, support take photo and video by touch or press on microscope.
Main Features
With polarizer to filter the reflection on objection’s surface.
* Image and video resolution: 1920x1088/1280x720/864x480.
WIRELESS DIGITAL MICROSCOPE SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |

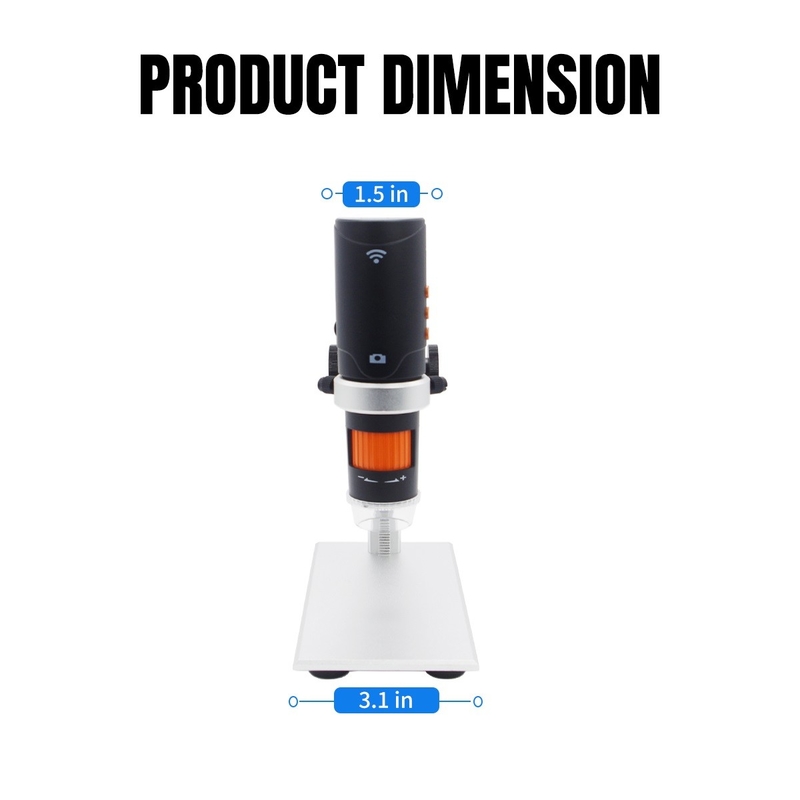

Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
PRODUCT ADVANTAGE
The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.
WIRELESS DIGITAL MICROSCOPE APPLICATION
Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,
