Place of Origin:
China
Brand Name:
Toproview/Neutral/Customization
Certification:
CE/FCC/RoHS
Model Number:
DM023B
Contact Us
Video

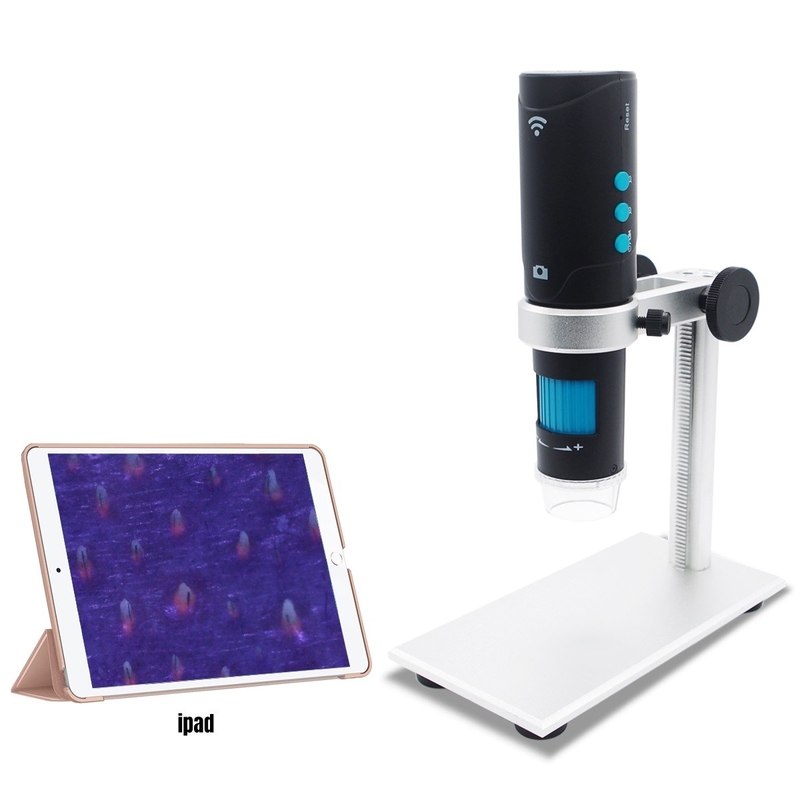

Fluorescent Wireless Digital Microscope for Special Usage Cyan Fluorescent Protein Observation
UV WIRELESS DIGITAL MICROSCOPE DESCRIPTION
Quick Details
This model can be used to observe the paraffin section of zebrafish and does not require staining, eliminating the standard 7 day waiting period involved in the staining process.
MAIN FEATURES
* 8 LED build in, 4pcs white LED and 4pcs purple LED, output with dimmable LED ring illuminator.
* With UV light especially useful for skin, hair and scalp analyzer.
SPECIFICATION
|
MODEL |
Model Name |
DM023B |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
UV light |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable LEDs(white + purple) |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes with recording button on microscope |
|
|
Recording by microscope |
Yes with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|

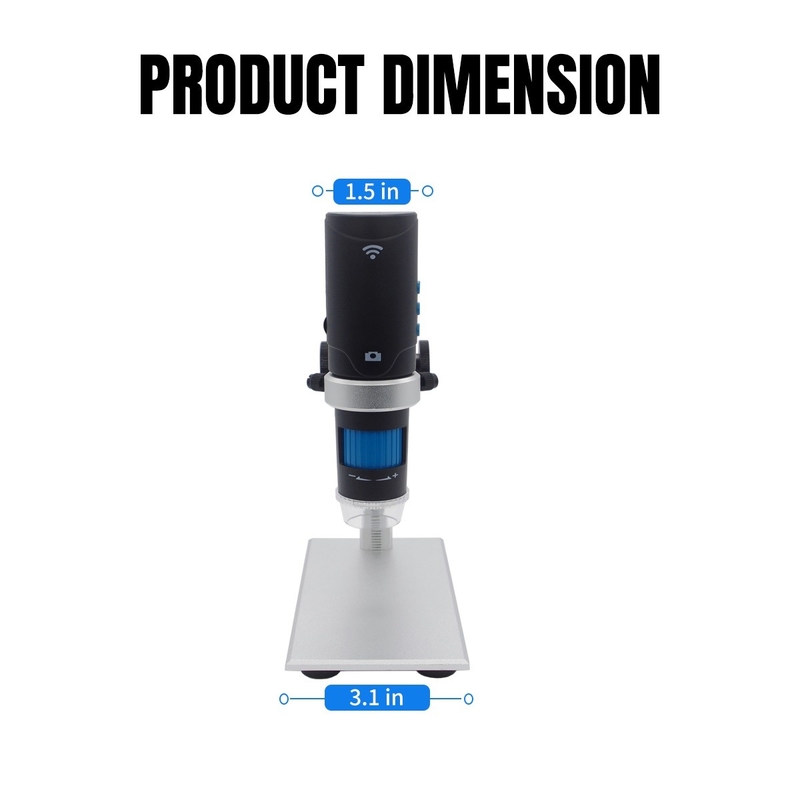

PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
me |
APPLICATION
This model can be used in beauty salons, beauty chain agencies, cosmetics distribution sales, beauty products distribution sales, skin care products distribution sales, health products distribution sales, personal and family self-test and so on! Choosing a suitable cosmetic skin analyzer can improve the scientific basis of analysis, the quality of service and the efficiency of work, giving consumers a better experience.
