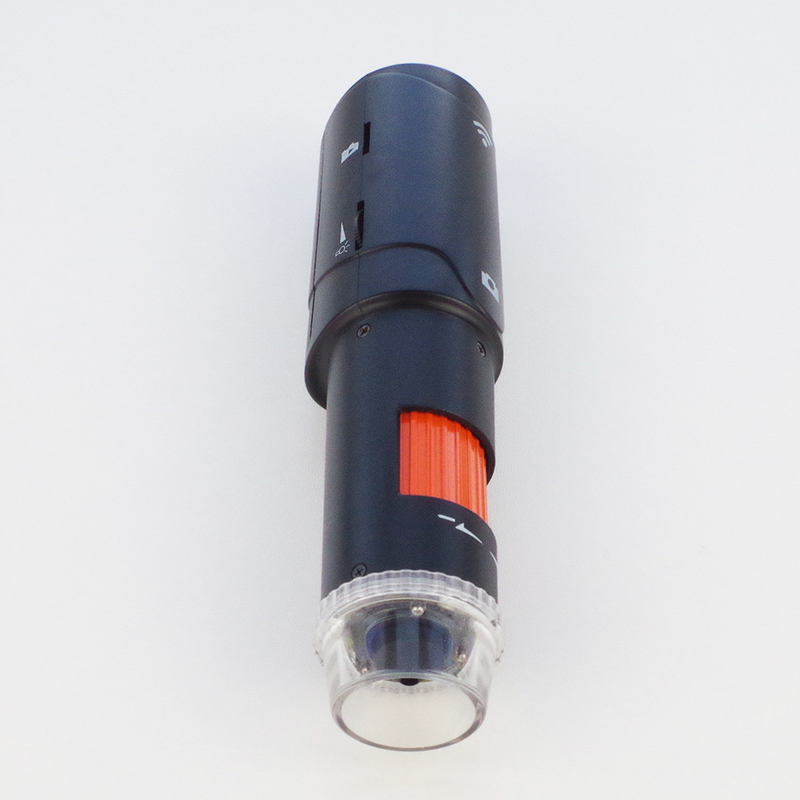

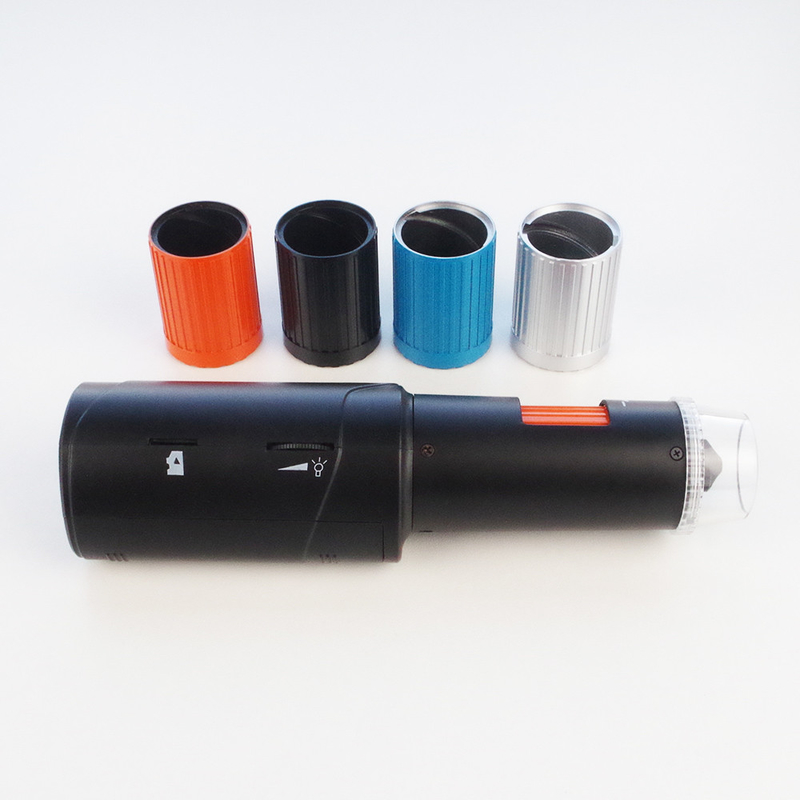

Digital Microscope with Polarizing Filter by Toproview DM023A
All of Toproview digital microscopes are built-in adjustable polarizer, allows to freely remove the unwanted reflection or glare from the object surface for a better contrast.
We support to offer no matter neutral products, OEM products or ODM services, come to us with your requirement and we will offer what you need!
PRODUCT ADVANTAGE
* The MicroTouch feature is a touch sensitive trigger area on the body of the microscope that can be used to trigger an image capture. Different from the old and traditional way, we use the “touch” technology instead of “press” button to avoid the vague captures by hand shaking.
* Microscopes with polarizers are a crucial tool to modulate light and use it to study materials in many different ways. Toproview polarizing digital microscopes have been designed to reduce glare, view subsurface layers, and improve image contrast.
* New technology for USB digital microscope - microscope with polarizer. When used with the polarizer, users are able to detect mechanical stress, as well as identify optically anisotropic materials. Toproview polarizing microscopes are used in a wide range of fields, including forensics, manufacturing, health, mineralogy, research, and biology.
SPECIFICATION
|
MODEL |
Model Name |
DM023A |
|
|
Connection |
WiFi to smart devices; USB 2.0 to PC |
|
OPTICS |
Polarizer |
Yes |
|
|
Magnification |
Real 10x~200x |
|
|
Lens type |
Optical glass |
|
|
Focus range |
Manual focus 0~110mm(with stand) |
|
|
Illumination |
8 adjustable white LED |
|
SENSOR |
Sensor type |
CMOS |
|
|
Size |
2 megapixel |
|
|
Resolution |
1920*1080 |
|
|
Max.Fr |
25 fps at 2MP output |
|
FEATURES |
APP |
TopScope Pro for iOS/Android (customizable) |
|
|
Software |
DigiCapture Pro for Windows/MacOS (customizable) |
|
|
Measurement function(PC Software) |
Yes |
|
|
Supported operation systems |
iOS 12.0 or later, Android 4.2 or later |
|
|
Supported operation systems |
Windows 7/8/10,macOS 11.2.1 or above |
|
|
Capturing by microscope |
Yes, with recording button on microscope |
|
|
Recording by microscope |
Yes, with digital zoom button on microscope |
|
|
Certification |
CE/FCC/RoHS |
|
REPLACEABLE BATTERY |
18650 Lithium-Ion Battery |
2000mAh rechargeable and replaceable |
|
|
Battery working time |
Continue working for 2.5 hours |
|
|
Charging time |
2.5hrs (when WiFi Digital Microscope power off) |
|
PHYSICAL |
Body dimensions |
16.6*4.5*4.0cm |
|
|
Gross weight |
0.2kg |
|
|
Stand |
Metal stand for neutral product; support to customize |
FAQ
Q: Can you accept OEM or ODM?
A: Yes, OEMand ODM are welcome. We have the fully ability to customize any design, shape and size as per customer’s specific requirements.
Q: What certificate do you have?
A: For all products we supply CE, FCC, RoHs.
Q: Warranty
A: Usually 1 year, we offer after sale service no matther how long.
APPLICATION
Wide application field: Industrial and electronic inspectin, Skin Dermatoscope, Hair Scalp Trichology, Research and scientific analysis, Education forensics, Textile inspection, Print inspection, Collectibles, Jewelry and watch repair etc.,
